THOMSON TSC 900 User Manual

TSC 900 TRANSFER SWITCH CONTROLLER
PM 151 REV 5 16/04/19 Thomson Power Systems
27
3.5.2. UTILITY METERING PAGE

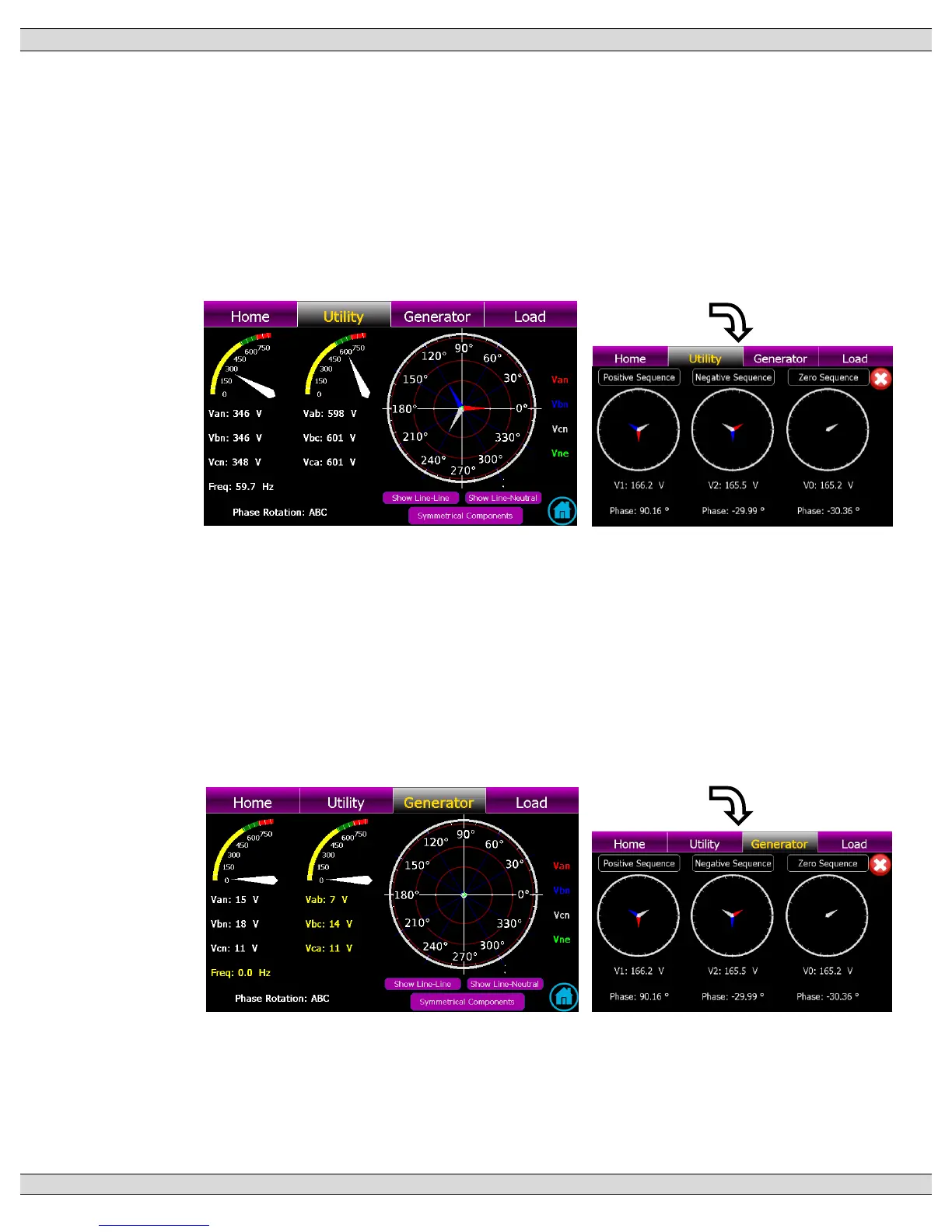

The utility metering page provides detailed voltage and frequency metering data for the
utility supply. Metering data is displayed in both text and graphical representation. Phase
to phase and phase to neutral voltages are displayed as well as a Phasor diagram
showing relative phase angles and magnitudes between phases. A shortcut button is
provided to access the Utility Symmetrical components information screen as follows:
3.5.3. GENERATOR METERING PAGE
The generator metering page provides detailed voltage and frequency metering data for
the generator supply. Metering data is displayed in both text and graphical
representation. Phase to phase and phase to neutral voltages are displayed as well as
a Phasor diagram showing relative phase angles and magnitudes between phases. A
shortcut button is provided to access the Generator Symmetrical components
information as shown for Utility Metering.
