THOMSON TSC 900 User Manual
4
of 1
of 1 rating
121 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
TSC 900 TRANSF
ER SWITCH CONTRO
LLER
PM 151 REV 5 16/04/19
Thomson Power Systems
16

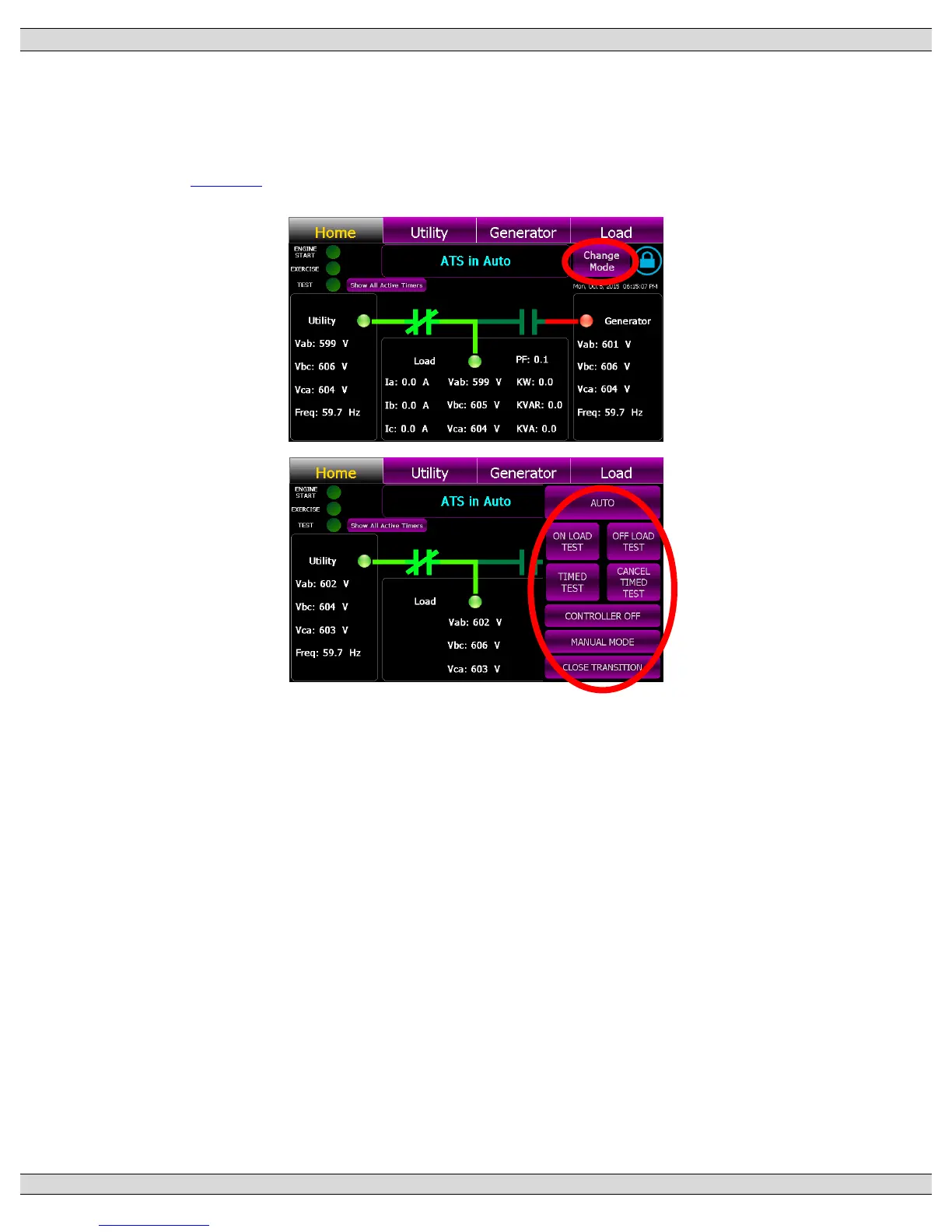

Operating modes
for the ATS
are selected either
via the TSC 900 GHC
Home page screen
(using
the “
Change Mode
” bu
t
ton
) as shown on the scre
en images below or can be selected via ex
t
erna
l
control swi
tches as optionally
connected to the
TSC 900 Program
mable inputs.
Refer to
Section 4
-
Operating Ins
tructions
for further in
formation.
23
25
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
9
Product Revision History
9
General Description
10
2 Installation
10
General Information
11
Notes to Installer
11
Tsc 900 Ghc Mounting
12
Ac Voltage Sensing Input
13
Ac Current Sensing Input
15
Ac Control Power Input
16
Auxiliary DC Control Power Input
16
Programmable Inputs
16
Outputs
16
External Ats Control Wiring
16
Remote Start Contact Field Wiring
17
Communication Cable Installation
18
Dielectric Testing
18
3 Description
19
Graphical Hmi Controller (Ghc) Display Hardware
20
Switch Control Unit (Scu) Hardware
21
Ats Operation Mode Descriptions
23
Automatic Sequence of Operation
25
Open Transition Transfer
25
Closed Transition Transfer
25
Dual Source Ats
27
Automatic Load Shed Operation
30
Test Mode
31
Abnormal Sequence of Operation
32
Ghc Display Main Menu
33
Home Page
34
Utility Metering Page
35
Generator Metering Page
35
Load Metering Page
36
Alarms Page
36
Alarms Log Page
37
Events Log Page
39
Sync Page
40
Scheduler Page
41
Settings Page
41
System Page
42
Ghc Display System Submenu
43
Import/Export Data
43
Date / Time Setup
43
Manage Users
44
System Information
44
Input Mapping
45
Output Mapping
45
Logs
46
Communication Status
46
MIMIC Bus Customization
47
Firmware Updates
47
Ghc Health
47
4 Operating Instructions
48
Ghc Screen
48
Help Information
48
On Load Test Instructions (Utility Power Fail Simulation)
49
Off Load Test Instructions (Generator no Load Test)
50
Timed Test Instruction
51
Open/Closed Transition Transfer Operation
53
Open Transition In-Sync Transfer Operation (Model X)
54
Closed Transition Operation (Fast Transfer Model 3)
54
Closed Transition Operation (Soft-Load Transfer Model 4)
55
Dual Source Ats Operation
58
Dual Source - Changing Preferred Units (Ghc Control)
59
Transfer Fail Alarm Reset
60
Timer Bypass
60
Manual Utility Retransfer Control
61
Service Disconnect Mode
61
Phase Unbalance Protection Alarm Reset
62
Transfer Halted Alarm Reset
63
Abnormal Source Alert
64
5 Programming Instructions
65
Password Security Description (Users Admin)
65
User Login Procedure
66
Administrator Password Management Procedure
67
System Time/Date Adjustment
68
Voltage Change Procedure
69
Remote Communication Setup
71
Exercise Timer Setup
71
Adding New Exercise Schedule Event
71
Editing Existing Exercise Schedule Event
72
Programmable Digital Input Mapping
73
Ts 870 Standard/Service Entrance Input Defaults
73
Ts 870 Dual Source Input Defaults
73
Ts 880 (Ics) Standard/Service Entrance Input Defaults
74
Ts 880 (Ics) Closed Transition Input Defaults
74
Programmable Input Function List
75
Programmable Input Function Mapping
77
Programmable Input User Defined Custom Name Mapping
78
Programmable Output Mapping
80
Ts 870 Standard/Service Entrance Output Defaults
80
Ts 870 Dual Source Output Defaults
80
Ts 880 (Ics) Standard/Service Entrance Output Defaults
80
Ts 880 (Ics) Closed Transition Output Defaults
80
Programmable Output Function List
81
Programmable Output Function Mapping
84
System Settings
85
System Phases
86
System Voltage
86
System Frequency
86
Phase Rotation Reversed
86
Rated Generator Power
86
Ct Ratio (Current Transformer)
86
Pt Ratio (Potential Transformer)
86
Load Name
87
Source 1 (Utility) Name
87
Source 2 (Gen) Name
87
Application Model
87
Switch Operation
87
Switch Model
87
Option Settings
87
Src 2 (Gen) Commit to Transfer
87
Enable Load Shed on under Frequency
88
Enable Load Shed on over Power
88
Halt Operation on Phase Reversal
88
Manual Src 1 (Utility) Retransfer Control
88
Force Transfer
89
Ghc Sleep Mode Timeout
89
Load Power Metering
89
Modbus Rtu
89
Modbus Tcp/Ip
90
Enable Security Bypass
90
Enable Neutral Delay Bypass
90
Enable Transfers to Src 1 (Utility)
90
Enable Transfers to Src 2 (Generator)
91
Enable Fail to Auto Sync Alarm
91
Enable Halt Transfer on Fail to External Sync Check
91
Enable Closed Transition Transfer (Ctts Model 3 & 4)
91
Revert to Open Transition
92
Enable Fail to Unload Alarm (Ctts Model 4)
92
Enable Extended Parallel Mode (Ctts Model 4)
93
Enable Soft-Load Transfer (Ctts Model 4)
93
Enable Start of Multiple Gens When Resuming from Standby
93
Preferred Source Alternation Interval
94
Trip Utility (Src 1) When Closed Transition Inhibit Activated
94
Current Metering
94
Enable Open Transition In-Sync Transfer (Ats Model X)
94
Delay Settings
95
Utility (Src 1) Return Delay
95
Gen (Src 2) Cool down Delay
95
Gen (Src 2) Start Delay
95
Gen (Src 2) Warm up Delay
95
Transfer Neutral Delay
96
Transfer Pre Delay (Ldc)
96
Transfer Post Delay (Ldc)
96
Src 2 (Gen) Gen Commit to Transfer Delay
96
Transfer Fail Delay
96
Transfer Max Error Condition Delay
96
Gen (Src 2) Failed to Start Delay
97
Disconnection Resume Time
97
Trip Retry On/Off Pulse Time (Src1&2)
97
Trip Retry Duration Timer (Src1&2)
97
Close Retry On/Off Pulse Time (Src1&2)
97
Close Retry Duration Timer (Src1&2)
98
Timer Guard Delay
98
Find Neutral Delay
98
Return to Preferred Source Delay
99
Wait for Preferred Source Delay
99
Transfer from Preferred Source Delay
99
Utility/Gen Set Points (Voltage/Frequency)
99
Under Voltage Delay (Dropout)
100
Under Voltage Dropout
100
Under Voltage Pickup
100
Over Voltage Delay (Pickup)
100
Over Voltage Dropout
100
Over Voltage Pickup
100
Phase Unbalanced Voltage Latch
100
Phase Unbalance Delay (Pickup)
101
Phase Unbalance Dropout
101
Phase Unbalance Pick up
101
Under Frequency Delay (Dropout)
101
Under Frequency Dropout
101
Under Frequency Pickup
102
Over Frequency Delay (Pickup)
102
Over Frequency Dropout
102
Over Frequency Pickup
102
Voltage Source Blackout Delay (Dropout)
102
Voltage Source Blackout Dropout
102
Voltage Source Blackout Pickup
102
Voltage Rotation Reversal Delay (Pickup)
103
Voltage Rotation Reversal Drop out
103
Voltage Rotation Reversal Pick up
103
Load Voltage Set Points
103
Load Voltage Blackout Delay (Dropout)
103
Load Voltage Blackout Dropout
103
Load Voltage Blackout Pickup
103
Load Shed Frequency & Power Set Points
104
Load Shed Initiate Delay
104
Load Shed Unshed Delay
104
Load Shed Frequency Delay (Pickup)
105
Load Shed Frequency Pick up
105
Load Shed Frequency Drop out
105
LOAD SHED POWER (Kw) DELAY (PICKUP)
105
LOAD SHED POWER (Kw) DROP out
105
LOAD SHED POWER (Kw) PICK up
105
In-Sync Transfer Set Points
105
In-Sync Wait Delay
105
External Sync Check Wait Delay
106
Fail to Unload Timer (Ctts Model 4)
106
Closed Transition Max Overlap Timer
106
Source Frequency Differential Higher Threshold
106
Source Frequency Differential Lower Threshold
107
Source Voltage Differential Higher Threshold
107
Source Voltage Differential Lower Threshold
107
Transfer Switch Mechanism Operation Time
107
6 Factory Default Programming
108
7 Tsc 900 Typical Connection Diagram
112
8 Tsc 900 Wiring Pin Connections
113
9 Troubleshooting
114
10 Replacement Parts
118
11 Product Return Policy
119
12 Notes
