Second and Succeeding Day Setups
P/N 7010-0369 www.topconpositioning.com
5-3
To use a finish grade or hub as an elevation reference,
1. Set the machine's cutting edge on the bench mark hub or finish
grade cut from the previous day (Figure 5-2).

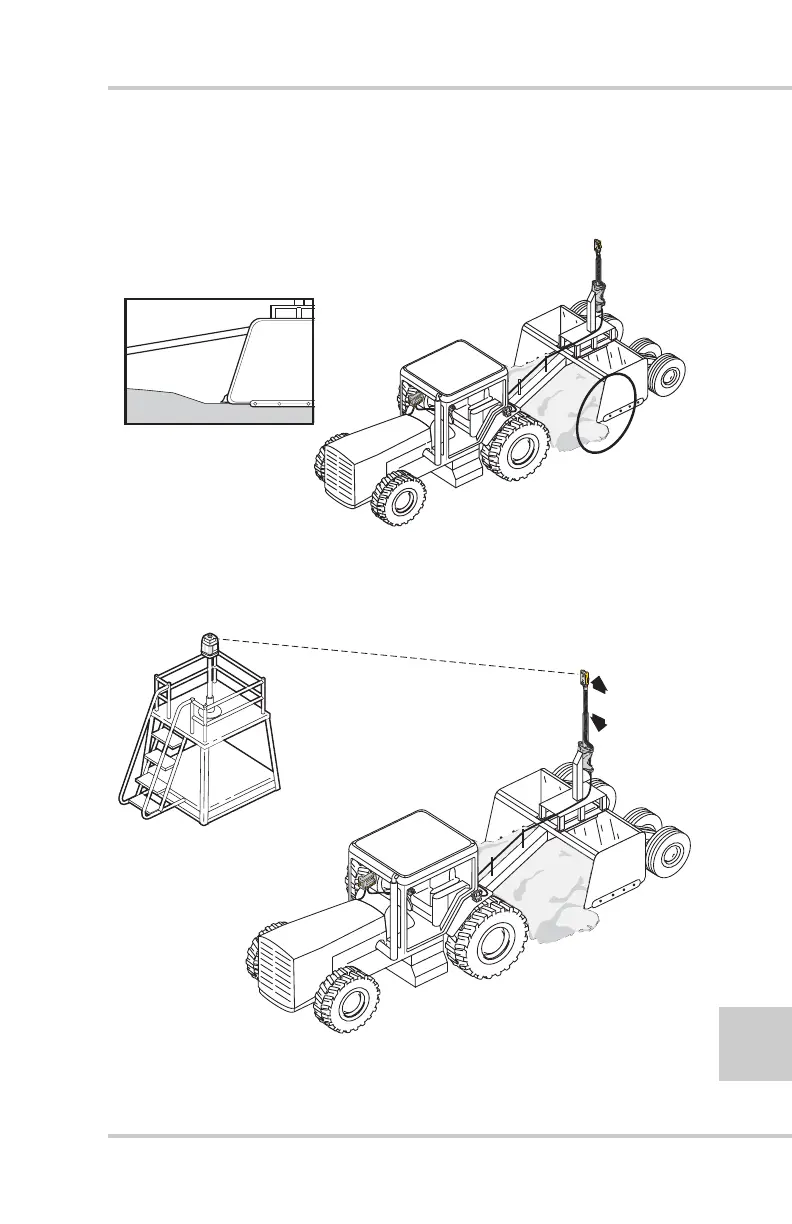

Figure 5-2. Starting from Previous Day’s Finish
2. Set up the laser, with correct slopes, at any height.
3. Press Survey to lock the receiver on-grade (Figure 5-3).
Figure 5-3. Adjusting Receiver to get On-grade Signal
Place the Cutting Edge
on the Finished Grade Cut
from the Previous Day . . .
