CLCH-SVX07K-EN 11
Dimensions and Weights
Service Clearance Recommendations
A minimum clearance of the section width plus 12 inches
on the access door side of the gas heat section is
recommended for routine maintenance. This clearance
provides enough room to replace the heat exchanger in
the event of failure. The section side panels must be
removed to access the heat exchanger. Refer to the
following figure for service clearance recommendations
for the air handler.

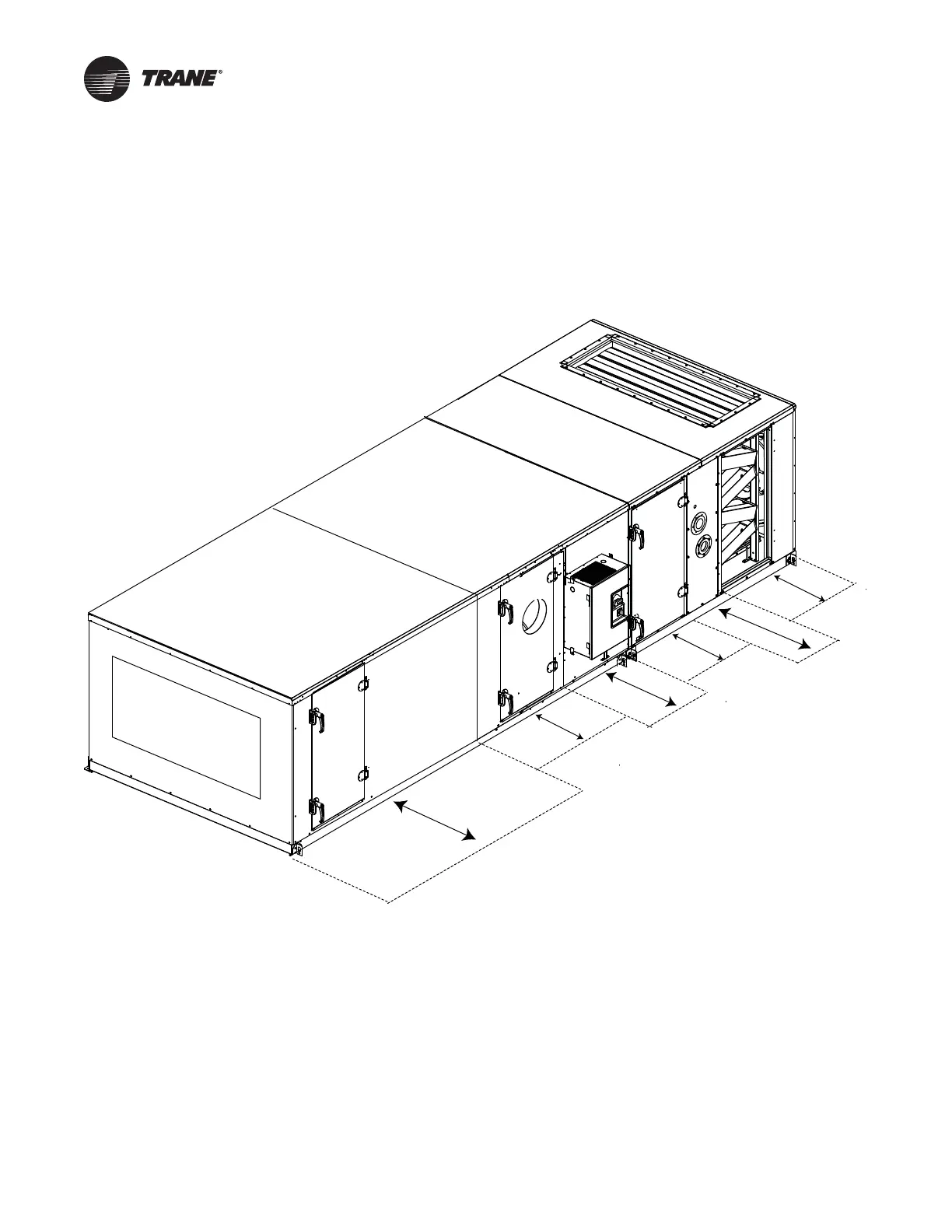

Figure 3. Service clearance for indoor units
Filter mixing box
Coil
Fan
Gas heat
Access
door
UV
lights
VFD
F
E
D
C
B
A
