Installation - Mechanical
24 CLCH-SVX07K-EN
• Access for removal of shipping tie-downs for unit sizes
3-30 is available through the fan section access door or
opposite drive-side plug panel. See Figure 13.
• Access for removal of shipping tie-downs for unit sizes
3-30 is available through the fan section access door or
opposite drive-side plug panel. See Figure 13.
• Remove the bolt. This will release the isolator and
make it possible to remove the pipe or spacer.
• Replace plug panel if applicable.
Note: For outdoor air handlers, after isolator tie-down is
removed, remove the paper backing from the butyl
tape around plug panel perimeter prior to replacing
plug panel.

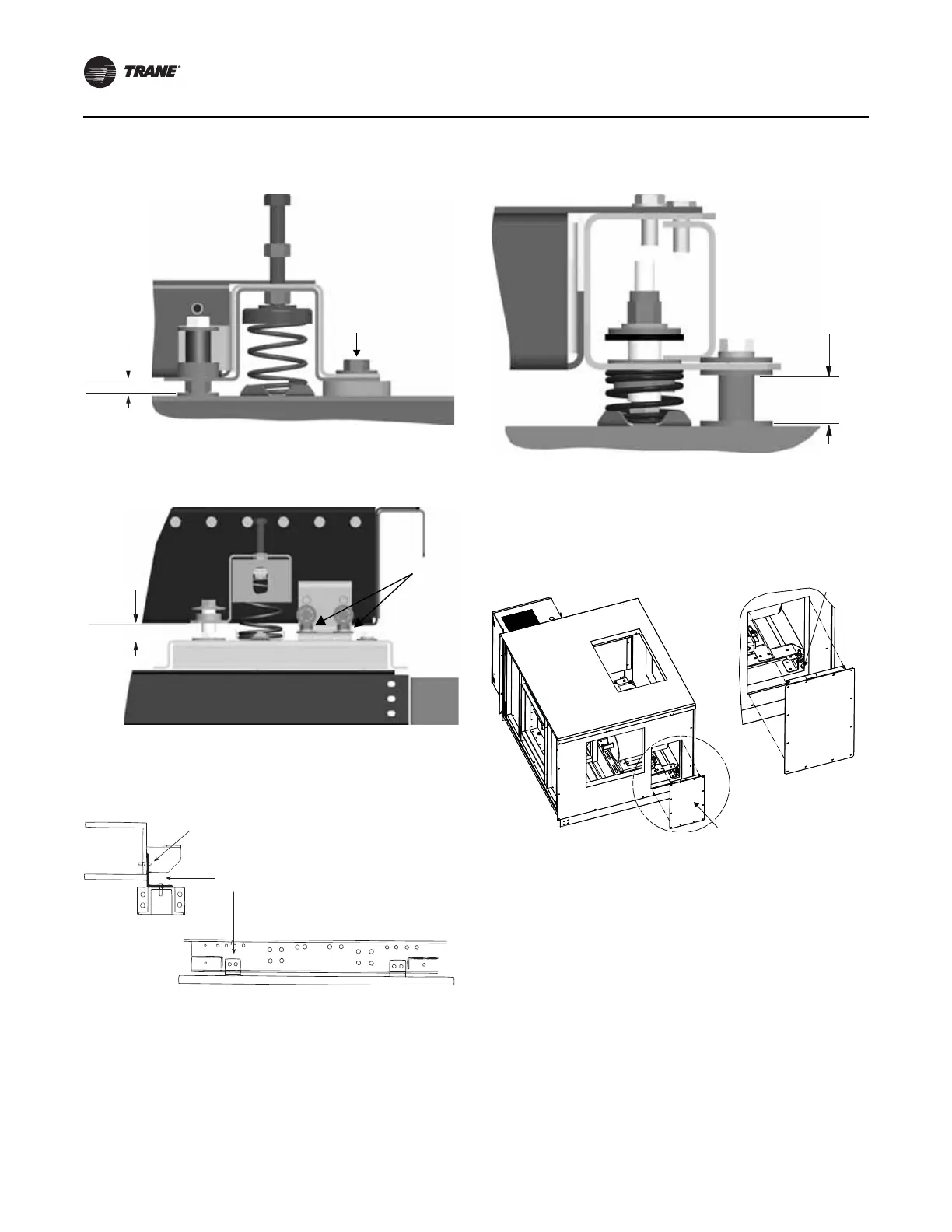

Figure 9. Isolator tie-down for unit sizes 10-30
Figure 10. Isolator tie-down removal for unit sizes 66-120
Figure 11. Isolator tie-down removal for unit sizes 35 -
120
Required
clearance
Tiedown
Required
clearance
Tiedown
Angle, isolator
tie-down (4 required)
Screw (4 per angle)
lockwasher and hex nut
Figure 12. Belt-drive plenum fan tie-down
Figure 13. Plug panel plate
Required
clearance
Remove plug panel plate
Remove
tie-down
