Installation - Mechanical
CLCH-SVX07K-EN 47
Sizes 3 to 35 (Design Sequence L or earlier)
and 40 to 50
1. Ensure that first level roof section is properly sealed
with Butyl tape (item 8) and/or caulk (Item 14) at the
ends. See Figure 58.
2. Bend end tabs by hand and apply Butyl tape (Item 8) to
flashing. See Figure 59.
3. Secure to base rail with screws (Item 4).
4. Apply caulk (Item 14) to ensure a water tight seal. See
Figure 60.

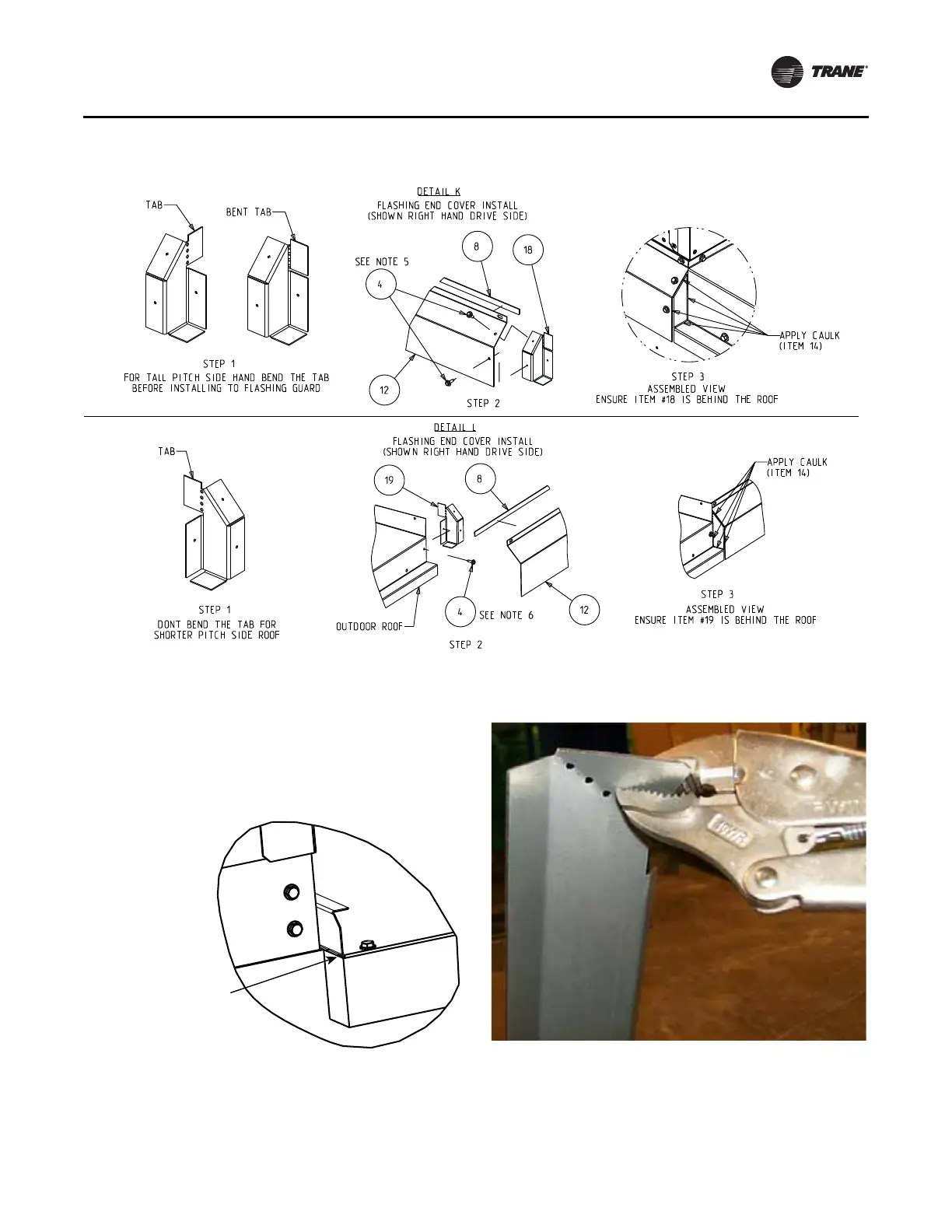

Figure 57. Sizes 3 to 35 (des seq M or later) , non-hurricane units (part 2 of 2)
Figure 58. Seal first level with caulk or Butyl tape
Confirm Butyl
tape or caulk fills
area between roof
and second level unit.
Figure 59. Bend end tabs, apply Butyl tape to flashing
