Component Installation
CLCH-SVX07K-EN 99
External Face-and-Bypass Connections
The external face-and-bypass damper sections will
require a field-fabricated duct to direct the bypass air into
the appropriate section. Duct sizing recommendations are
listed in Table 34.
When attaching a bypass duct to a downstream fan section
or access section, the section will have a factory-provided
opening. (see Figure 128, Figure 129, and Figure 130.)
When bypassing into an access section, remove a panel. It
is not necessary to cut an opening.
Table 34. Recommended bypass duct sizes (inches)
Unit size H W L
3 16.00 20.00 14.00
4 18.00 33.00 16.00
6 18.00 33.00 16.00
8 18.00 39.00 16.00
10 18.00 50.00 16.00
12 22.00 55.00 20.00
14 22.00 61.00 20.00
17 22.00 61.00 20.00
21 28.00 69.00 26.00
25 28.00 69.00 26.00
30 28.00 82.00 26.00
35 45.00 80.00 36.00
40 45.00 93.00 36.00
50 45.00 106.00 36.00
57 47.00 106.00 40.00
66 48.00 121.00 40.00
80 56.00 121.00 48.00
100 56.00 135.00 48.00
120 56.00 162.00 48.00

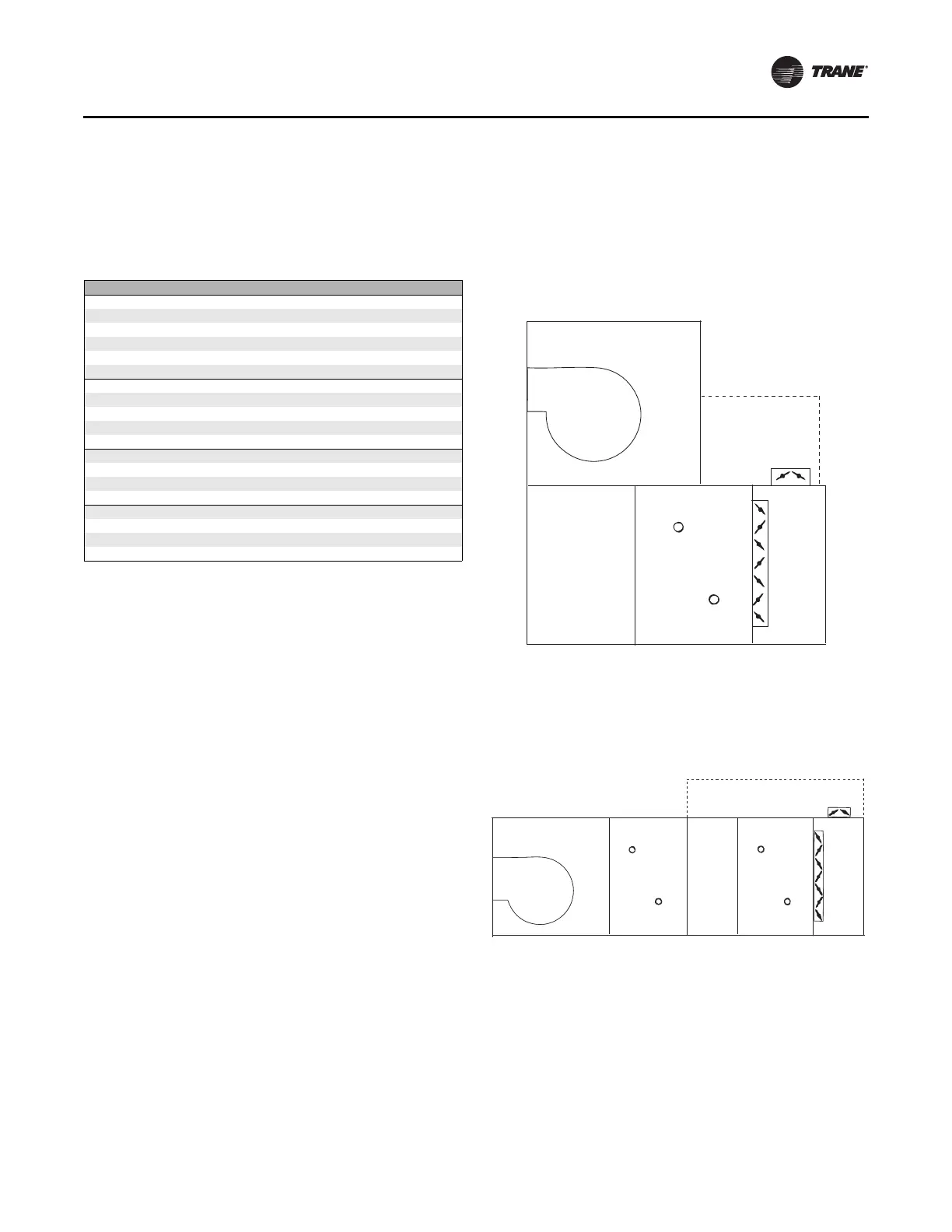

Figure 128. External face-and-bypass with duct
configuration designed to bypass air into a
vertical fan section
Figure 129. External face-and-bypass with duct
configuration designed to bypass air around
one coil
Duct
Fan
External
face-and-bypass
Coil
Fan
Coil
Coil
External
face-and-bypass
Duct
Access
