Trane CSAA User Manual

Installation - Mechanical
34 CLCH-SVX07K-EN

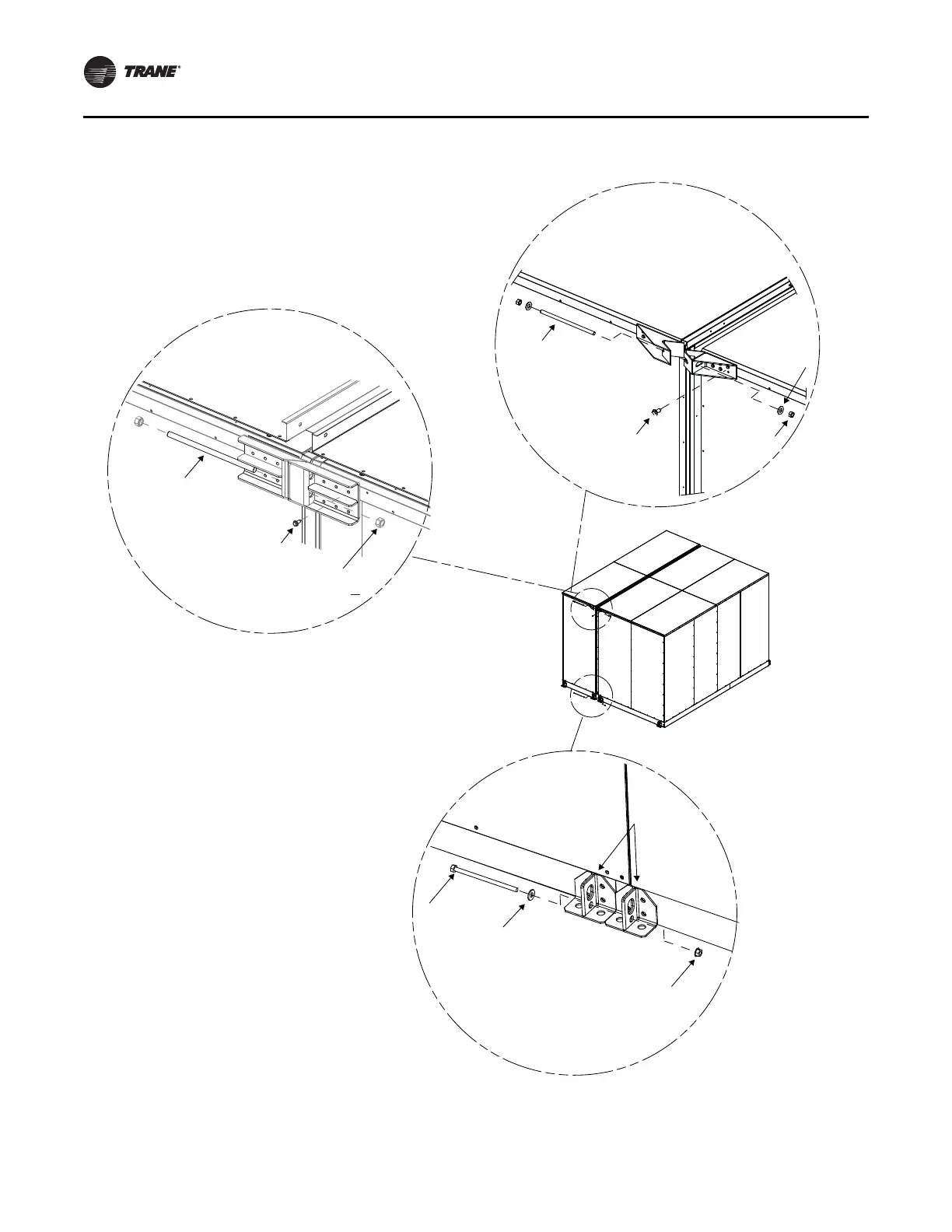

Figure 40. Shipping split assembly
Threaded rod
0.50-13 x 10.50
Nut
0.50-13 hex machine
Washer
0.656 ID x 1.312 OD
Wedge block for
indoor unit size 66-120
Outdoor hurricane-certified unit size 35-120
Leached self-driller screw
0.25-14 x 0.75
Threaded rod
0.50-13 x 10.50
Leached self-driller screw
0.25-14 x 0.75
Nut
0.50-13 hex machine
Wedge block for:
Outdoor unit size 35 (des seq L or earlier)
Outdoor unit size 40-120
Non-hurricane unit
Washer/Nut
Size 3-120 Outdoor: 0.656 ID X 0.312 OD Washer
Size 3-120 Outdoor: 0.50 -13 NUT HEX FLANGE
Size 35-120 indoor: 0.656 ID X 0.312 OD Washer
Size 35-120 indoor: 0.50 -13 NUT HEX FLANGE
Size 3-30 indoor: 0.375 ID X 0.875 OD Washer
Size 3-30 indoor: 0.313 – 18 NUT HEX FLANGE
Threaded Bolt and Rod
Size 3-120 Outdoor: 0.500-13 X 10.5 in Threaded Rod
Size 35-120 Indoor: 0.500-13 X 10.5 in Threaded Rod
Size 3-30 Indoor: 5/16 x 6 in Fully Threaded Bolt
Nut/Washer
Size 3-120 Outdoor: 0.50 -13 NUT HEX FLANGE
Size 3-120 Outdoor: 0.656 ID X 0.312 OD Washer
Size 35-120 indoor: 0.656 ID X 0.312 OD Washer
Size 3-30 indoor: 0.375 ID X 0.875 OD Washer
Lifting lugs
Part# = CNL02155
Part# =KIT09798
