Installation - Mechanical
38 CLCH-SVX07K-EN
Pipe Cabinet Installation
1. After air handler is completely installed and checked to
ensure that the unit is level and square, remove cross
base member on pipe cabinet base by removing the
four bolts and nuts.
2. Add 1-inch x 7.5-inch Armacell
®
gasketing to inside of
baserail and add 3/8-inch x 3/8-inch white Butyl
®
tape
to face of pipe cabinet. See figures below for
appropriate sizes.

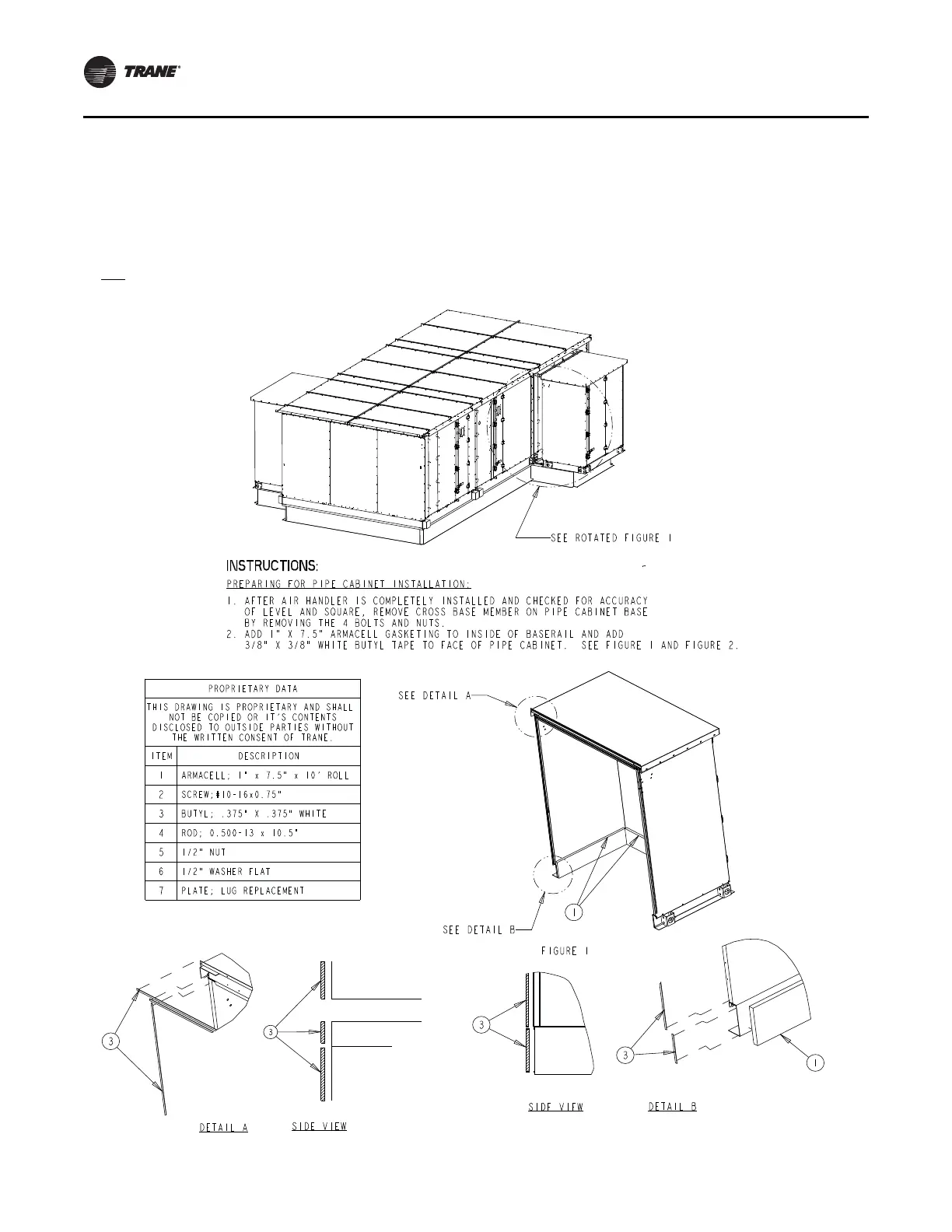

Figure 45. Pipe cabinet installation, unit sizes 3 to 35 (des seq L or earlier) and 40 to 120
