16 Software Utilities
108 Trimble R6/R7 GPS and Trimble R8 GNSS Receivers User Guide
Trimble R6 GPS and R8 GNSS Receiver Operation
160.1 Configuring the internal transceiver

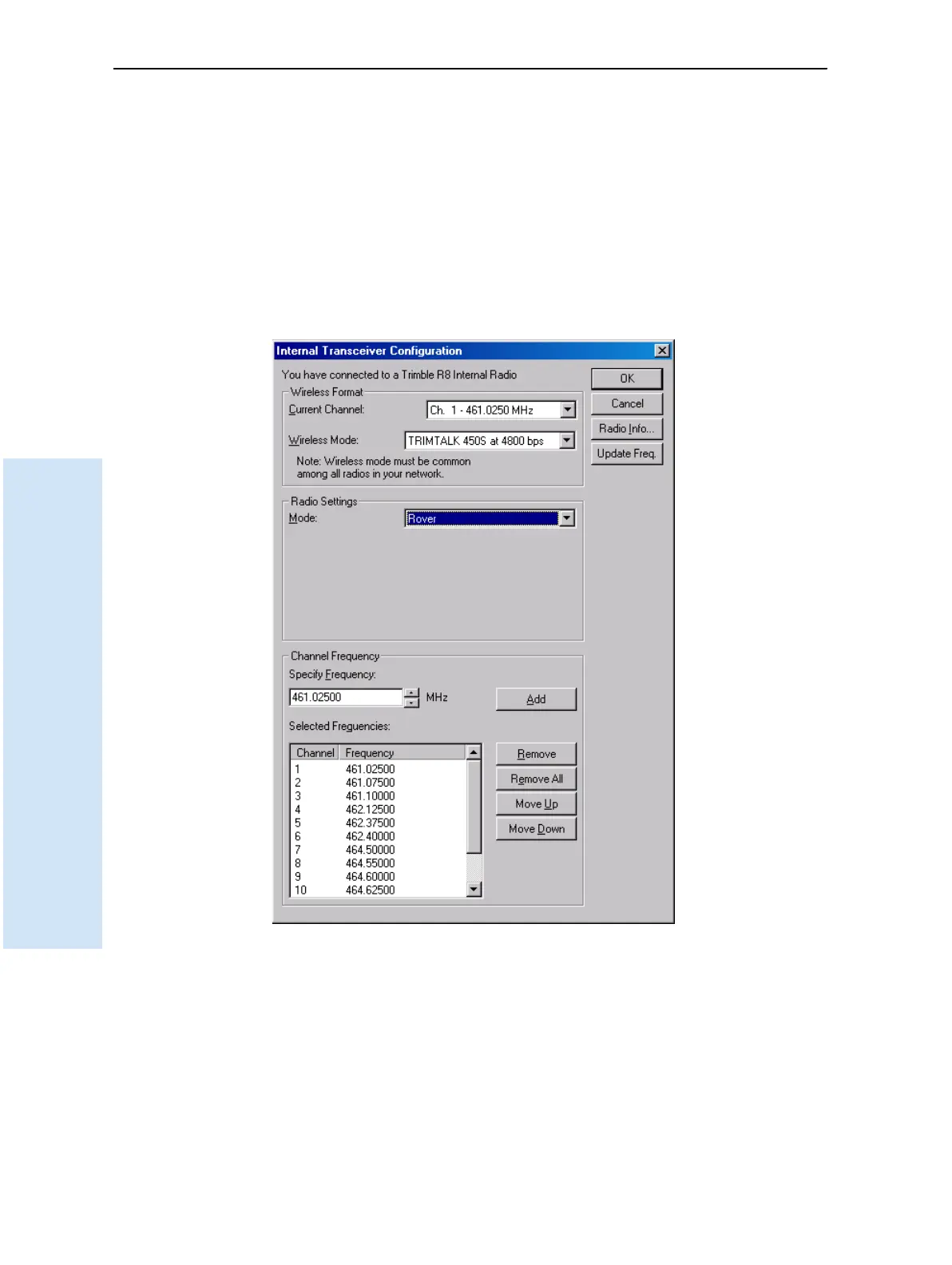

Use the WinFlash Internal Transceiver Configuration dialog to configure the internal
transceiver.
B
Tip – To view a list of all radio information, including the current configuration, click
Radio Info.
1. Select the Current Channel, which determines the radio operating frequency.
2. Select the Wireless Mode, which determines the over-the-air communications
parameters. The following example shows a rover setup:
To reduce battery consumption on your base receiver, set the wireless mode as
high as possible. For example, 9600 bits per second (bps) consumes half the
power of 4800 bps for the same data format and time of operation.
Note – All radios in the network must be configured with the same wireless
setting.
