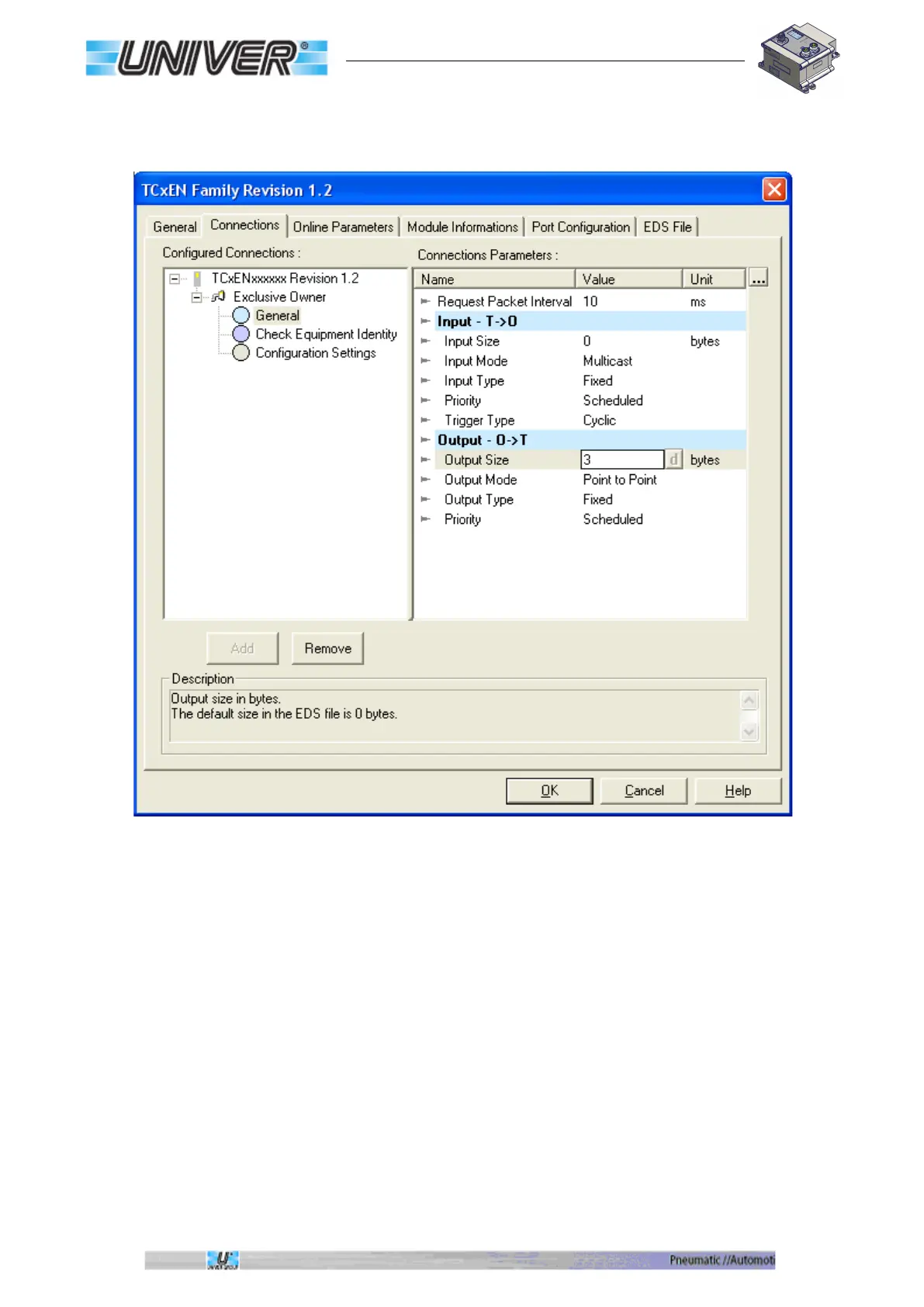

Now configure the number of bytes for the inputs and the number of bytes for the output of the used device.
(in the example we have a TCxEN and only 3 bytes for the output will be assigned).
The procedure may be slightly different in different software, however the operative sequence must be generally the
following:
1) Set the IP address (not necessary if the DHCP is activated) and the other options by using the BootP software
or the Ethernet/IP Device Configurator.
2) Set the device EDS file in the master.
3) Scan the network or insert the device by selecting it from the list and put it into the window with the master.
4) Configure the number of bytes for inputs and outputs.
5) Configure the options of the module if necessary.
