5 Install Uponor Smatrix Wave PULSE room
controller
5.1
Placement of room controller
Use the following guidelines when positioning the room controller:
• Position the room controller close to the manifold, just above if
possible, and each manifold pair must have its own room
controller. Check the position of the 230 V AC wall socket, or if
required by local regulations, to a junction box, connected to the
mains power.
• Check that the room controller is protected from running or
dripping water.
• Check that the cover of the room controller can be easily
removed.
• Check that connectors and switches are easily accessible.
See Prepare for installation, Page 16, for more information.
Modular placement
The room controller is designed with the option of modular placement
in mind. This means that all major parts are detachable and can be
placed separately (some extra wiring may be required depending on
placement).
Attaching/detaching components
Caution!
The transformer module is heavy and might detach if the
room controller is held upside down without the cover on.
Caution!
The slave module must be attached by snapping it into
place due to connection pins sticking out of the module.
Note
Wires between transformer and room controller card
needs to be disconnected prior to detaching the
transformer.

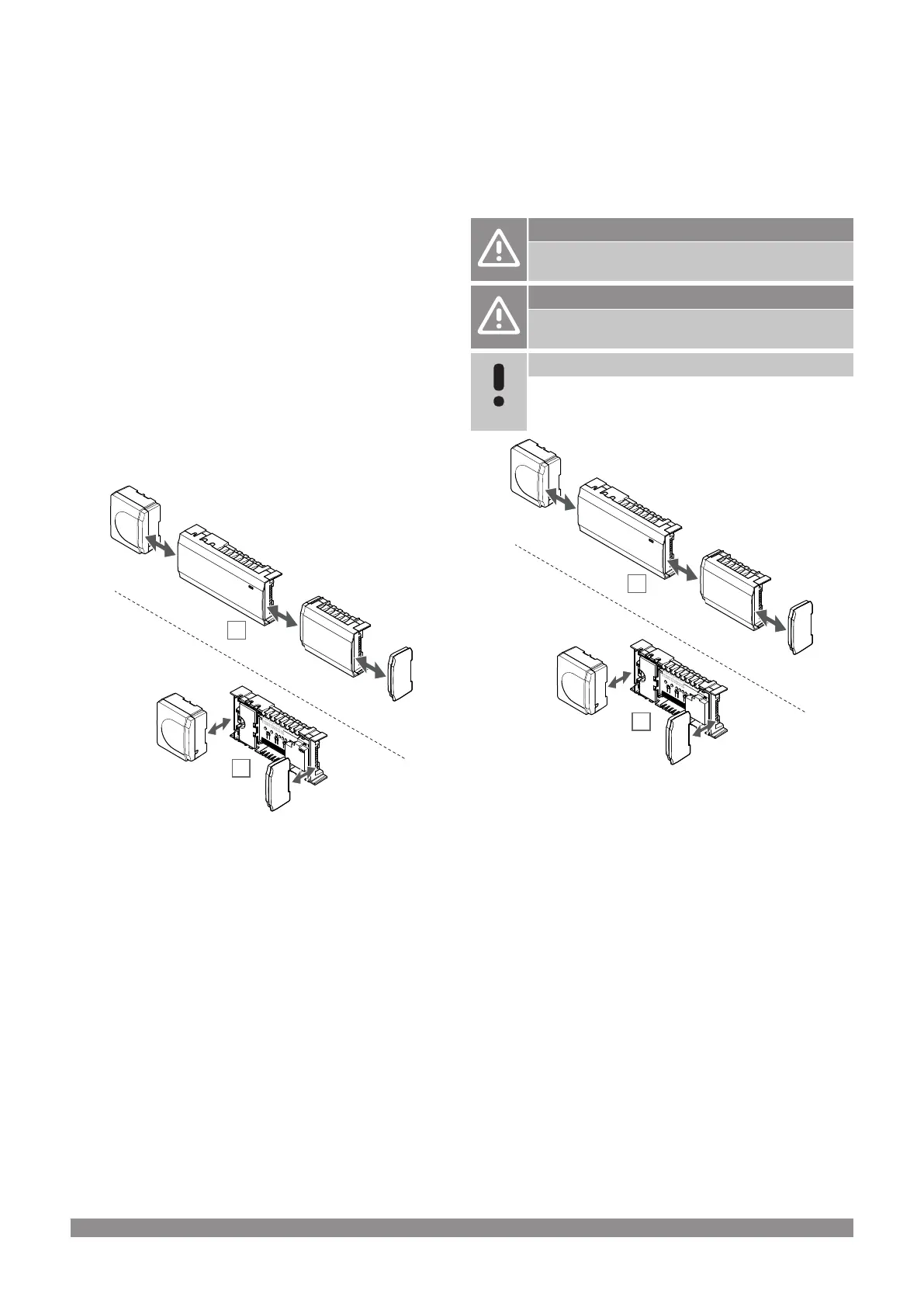

The components can either snap on or off without the need of
removing the covers (A, recommended to do on a flat surface or on a
DIN-rail), or by sliding them into place when the covers are removed
(B).
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
21
