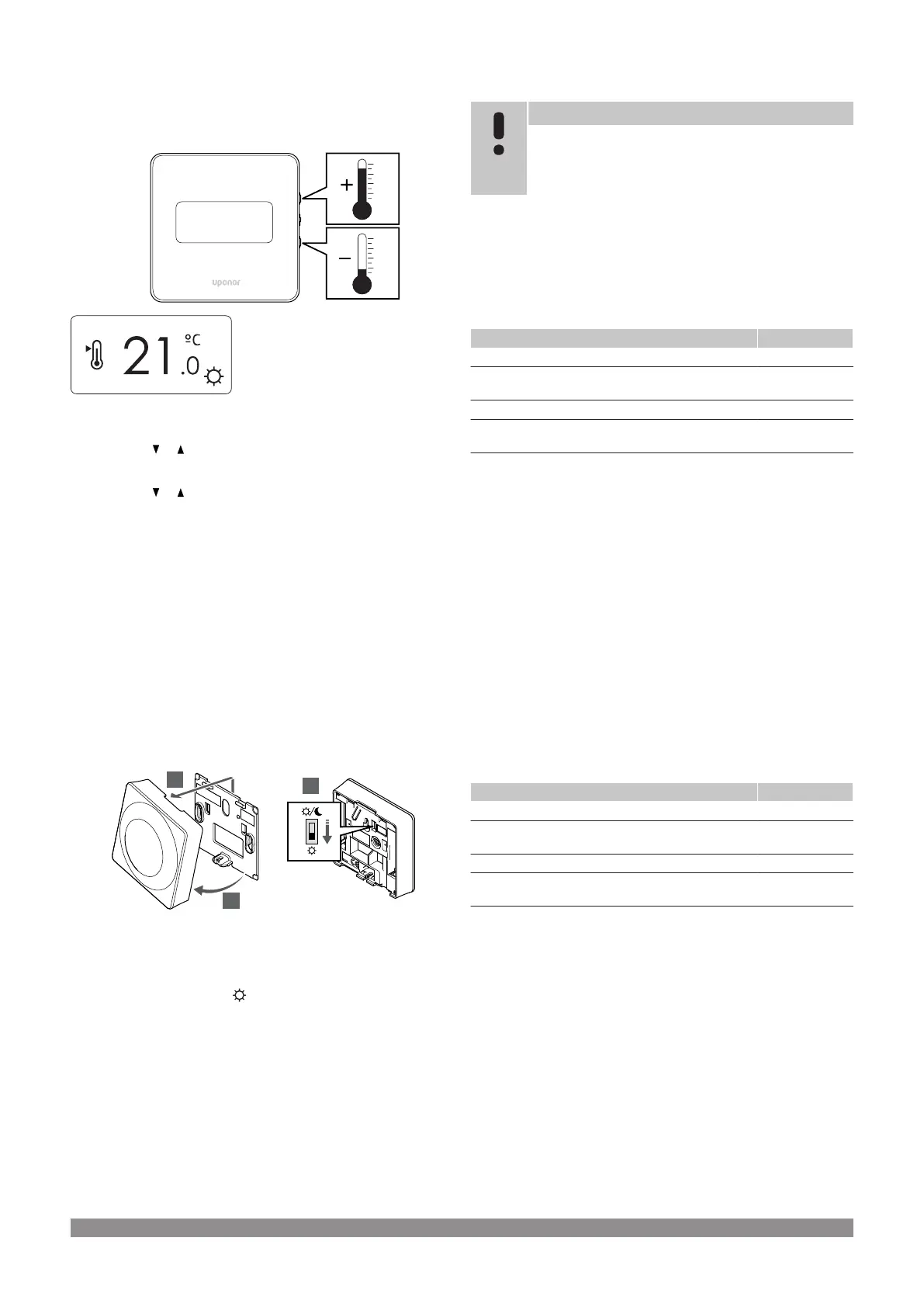

Uponor Smatrix Wave PULSE User Manual

Uponor Smatrix Wave T-169
Use the buttons on the thermostat to adjust the temperature. The
display will light up when pushing a button. It shuts off after about 10
seconds of inactivity.
SI0000184
CD0000099
To adjust the thermostat temperature setpoint of the current control
mode:
1. Press the or button once.
The screen shows the current setpoint flashing.
2. Press the
or button repeatedly to adjust the setpoint
temperature. It will change with increments of 0.5.
When the new setpoint is set, the screen returns to run mode
after a few seconds, showing the room temperature.
14.5 Analogue thermostat
functions
Disable timer function (T-163 and T-165 only)
Thermostats T-163 and T-165 have switches on their backs allowing
the user to disable the timer function (Comfort mode) for the channels
controlled by the thermostat. The switch is set to Comfort/ECO from
the factory.
1
2
3
SI0000185
To change the switch to Disable timer:
1. Angle the thermostat from the bracket.
2. Remove it from the wall.
3. Switch to Comfort mode
.
4. Put the thermostat back on the wall.
14.6
Digital thermostat functions
Run mode
During normal operation the thermostat is in run mode.
While in run mode the display shows specific control mode
information.
Control mode
Note
If no button on the thermostat is pressed for about
8 seconds, while in a submenu, the current values will be
saved and the software exits to the settings menu. About
about 60 seconds later, it exits to run mode.
The thermostat has four different control modes, set in the settings
menu.
Change control mode
See Change settings, Page 90, for how to change the setting.
Uponor Smatrix Wave T-166
Thermostat function Display text
Room temperature sensor RT
Room temperature sensor and floor temperature
sensor
RFT
Remote sensor RS
Room temperature sensor and outdoor temperature
sensor
RO
Different types of information can be shown in the display when in a
control mode. Use the OK button to toggle between the information
available.
Room temperature sensor
1. Room temperature (default)
Room temperature sensor and floor temperature sensor
1. Room temperature (default)
2. Floor temperature
Remote sensor
1. Remote sensor (default)
Room temperature sensor and outdoor temperature sensor
1. Room temperature (default)
2. Outdoor temperature
Uponor Smatrix Wave T-168
Thermostat function Display text
Room temperature sensor RT
Room temperature sensor and floor temperature
sensor
RFT
Remote sensor RS
Room temperature sensor and outdoor temperature
sensor
RO
Different types of information can be shown in the display when in a
control mode. Use the OK button to toggle between the information
available.
Room temperature sensor
1. Room temperature (default)
2. Relative humidity
Room temperature sensor and floor temperature sensor
1. Room temperature (default)
2. Relative humidity
3. Floor temperature
Remote sensor
1. Remote sensor (default)
2. Relative humidity
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
89

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
