Heating/cooling switch
The heating/cooling switch is manually controlled through the Uponor
Smatrix PULSE app (which controls the whole system), an external
signal, the supply temperature, or depending on the indoor/outdoor
temperature. It is used to switch the operation of the room controller
between heating and cooling modes.
A single external signal (if used) can be connected to up to four Wave
room controllers at the same time, working in parallel. Reducing the
number of heating/cooling switches needed in the system.
Distributed manifolds or single valve
If a manifold, or a valve of a single loop, is placed too far from the
room controller a relay module can be used.
1. Connect the actuator attached to the distributed manifold to a
relay module (230V from the room controller or 24V from an
external power supply).
2. Register the digital thermostat to an empty channel on the Wave
room controller.
3. Use thermostat settings menu 09 on the same thermostat and
register it to the relay module.
The manifold is now distributed and is using the same thermostat,
autobalancing, and actuator management as the Wave room
controller for the selected channel.

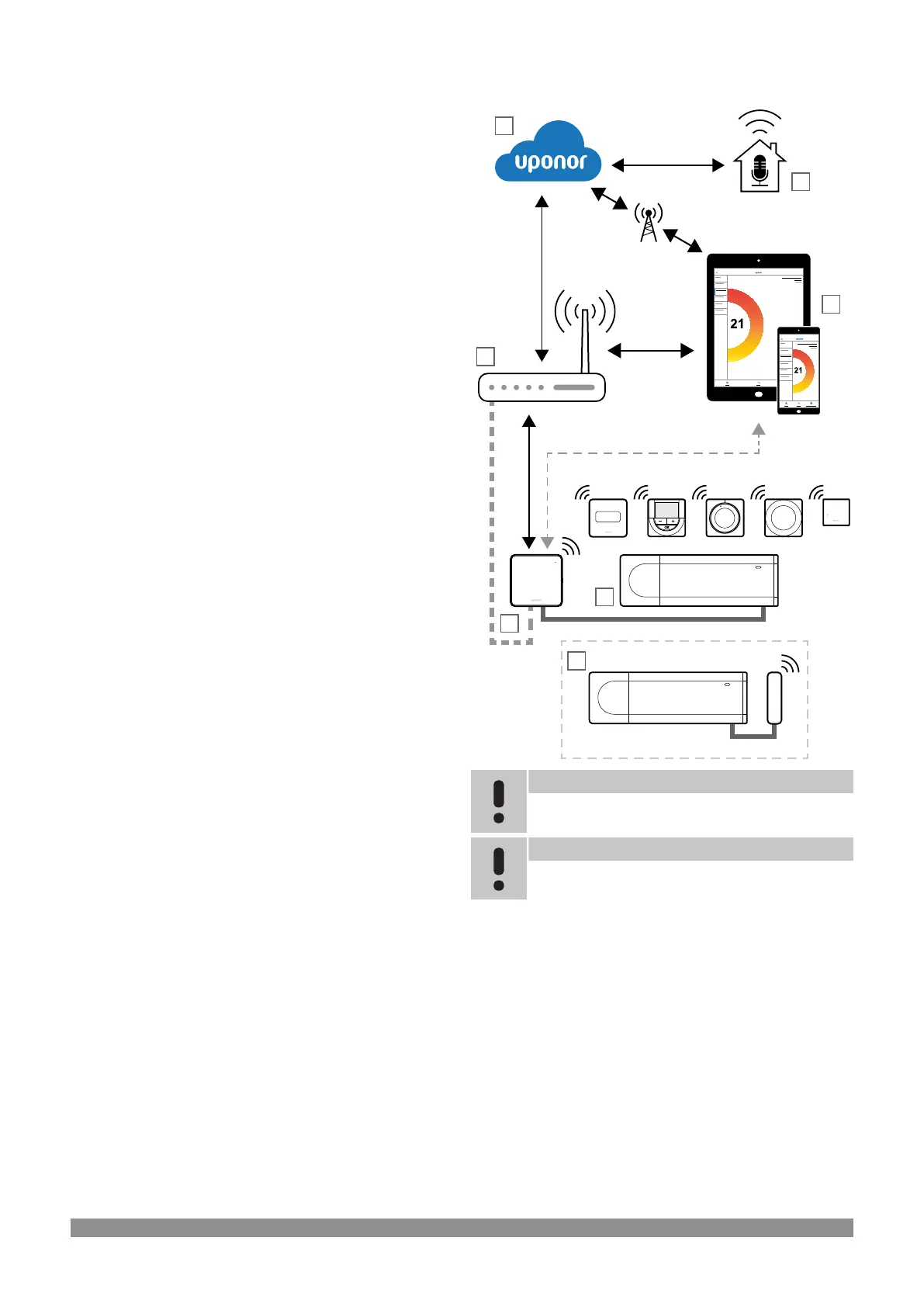

4.4 Network connectivity
WWW
Wi-Fi
(Wi-Fi)
Wi-Fi
API
(Ethernet)
SD0000028
F
C
D
E
B
A
G
Note
Setting up a system with a communication module
requires a mobile device (smart phone/tablet).
Note
API connection only supports external control.
The room controller (C) can be setup and controlled using the Uponor
Smatrix PULSE app (A) and communication module (B) through
different connection methods.
Direct connection
The Uponor Smatrix PULSE app (A) communicates with the room
controller (C) via direct connection.
• The mobile device connects directly, using Wi-Fi, to the access
point in the communication module (B).
• The sub room controller (D) communicates via the master room
controller (C).
When is this method is used?
• When installing and setting up a system.
• During normal operation when there is no local Wi-Fi network
available.
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
19
