Uponor Smatrix Wave PULSE User Manual

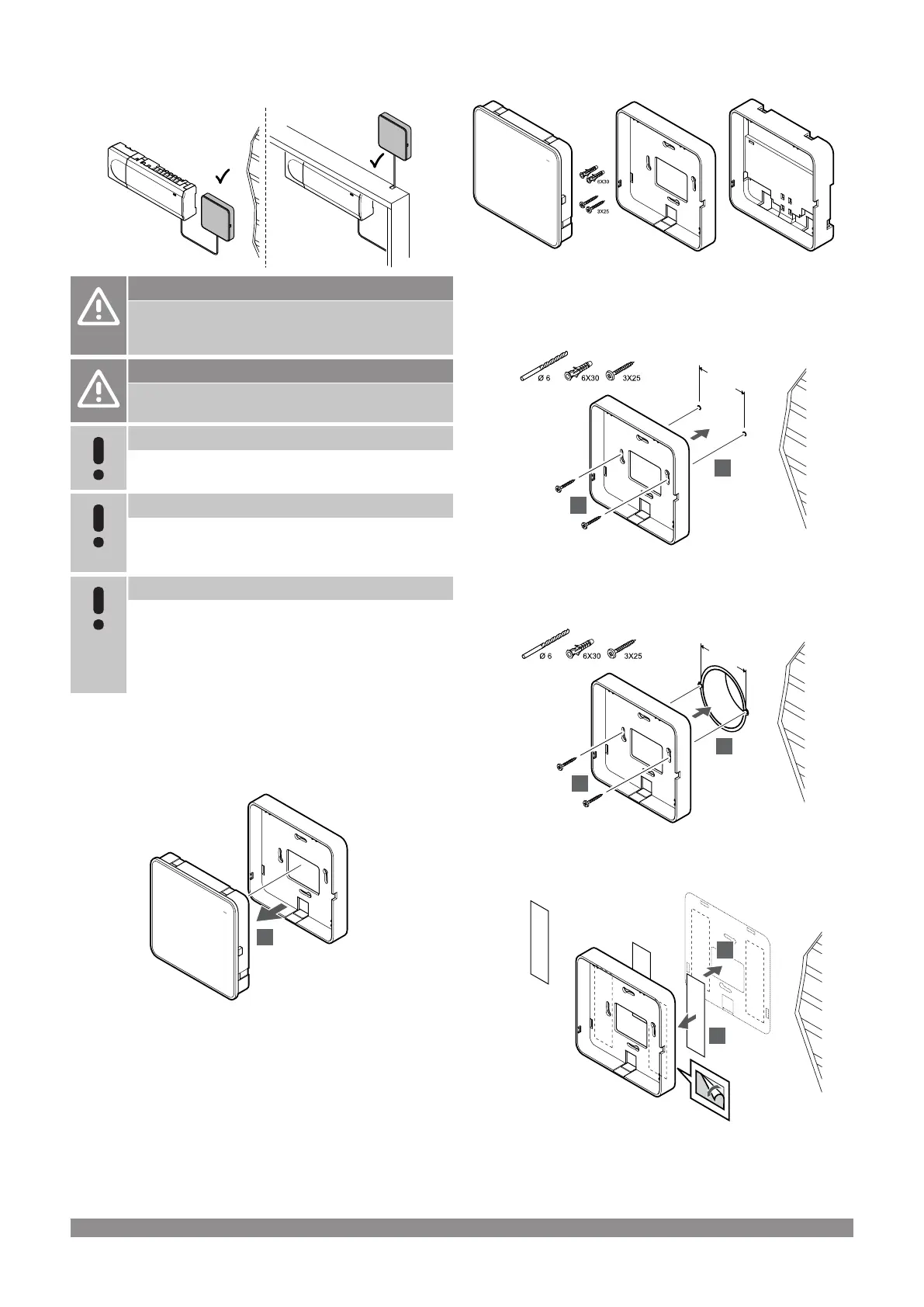

5.5 Install communication module
CD0000158
Caution!
If the room controller is installed inside a metal cabinet,
the entire communication module must be placed outside
the cabinet.
Caution!
The communication module must be installed vertically
for best coverage.
Note
Setting up a system with a communication module
requires a mobile device (smart phone/tablet).
Note
It is recommended to attach the communication module
to a wall outside of the cabinet when using Wi-Fi
connection.
Note
If more than one room controller is available in the
system, connect the communication module to the
master room controller only.
Sub room controllers can only use the room controller
antenna.
The communication module contains both an antenna module (for
internal communication with thermostats and such), and a local
network module for Wi-Fi or ethernet communication.
1. Remove back mount
SI0000147
1
Separate the communication module from its removable back mount.
2. Attach removable back mount to the wall
CD0000011
The communication module is delivered a kit with screws, wall plugs,
and an optional back mount for DIN-rails, presenting several options
of attaching the thermostat to the wall.
Using screws and wall plugs
1
2
60 mm
SI0000149
Attach the communication module back mount to the wall using the
screws and wall plugs.
Using wall box
1
60 mm
SI0000148
2
Attach the communication module back mount to the wall box.
Using adhesive tape
90 x 25
2 x
2
1
SI0000150
Attach the communication module back mount to the wall using
adhesive tape.
24
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual
