5.2 Connect optional slave
module
SI0000023
Note
Only one slave module extension is supported per room
controller.

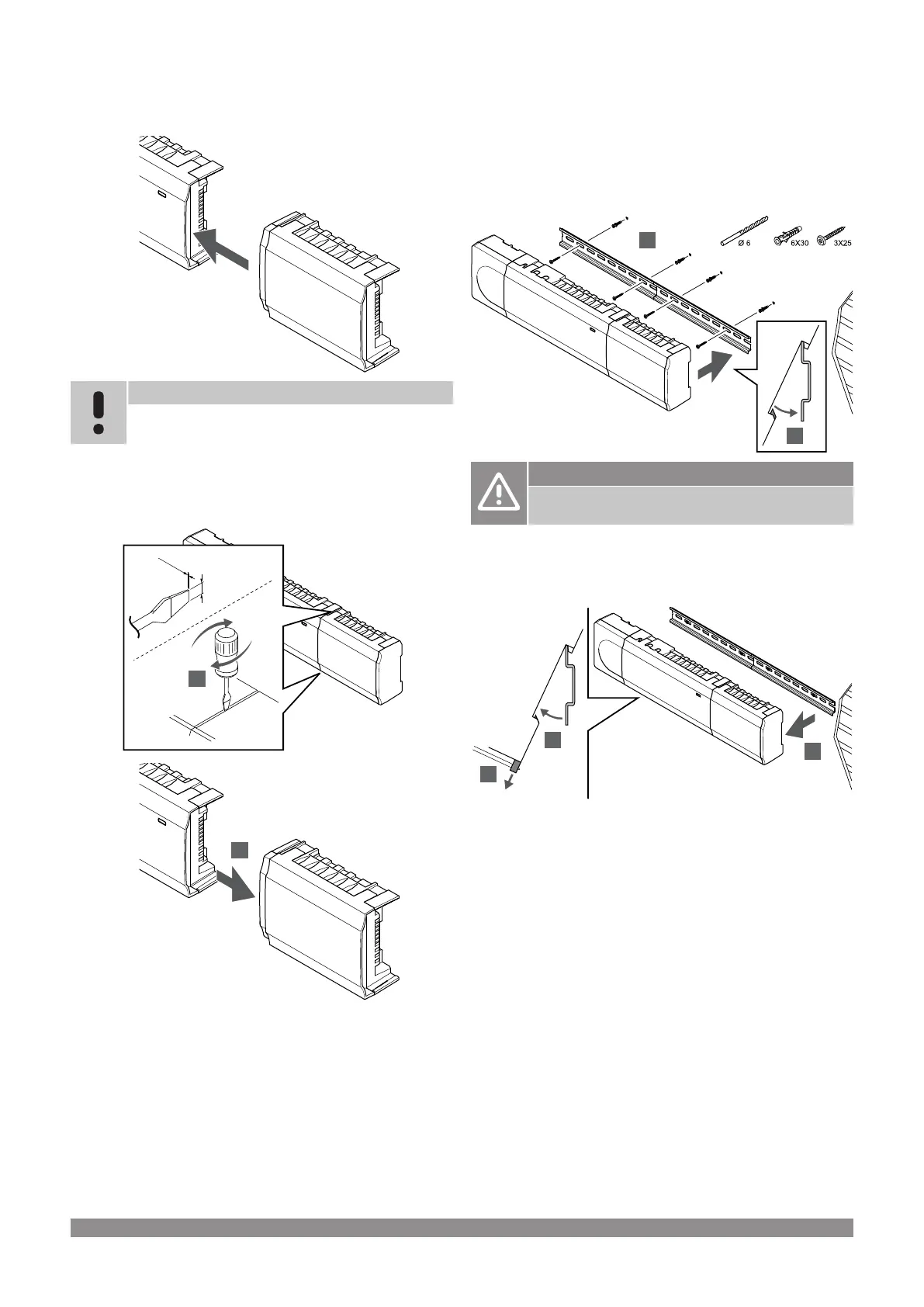

Snap the slave module to the room controller (recommended to do
this on a flat surface or on a DIN-rail).
Remove the slave module
1.2 mm
8 mm
1
SI0000094
2
SI0000095
1. Place a wide flat head screwdriver in the slot between the slave
module and the other unit and twist until the snap-in lock
releases. Repeat for the other side.
2. Remove the slave module. Use caution not to bend the
connection pins.
5.3
Attach room controller to the
wall
Attach the room controller to the wall using a DIN-rail and/or screws
and wall plugs.
Using DIN rail
1
2
SI0000008
Caution!
Make sure the room controller cannot slide off the DIN
rail if mounting it in any other position than horizontal.
1. Fasten the DIN rail to the wall using the screws and wall plugs.
2. Snap the room controller to the DIN rail.
Remove from DIN rail
1
2
3
SI0000093
1. Use a screwdriver (or similar) and extend the springy plastic
catcher from the room controller.
2. Angle the room controller from the wall.
3. Remove the room controller from the DIN rail.
22
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
