The thermostat is faulty
Channel LEDs in the room controller continue
flashing
• The thermostat is not correctly positioned
-
Check the placement of the thermostat so the signal is not
shielded by another object
• The room controller antenna is not correctly installed or
positioned
-
Check the wiring and the antenna connection
• The room controller antenna is installed inside a metal cabinet,
or too close to other shielding objects
-
Change the antenna location. If the problem persists,
contact the installer
• The communication module is installed inside a metal cabinet, or
too close to other shielding objects
-
Change the communication module antenna location. If
the problem persists, contact the installer
External comfort/ECO switch doesn't work
The system doesn't switch between Comfort and
ECO mode
• More than one Comfort/ECO switch is connected to the system
(to the GPI and public thermostat system device)
-
Select one of the switches (either GPI or public thermostat
system device) and uninstall the other one (only one
swtich in the system is supported)
17.3 Digital thermostat alarms/
problems
An alarm is sent when more than 1 hours have elapsed since the
room controller communicated with the thermostat.
Uponor Smatrix Wave T-166/T-168

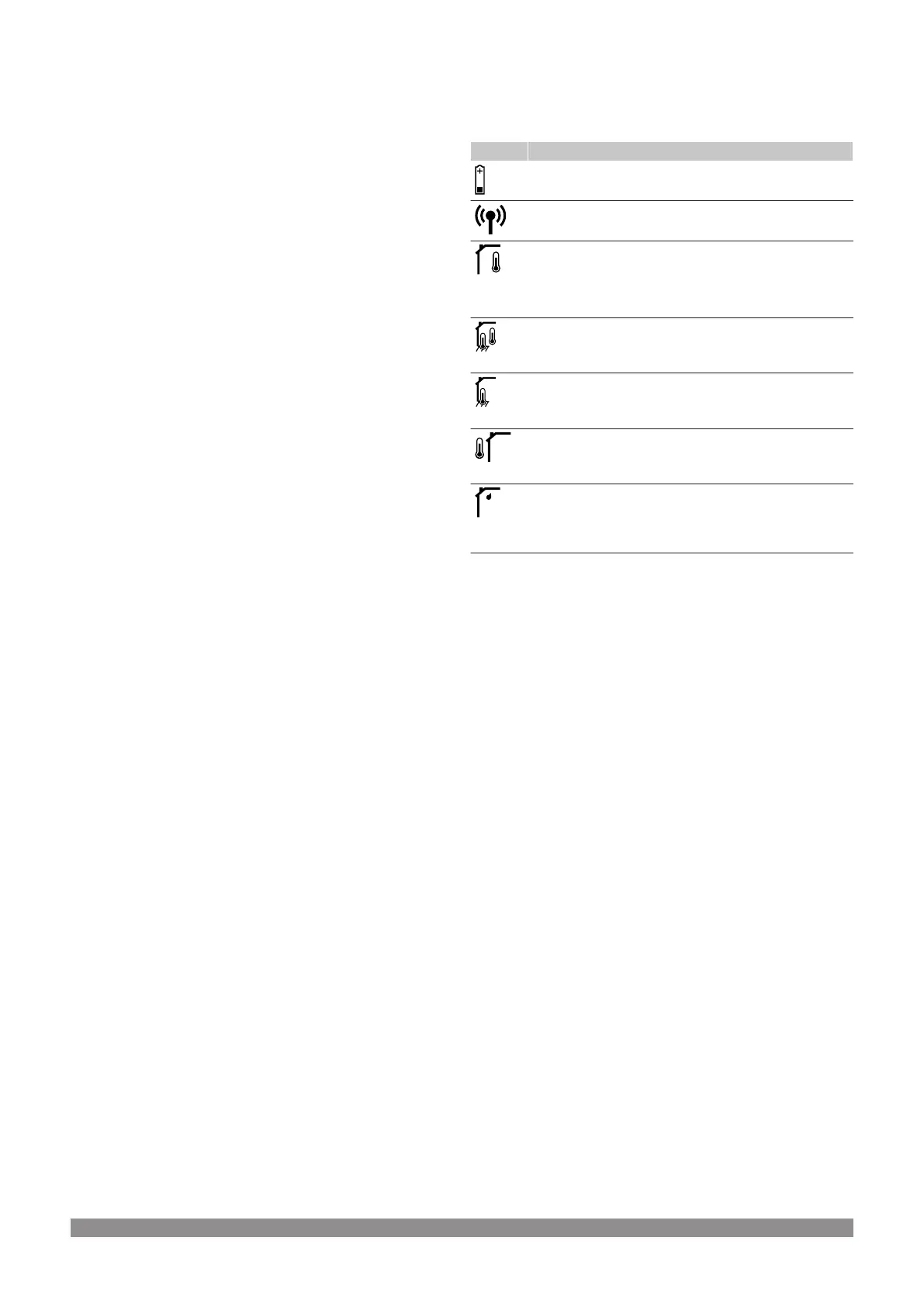

Alarm symbols
Icon Description
Low battery indicator
Communication indicator
Indoor temperature indicator
Remote sensor temperature indicator (RS mode)
The text Err and a flashing sensor icon indicates a faulty
sensor
Indoor temperature with floor temperature limitation indicator
The text Err and a flashing floor sensor icon indicates a faulty
sensor
Floor temperature indicator
The text Err and a flashing floor sensor icon indicates a faulty
sensor
Outdoor temperature indicator
The text Err and a flashing outdoor sensor icon indicates a
faulty sensor
Relative humidity limit reached
This symbol is only shown if cooling is active, and if RH
control is be activated in the Uponor Smatrix PULSE app
(requires communication module).
Battery icon is displayed
• Thermostat battery power is running low
-
Replace the batteries
The display is off
• The batteries are discharged or wrong type of batteries are used
-
Replace the batteries
• The batteries are installed upside down (reverse polarity)
-
Install the batteries correctly
• The battery protection sticker is not removed
-
Remove the battery protection sticker
Radio transmission icon is displayed but the
signals are received only when the thermostat is
close to the antenna
• Transmitter working with reduced signal intensity
-
Force the thermostat to transmit by changing the
temperature setpoint
-
Replace thermostat
• The room controller antenna is installed inside a metal cabinet,
or too close to other shielding objects
-
Change the antenna location. If the problem persists,
contact the installer
• The communication module is installed inside a metal cabinet, or
too close to other shielding objects
-
Change the communication module antenna location. If
the problem persists, contact the installer
• New installations in building shield radio signals (for example,
metal door safe)
-
Try to find a new position for the thermostat and/or the
antenna, or, if possible, move the shielding object
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
103
