Uponor Smatrix Wave PULSE User Manual

3 Uponor Smatrix Wave PULSE system
description
Uponor Smatrix Wave is a management system for underfloor
heating and cooling installations. Comfort, user friendliness and
temperature control for each individual room of a home can be
combined through the various components.
3.1 System overview
Uponor Smatrix Wave consists of a room controller, a communication
module (optional), thermostats, and actuators. The room controller
manages the operation of the actuators when the thermostats detect
a demand for heating or cooling.
The room controller can also manage the room temperature in rooms
with radiators using wireless thermostatic heads.
System optimization and settings (for up to four room controllers) is
facilitated via the Uponor Smatrix PULSE app (connected via the
communication module). The system can function without the
communication module, but with reduced functionality.
Uponor Smatrix Wave is controlled by different types of thermostats.
Designed for maximum comfort, the thermostats communicate with
the room controller by radio link. It is possible to mix the different
types of Uponor Smatrix Wave thermostats in the same installation.
SD0000010

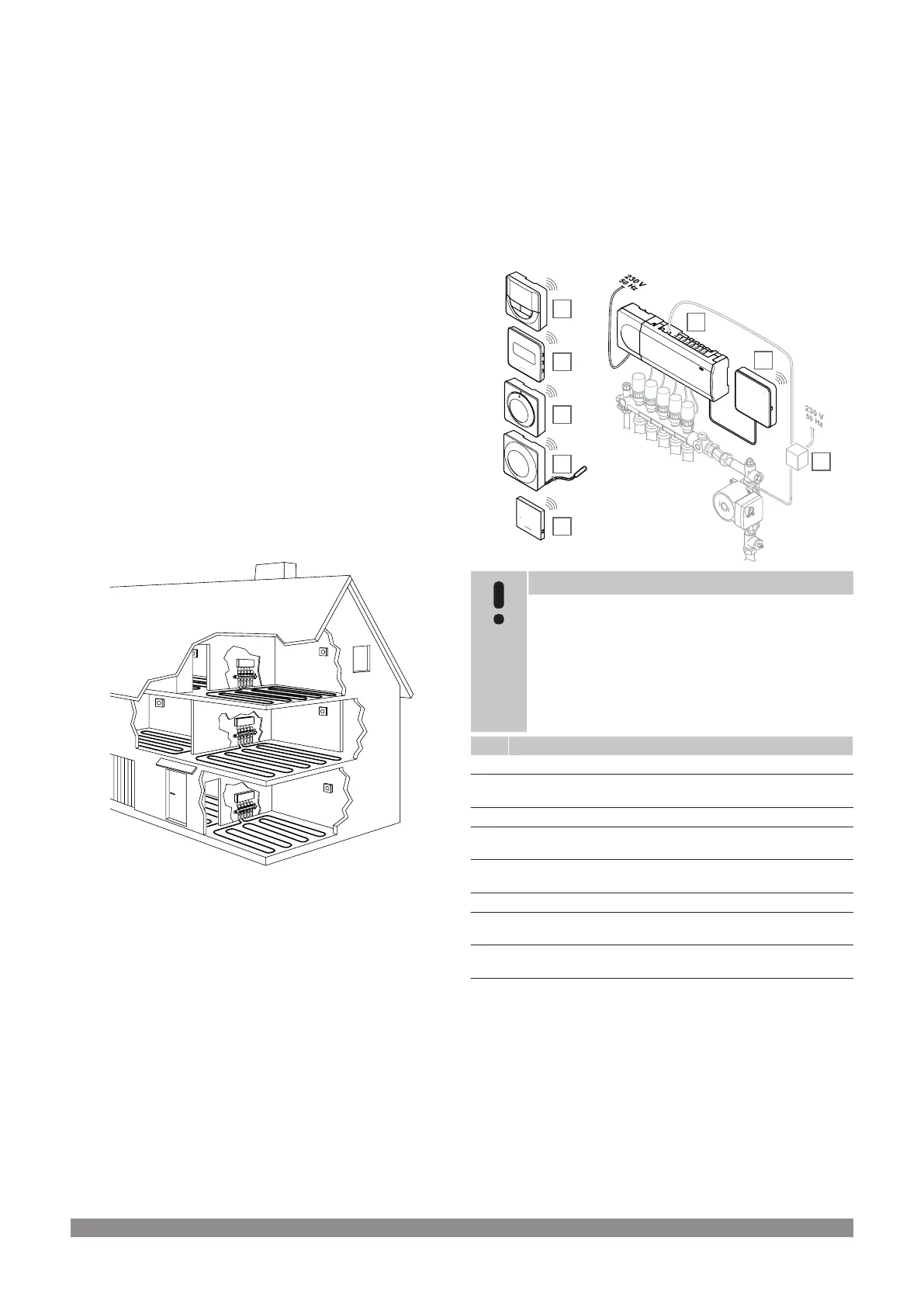

3.2 Example of a system
The illustration below shows Uponor Smatrix Wave with several
installation options and thermostats.
CD0000022
B
A
D
E
F
G
H
C
Note
The floor sensor can be connected to a thermostat
(except the T-165). Which can be used for floor
temperature limitation.
For example, the maximum limitation can protect a
sensitive floor covering from exposure of too high
temperatures when there is a high heating demand. The
minimum limitation can keep a tiled floor warm even
when there is a no general heating demand for the room.
Item Description
A Uponor Smatrix Wave T-166, Page 9 (digital thermostat)
B Uponor Smatrix Wave T-169, Page 10 (digital thermostat with
RH)
C Uponor Smatrix Wave T-165, Page 9 (standard thermostat)
D Uponor Smatrix Wave T-163, Page 9 (public thermostat) with
floor sensor
E Uponor Smatrix Wave T-161, Page 8 (room sensor
thermostat)
F Uponor Smatrix Wave PULSE X-265, Page 7 (room controller)
G Uponor Smatrix PULSE Com R-208, Page 8 (communication
module)
H External connection box for pumps (third-party product, just
schematic example in illustration)
6
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
