Uponor Smatrix Wave PULSE User Manual

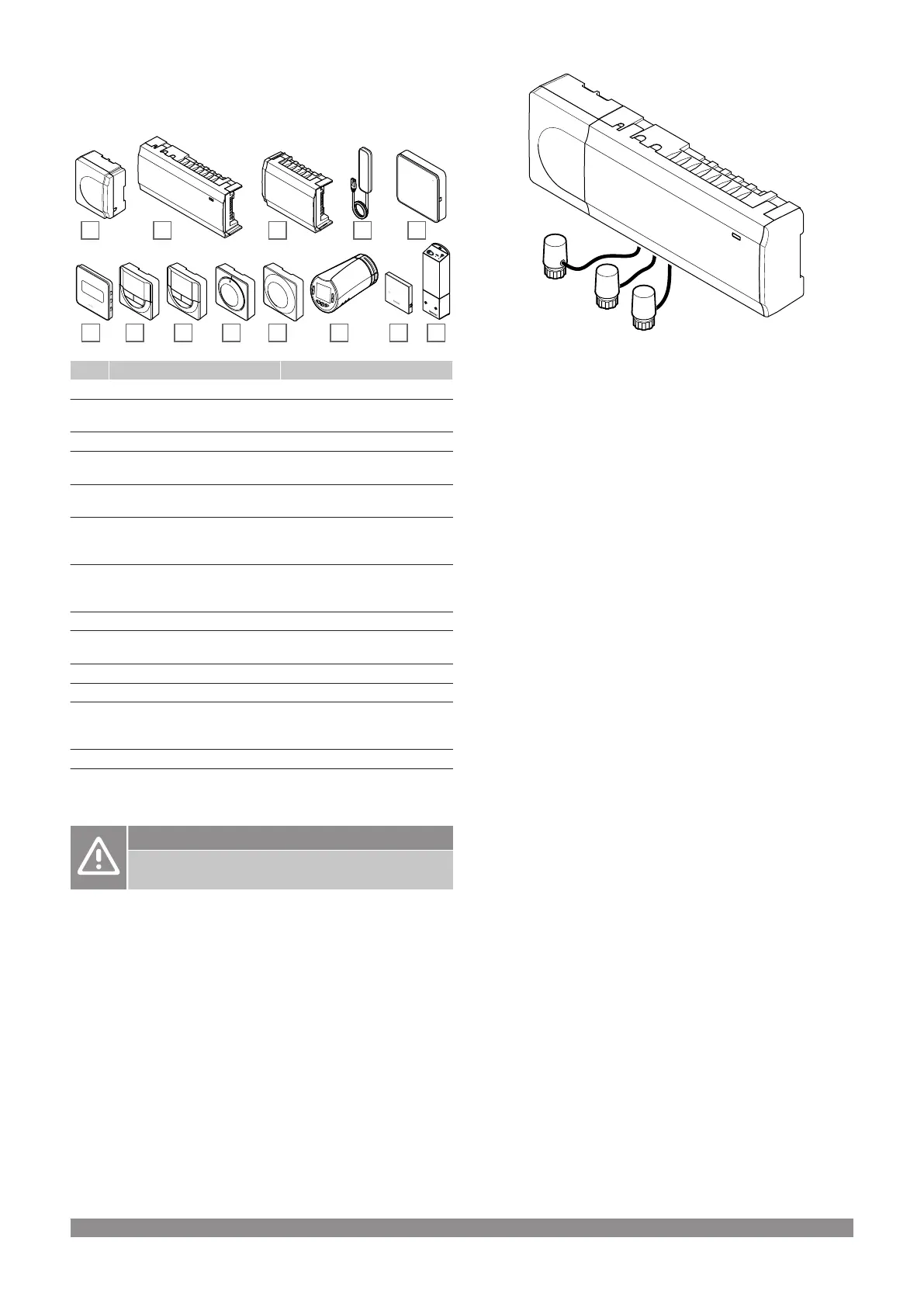

3.3 Uponor Smatrix Wave PULSE
components
CD0000023
BA
D
E
F G H I J K L M
C
Item Uponor designation Description
A Uponor Smatrix A-1XX Transformer module
B Uponor Smatrix Wave PULSE
X-265
Room controller
C Uponor Smatrix Wave M-262 Slave module
D Uponor Smatrix Wave PULSE
A-265
Antenna
E Uponor Smatrix PULSE Com
R-208
Communication module
F Uponor Smatrix Wave T-169 Digital thermostat with relative
humidity sensor and operative
sensor
G Uponor Smatrix Wave T-168 Programmable digital
thermostat with relative
humidity sensor
H Uponor Smatrix Wave T-166 Digital thermostat
I Uponor Smatrix Wave T-165 Standard thermostat with print
on dial
J Uponor Smatrix Wave T-163 Public thermostat
K Uponor Smatrix Wave T-162 Thermostatic head
L Uponor Smatrix Wave T-161 Room sensor thermostat with
relative humidity sensor and
operative sensor
M Uponor Smatrix Wave M-161 Relay module
Room controller
Caution!
Only 24 V Uponor actuators are compatible with the
room controller.
The room controller operates the actuators, which in turn affect the
flow of the supply water, to change the indoor temperature using
information transmitted from registered thermostats and system
parameters.
Up to six channels and eight actuators can be operated by the room
controller which is typically located near the hydraulic system
manifolds.
The illustration below shows the room controller with the transformer
module and actuators.
CD0000024
24V
24V
24V
Uponor Smatrix Wave PULSE X-265
Main characteristics:
• Integrated Dynamic Energy Management functions such as
autobalancing (on by default). Other functions such as comfort
setting, room bypass, and supply temperature monitoring
requires Uponor Smatrix PULSE app (requires communication
module).
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room thermostats.
• Heating/cooling function (advanced), and/or Comfort/ECO mode
switched by dry contact, public thermostat, or Uponor Smatrix
PULSE app (requires communication module).
• Separate relays for control of pump and boiler (other control
functionality available via communication module and Uponor
Smatrix PULSE app).
• Valve and pump exercise.
• Relative humidity control (Uponor Smatrix PULSE app required).
• Control of combined underfloor heating/cooling and ceiling
cooling, or fancoils, (requires communication module and
Uponor Smatrix PULSE app).
• Lower indoor temperature in heating mode, or increase indoor
temperature in cooling mode, with ECO mode. ECO mode is
activated in all rooms at once using a dry contact, public
thermostat, or Uponor Smatrix PULSE app (requires
communication module). To activate ECO mode in a single room
use a programmable digital thermostat, or ECO profiles.
Options:
• App connectivity via communication module (remote connection
requires connection to Uponor cloud services).
• The room controller can be expanded with a slave module which
adds an extra six thermostat channels and six actuator outputs.
• Connect up to four room controllers into one system (requires
communication module and the Uponor Smatrix PULSE app).
• Modular placement (detachable transformer).
• Cabinet or wall mounted (DIN rail or supplied screws).
• Free placement and orientation when installing the room
controller (except the antenna/communication module which
must be installed vertically).
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
7
