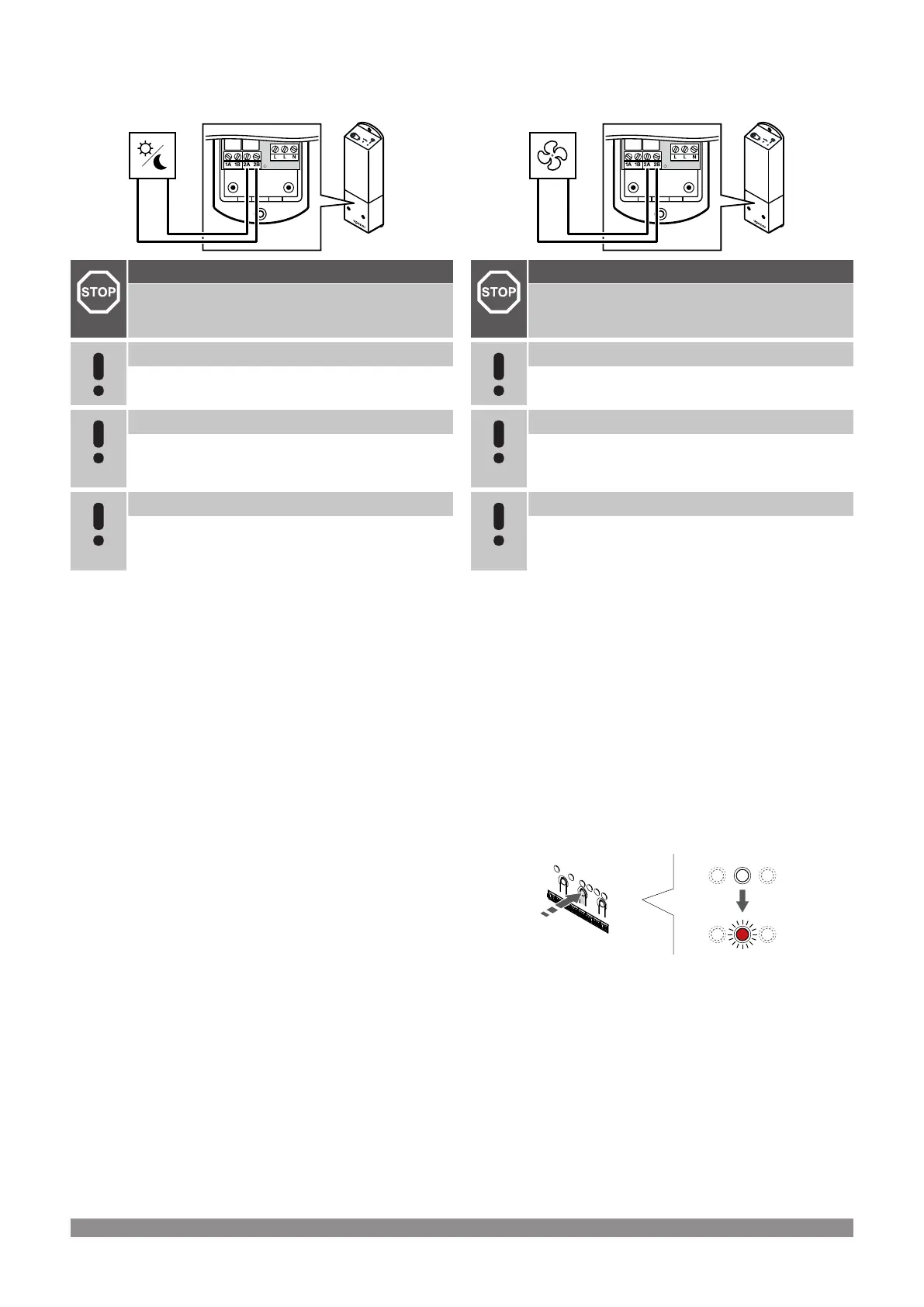

Uponor Smatrix Wave PULSE User Manual

Connect Comfort/ECO (requires
communication module)
WD0000016
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Note
This connection requires a dry contact sensing input in
the other unit.
Note
This relay function requires a communication module,
and must be set in Installer settings during initial
configuration, or in the System settings menu.
Note
In systems with a communication module, make sure that
relay module, relay 2, is set to Comfort/ECO in Installer
settings.
When the relay is closed the external component is set to ECO.
1. Ensure that the power is disconnected from both the relay
module and the other unit.
2. Connect the cable to/from the other unit to the connector 2A and
2B on the relay module.
Connect ventilation unit (requires
communication module)
WD0000012
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Note
This connection requires a dry contact sensing input in
the ventilation unit.
Note
This relay function requires a communication module,
and must be set in Installer settings during initial
configuration, or in the System settings menu.
Note
In systems with a communication module, make sure that
relay module, relay 2, is set to Comfort/ECO in Installer
settings.
The relay is closed when the Uponor Smatrix system is set to ECO.
The ventilation must be setup to lower its speed when the input is
closed (ECO), and to switch back when the input is opened again
(Comfort).
1. Ensure that the power is disconnected from both the relay
module and the ventilation unit.
2. Connect the cable to/from the ventilation unit to the connector
2A and 2B on the relay module.
9.4 Register relay module to room
controller
1. Enter registration mode
3 s
SI0000065
Press and hold the OK button on the room controller until the LED for
channel 1 (or the first unregistered channel) flashes red.
Uponor Smatrix Wave PULSE
|
Installation and operation manual
|
63
