Uponor Smatrix Wave PULSE User Manual

Note
It is recommended to register at least one room
thermostat before registering a system device.
Note
Make sure all components are connected to the relay
module before registering.

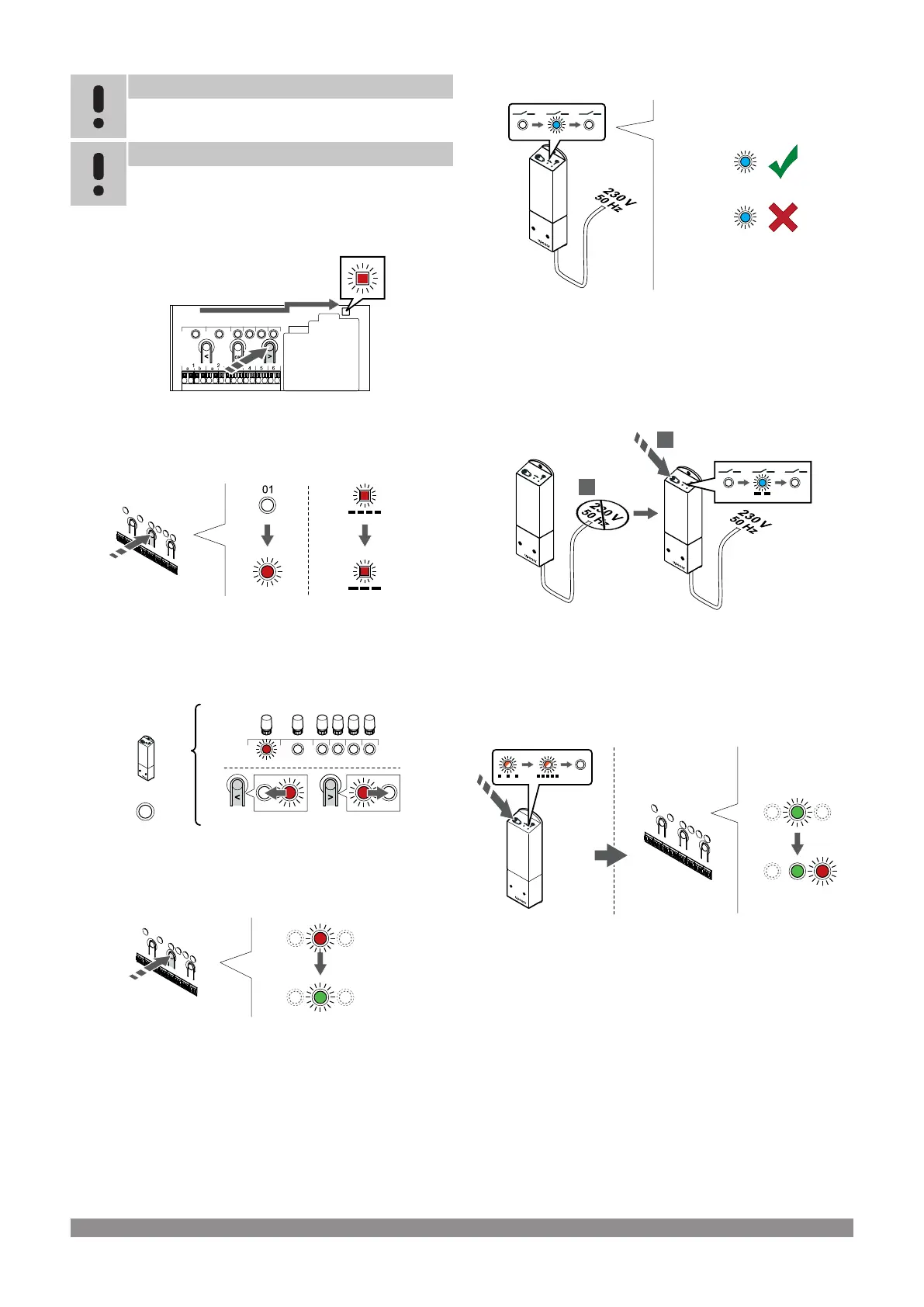

2. Move the channel pointer to the power LED
SI0000082
Use buttons < or > to move the pointer to the power LED (LED
flashes red).
3. Enter system device registration mode
SI0000083
Press the
OK button to enter system device registration mode (power
LED). The power LED starts flashing according to the pattern long
blink, short pause, long blink. Channel 1 starts flashing red.
4. Select a channel
02
SI0000080
1 65432
Use buttons < or > to move the pointer (LED flashes red) to channel
2.
5. Lock selected channel
SI0000071
Press the OK button to select the channel for registration. The LED
for the selected channel starts flashing green.
6. Power up the relay module
1x
2x
SI0000040
Power up the relay module and count the number of flashes of LED 2
(blue) to ensure it is in normal run mode.
LED 2: 1 flash = Normal (default)
LED 2: 2 flashes = Two stage additional cooling
Change relay module run mode
1
2
SI0000041
1. Power down the relay module and wait about 10 seconds.
2. Press and hold the button on the relay module while turning it on
again.
LED 2 flashes once (Normal run mode).
7. Register relay module
SI0000081
Press and hold the register button on the relay module until the LEDs
on the module start flashing slowly.
The selected channel LED in the room controller turns fixed green
and the LEDS on the relay module start flashing fast again, to turn off
a few seconds later.
64
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual
