Uponor Smatrix Wave PULSE User Manual

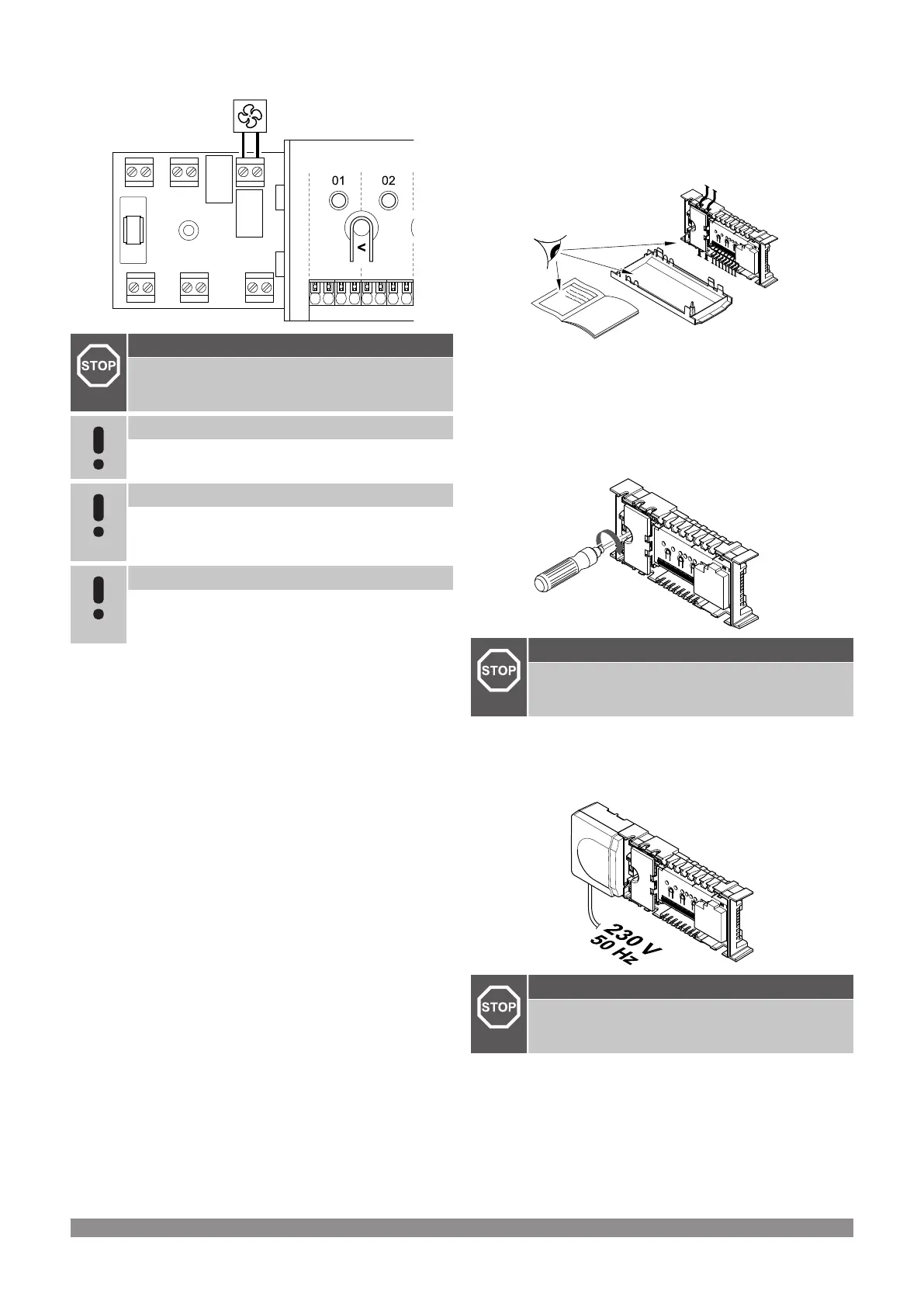

Ventilation (requires communication module)
RELAY 2 (BOILER)
WD0000006
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Note
This connection requires a dry contact sensing input in
the ventilation unit.
Note
This relay function requires a communication module,
and must be set in Installer settings during initial
configuration, or in the System settings menu.
Note
In systems with a communication module, make sure that
room controller, relay 2 (Boiler), is set to Comfort/ECO in
Installer settings.
1. Ensure that the power is disconnected from both the room
controller and the ventilation unit.
2. Remove the screw and open the cover for the optional
connections compartment.
3. Route the cable from/to the ventilation unit via a cable entry.
4. Connect the ventilation unit to the connection labelled Relay 2
(BOILER).
5. Secure the cable to/from the ventilation unit with a cable clamp
in the enclosure.
6. Close and secure the lid to the optional connections
compartment.
Relay function
The relay is closed when the Uponor Smatrix system is set to ECO.
The ventilation must be setup to lower its speed when the input is
closed (ECO), and to switch back when the input is opened again
(Comfort).
This function requires a communication module, and to change the
setting of the relay output (Installer settings) to Comfort/ECO.
5.10
Connect room controller to
AC power
1. Check wiring
SI0000037
Check that all wiring is complete and correct:
• Actuators
• GPI connection (Heating/cooling switch)
• Relay connections (Circulation pump)
2. Close 230 V AC compartment
SI0000038
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Ensure that the 230 V AC compartment of the room controller is
closed and the fixing screw is tightened.
3. Power up the room controller
SI0000039
Warning!
Risk of electrical shock! Electrical installation and service
behind secured 230 V AC covers must be carried out
under the supervision of a qualified electrician.
Connect the power cable to a 230 V AC wall socket, or if required by
local regulations, to a junction box.
32
|
Uponor Smatrix Wave PULSE
|
Installation and operation manual

Uponor Smatrix Wave PULSE Specifications

General

Type	Wireless Temperature Controller
Communication Protocol	RF (Radio Frequency)
Compatibility	Uponor Smatrix Wave system
Operating Temperature Range	0°C to 50°C
Display	LCD
Control	Wireless
