Maintenance
Description
item No.
2AV/X
1-4-102
1-4
U993 Outputting a VTC-PG pattern
Description
Selects and outputs a VTC-PG pattern created in the copier.
Purpose
When performing respective image printing adjustments, used to check the machine status apart from that of
the scanner with a non-scanned output VTC-PG pattern.
Method
1. Press the start key.
2. Select the VTC-PG pattern to be output using the copy exposure adjustment keys.

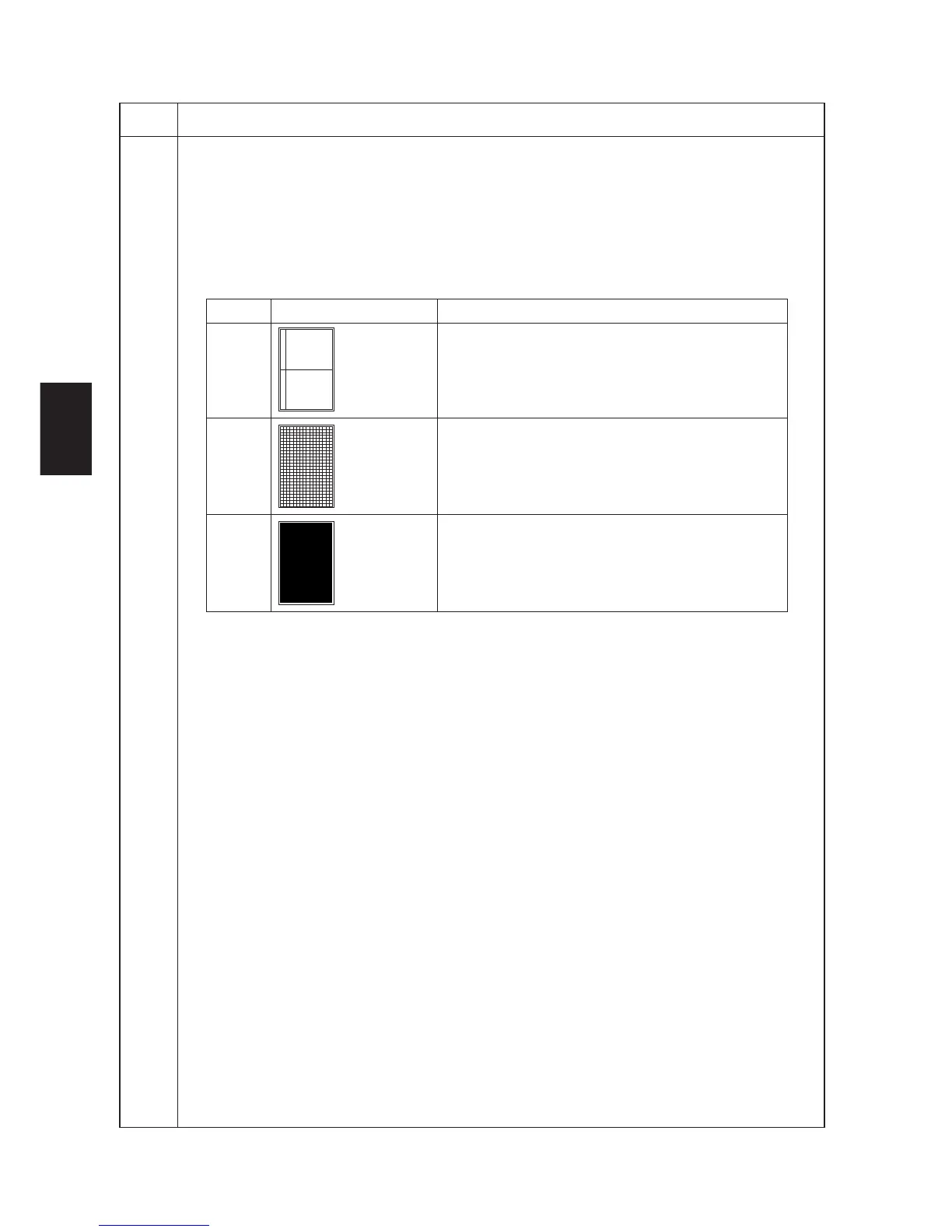

Display PG pattern to be output Purpose
0
• Center line adjustment
1
• Lateral squareness adjustment
• Magnification adjustment
2
• Checking the fixing performance (fixing pressure)
3. Press the interrupt key. The machine enters the PG pattern output mode.
4. Press the start key. A VTC-PG pattern is output.
Completion
Press the stop/clear key. The indication for selecting a maintenance item No. appears.
