2AV/X
1-6-6
1-6
(2) Detaching and refitting the bypass paper feed pulley
Follow the procedure below to replace the bypass paper feed pulley.
Procedure
1. Open the bypass tray, paper conveying unit
and front cover and then remove the image
formation unit (see page 1-6-40).

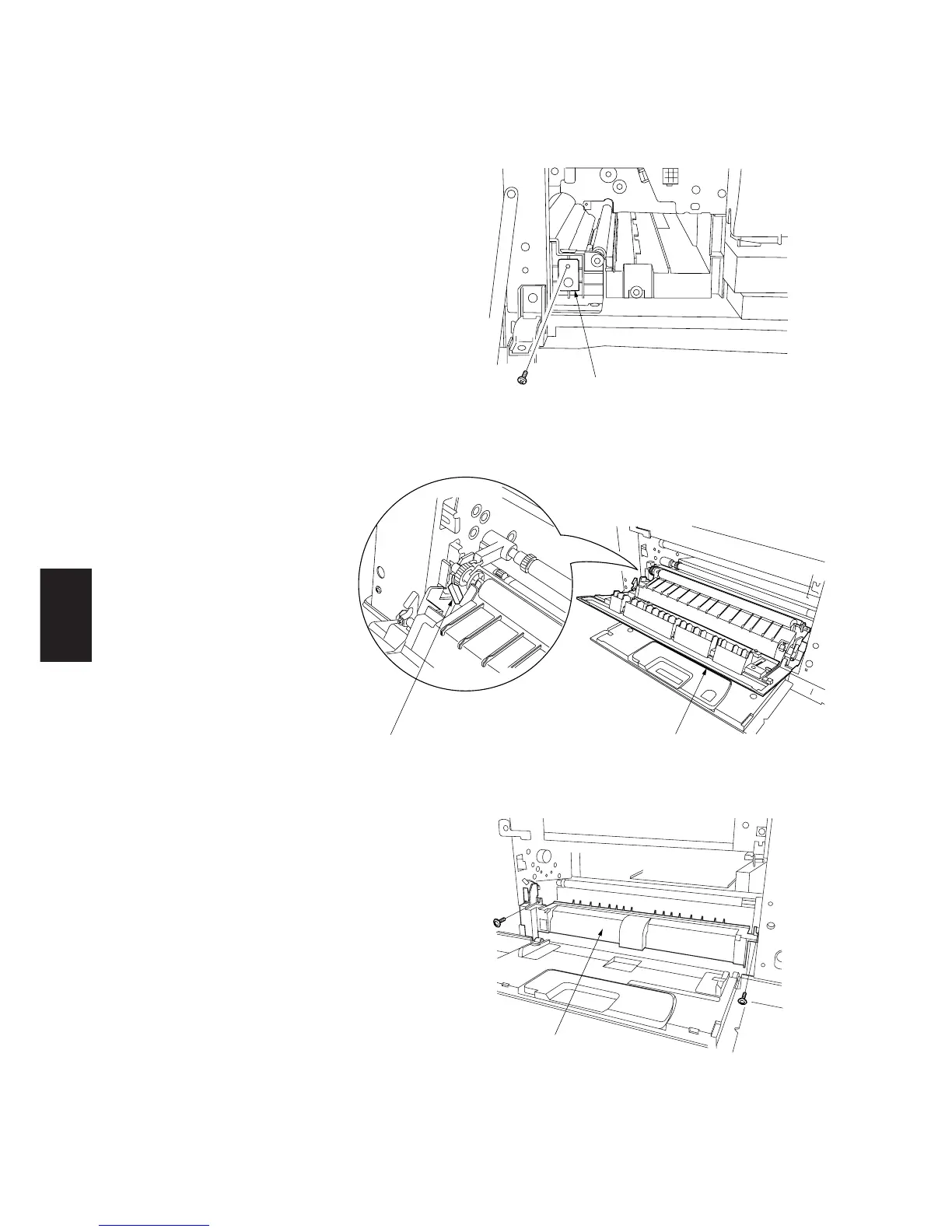

2. Remove the screw and then the fulcrum pin.
Figure 1-6-9
3. Disconnect the connector and remove the
paper conveying unit.
Figure 1-6-10
4. Remove the two screws holding the lower left
cover and then the cover.
Figure 1-6-11
Fulcrum pin
Paper conveying unit
Connector
Lower left cover
To Next Page
