(2) Detaching and refitting the fixing unit thermistor
Follow the procedure below to replace the fixing unit thermistor.
Procedure
1. Remove the fixing unit (see page 1-6-48).
2. Remove the screw and detach the connector,
and then remove the fixing unit thermistor.
3. Replace the fixing unit thermistor and refit all
the removed parts.

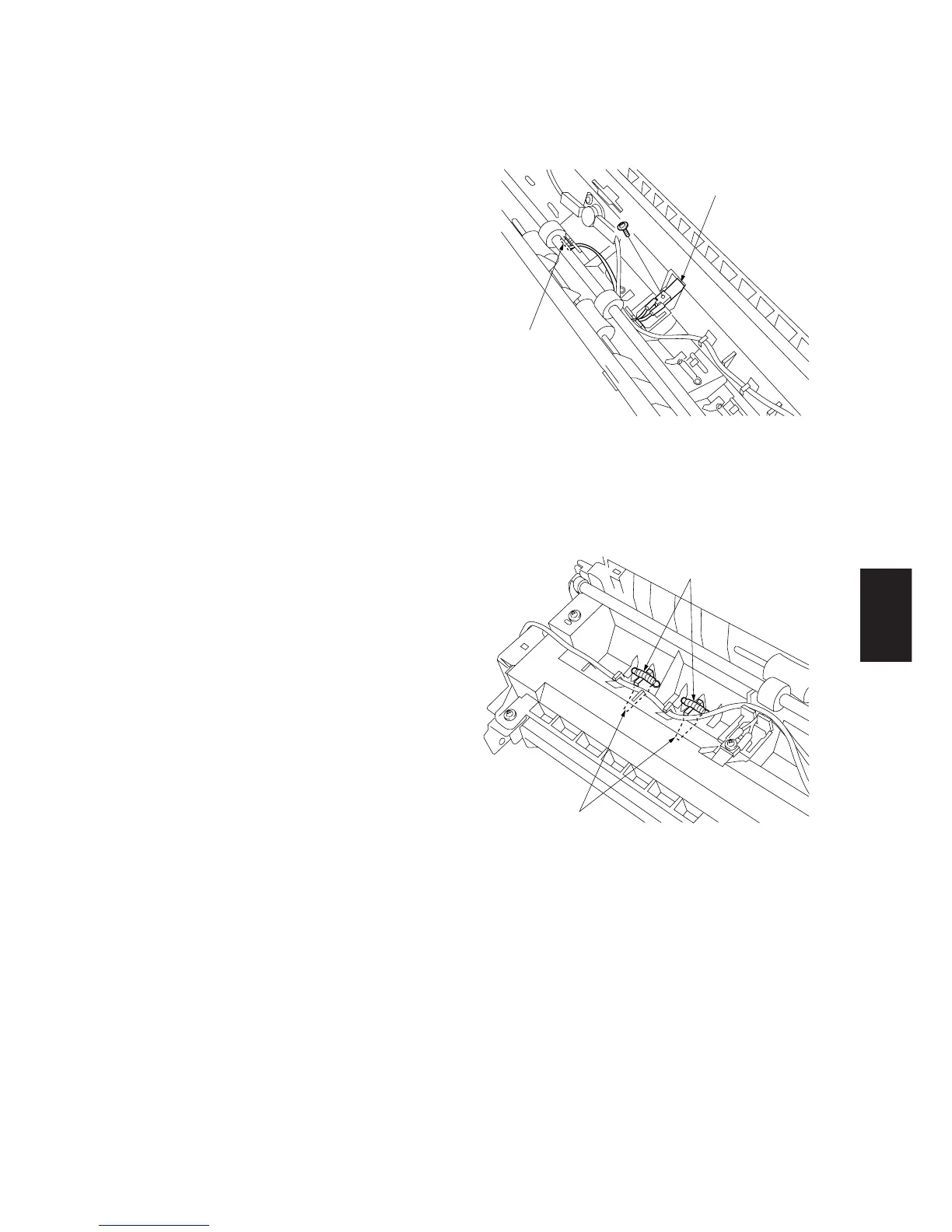

Figure 1-6-70
(3) Detaching and refitting the heat roller separation claws
Follow the procedure below to replace the heat roller separation claws.
Procedure
1. Remove the fixing unit (see page 1-6-48).
2. Remove the spring from each of the five heat
roller separation claws and then the claws.
3. Replace the heat roller separation claws and
refit all the removed parts.
Figure 1-6-71
Fixing unit thermister
Connector
Heat roller separation claws
Springs
