2AV/X
1-5-1
1-5
1-5-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper misfeed occurs, the copier immediately stops copying and displays the jam location on the operation panel.
Paper misfeed counts sorted by the detection condition can be checked in maintenance item U903.
To remove paper jammed in the copier, open the front cover, paper conveying unit or drawer.
Paper misfeed detection can be reset by opening and closing the respective covers to turn safety switch 1, 2 or 3* off and
on.
*Standard for 20 cpm copier/optional for 15 cpm copier.

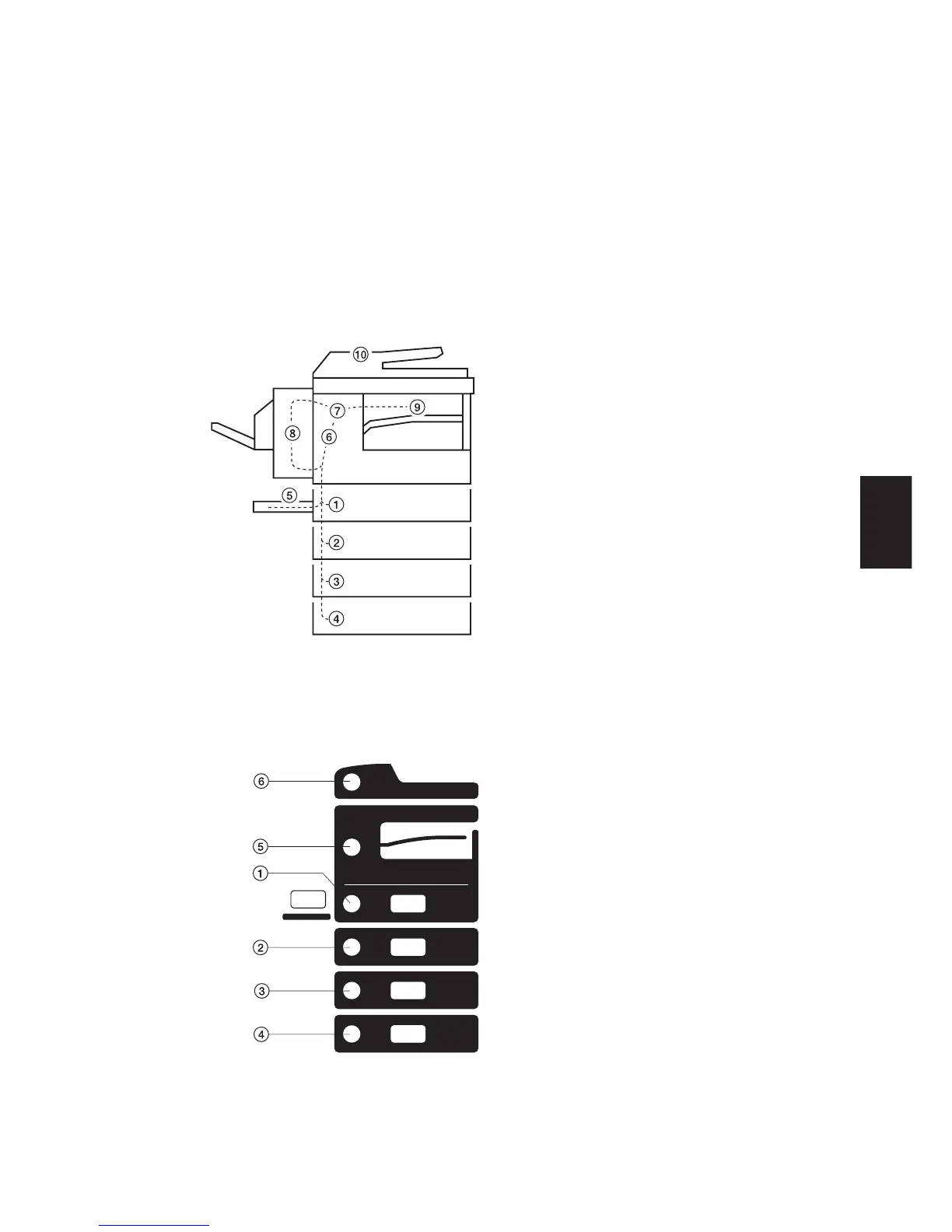

• 20 cpm copier
Figure 1-5-1
• 15 cpm copier
Figure 1-5-2
1 Upper drawer
2 Lower drawer
3 Optional drawer 1*
4 Optional drawer 2*
5 Bypass tray
6 Paper conveying section
7 Feedshift section
8 Duplex unit*
9 Inner tray
0 STDF*/SRDF*
*Optional.
1 Upper drawer
2 Lower drawer*
3 Optional drawer 1*
4 Optional drawer 2*
5 Paper conveying section
6 STDF*
*Optional.
