Utax CD 1020 User Manual

2AV/X
1-1-10
1-1

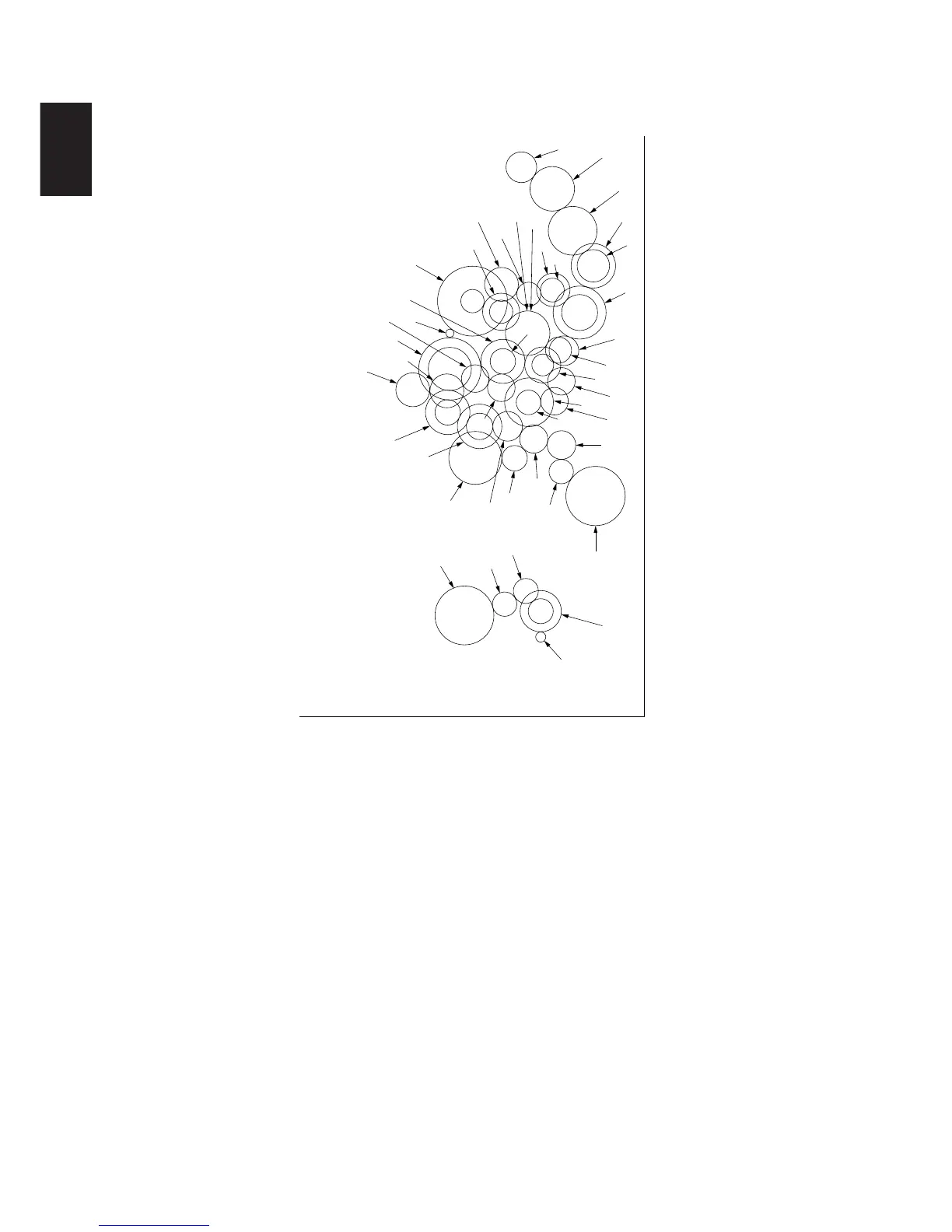

(2) Drive system 2 (drive motor drive train)
Figure 1-1-6
fl
ˆ
¨
Á
‰
ˇ
›
‹
6
⁄
*
(
)
¤
·
9
8
@
$
#
!
%
0
^
‚
Î
Í
Å
”
Ø
Œ
„
´
7
&
1
2
3
4
5
fi
—
‡
As viewed from machine rear
* Optional for the 15 cpm copier/standard for the 20 cpm copier.
1 Drive motor gear
2 Gear 58/30
3 Gear 48/27
4 Gear 60
5 Drum gear
6 Transfer roller gear
7 Gear 52/30
8 Gear 32/16
9 Gear 32/16
0 Gear 20
! Gear 20
@ Gear 20
# Idle gear 16
$ Bypass paper feed clutch gear
% Gear 16
^ Upper paper feed clutch gear
& Gear 30
* Gear 26/14
( Gear 20
) Registration clutch gear
⁄ Gear 15
¤ Gear 18
‹ Gear 20
› Gear 34/23
fi Gear 24
fl Gear 15
‡ Spiral gear 17
— Blade thrust gear 21
· Gear 16
‚ Idle gear
ΠGear 19
„ Gear 23
´ Gear 23
‰ Gear 29
ˇ Fixing gear 19
Á Heat roller gear 35
¨ Idle gear
ˆ Gear 21
Ø Drawer drive motor gear*
” Gear 16/52*
Å Gear 18*
Í Gear 18*
Î Lower paper feed clutch gear*
