Utax CD 1020 - Detaching and Refitting the Heat Roller

2AV/X
1-6-51
1-6

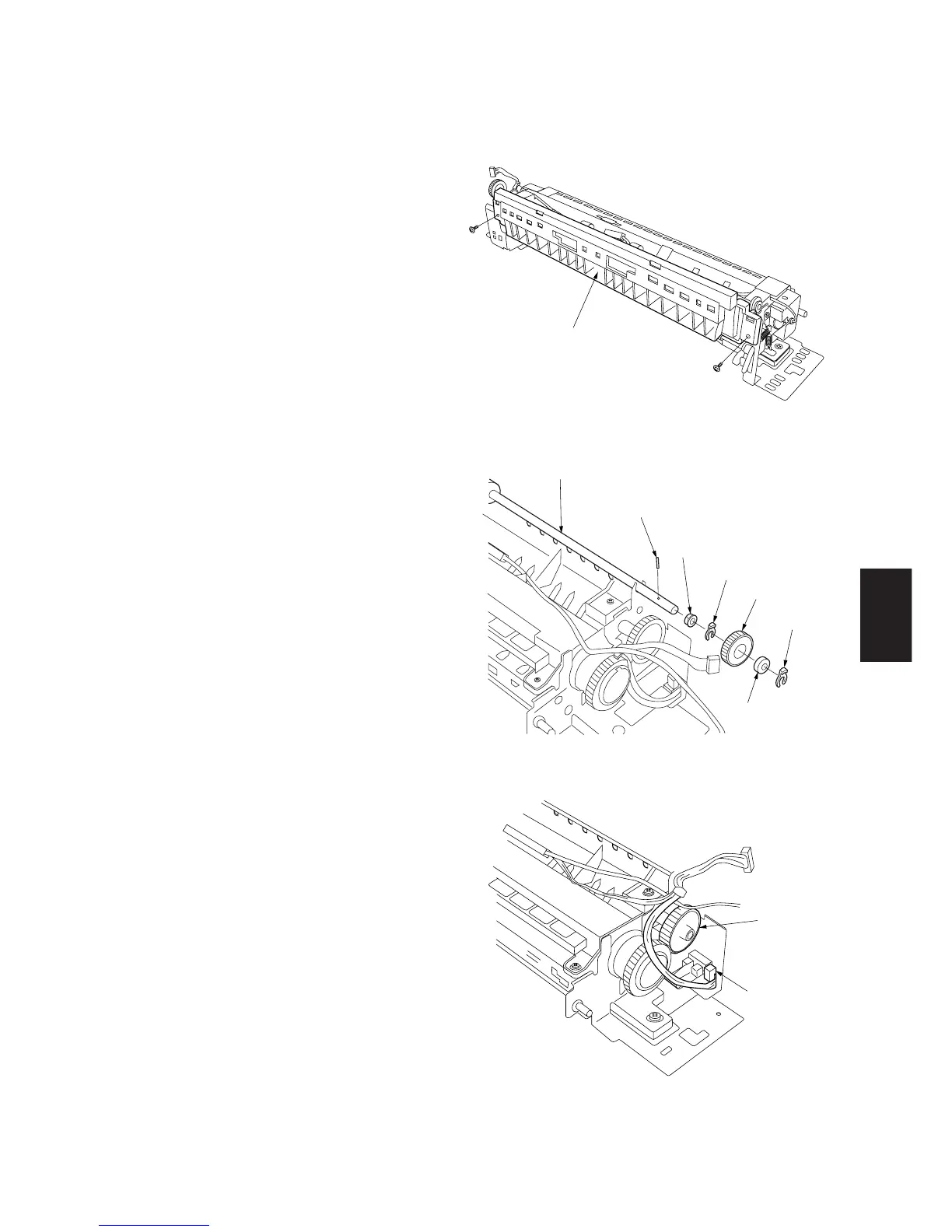

(5) Detaching and refitting the heat roller
Follow the procedure below to replace the heat roller.
Procedure
1. Remove the fixing unit (see page 1-6-48).
2. Remove the fixing unit thermistor, fixing
heater and heat roller separation claw
assemblies (see pages 1-6-49 and 50).
3. Remove the two screws holding the eject
guide and then the guide.
Figure 1-6-75
4. Remove the two stop rings, collar, gear,
spring pin and bushing on the rear of the
eject roller and then remove the eject roller.
Figure 1-6-76
5. Remove the gear and detach the eject switch
connector.
Figure 1-6-77
Eject guide
Eject roller
Spring pin
Bushing
Stop ring
Stop ring
Collar
Gear
Connector
Gear
