1-6-7 Transfer section
(1) Detaching and refitting the transfer roller assembly
Follow the procedure below to replace the transfer roller assembly.
Procedure
1. Open the bypass tray and paper conveying
unit.
2. Remove the transfer roller assembly.
Caution: Remove the transfer roller assembly
carefully to prevent the residual toner in the
transfer roller assembly from spilling.
3. Replace the transfer roller assembly and refit
all the removed parts.

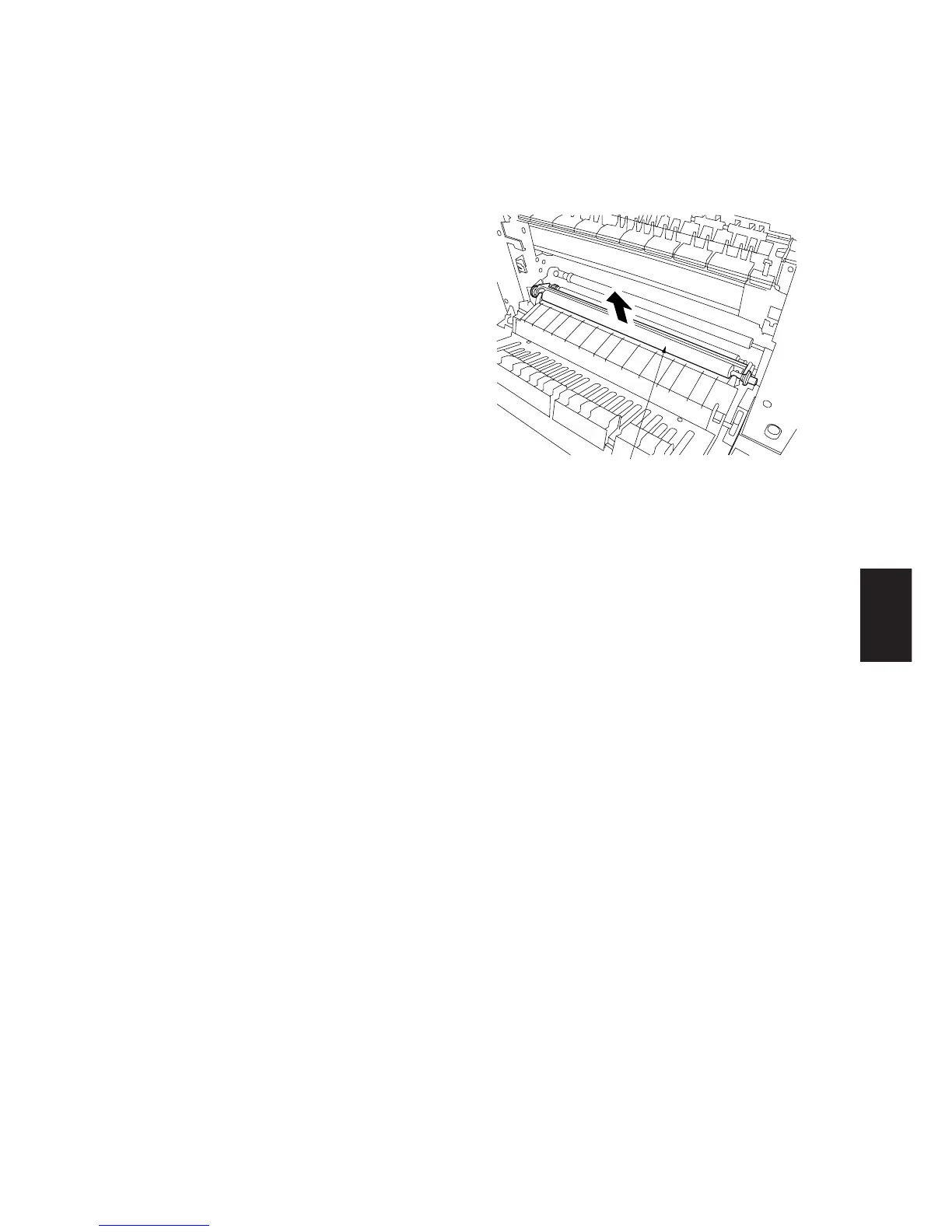

Figure 1-6-63
Transfer roller assembly
