Utax CD 1020 User Manual

2AV/X
1-6-15
1-6

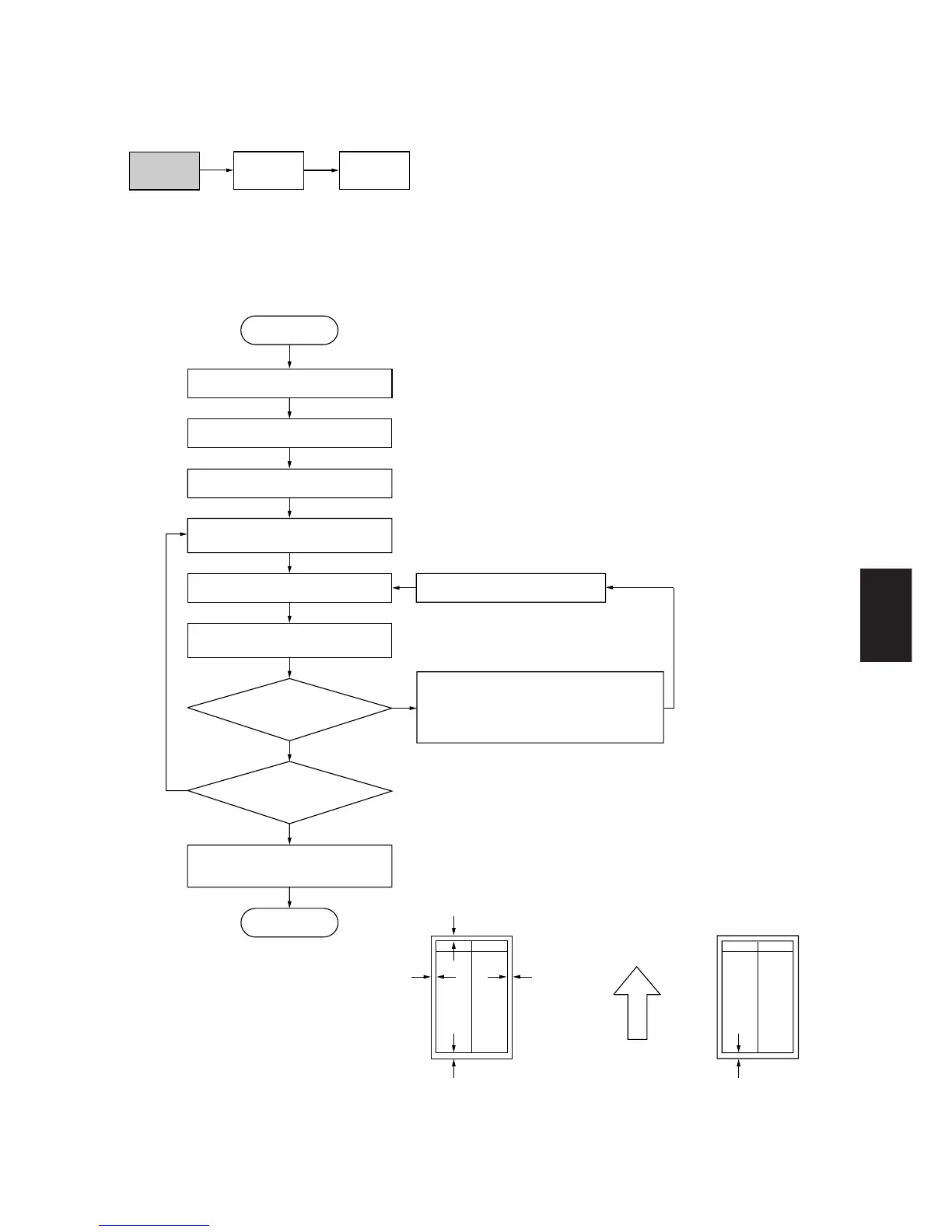

(6-4) Adjusting the margins for printing
Make the following adjustment if the margins are not correct.
U402
U403
(P. 1-6-38)
U404
(P. 1-4-46)
Caution:
Check the copy image after the adjustment. If the margins are still incorrect, perform the above adjustments in
maintenance mode.
Procedure
• 20 cpm
Yes
No
Start
Enter maintenance mode.
Enter “402” using the numeric keys.
Press the start key.
Press the start key to output a test
pattern using A3/11" × 17" paper.
Press the start key.
The new setting is stored.
Setting range (initial setting/change in value per step)
Printer leading edge margin: 0 – +10 (3/0.5 mm)
Printer left/right margin: –5 – +10 (2.5/0.5 mm)
Printer trailing edge margin (standard size): –5 – +10 (4.5/0.5 mm)
Printer trailing edge margin (non-standard size): –5 – +5 (3/0.25 mm)
Printer trailing edge margin for duplex copying
(second face): –5 – +10 (4.5/0.5 mm)
Select the items to be adjusted using
the cursor up/down keys.
Are the margins correct?
Change the setting.
Increasing the value using the cursor right
key makes the margin winder.
Decreasing the value using the cursor left
key makes the margin narrower.
Press the interrupt key.
LEAD : printer leading edge margin
AC : printer left/right margins
TRAIL : printer trailing edge margin
(standard size)
D CUT : printer trailing edge margin
(non-standard size)
TRAIL2 : printer trailing edge margin for
duplex copying (second face)
Yes
No
Press the stop/clear key to
exit maintenance mode.
End
Proceed to
another mode?
Ejection direction
(reference)
Printer trailing edge margin
for duplex copying (3 ± 2.5 mm)
Printer leading edge margin
(3 ± 2.5 mm)
Printer
left margin
(2.5
+2.0
mm)
Printer
right margin
(2.5
+2.0
mm)
Printer trailing edge margin
(3 ± 2.5 mm)
Duplex copy mode
(second face, A3/11" × 17")
Normal copy mode
(A3/11" × 17")
–1.5–1.5
