2AV/X
1-6-14
1-6
• 15 cpm
Yes
No

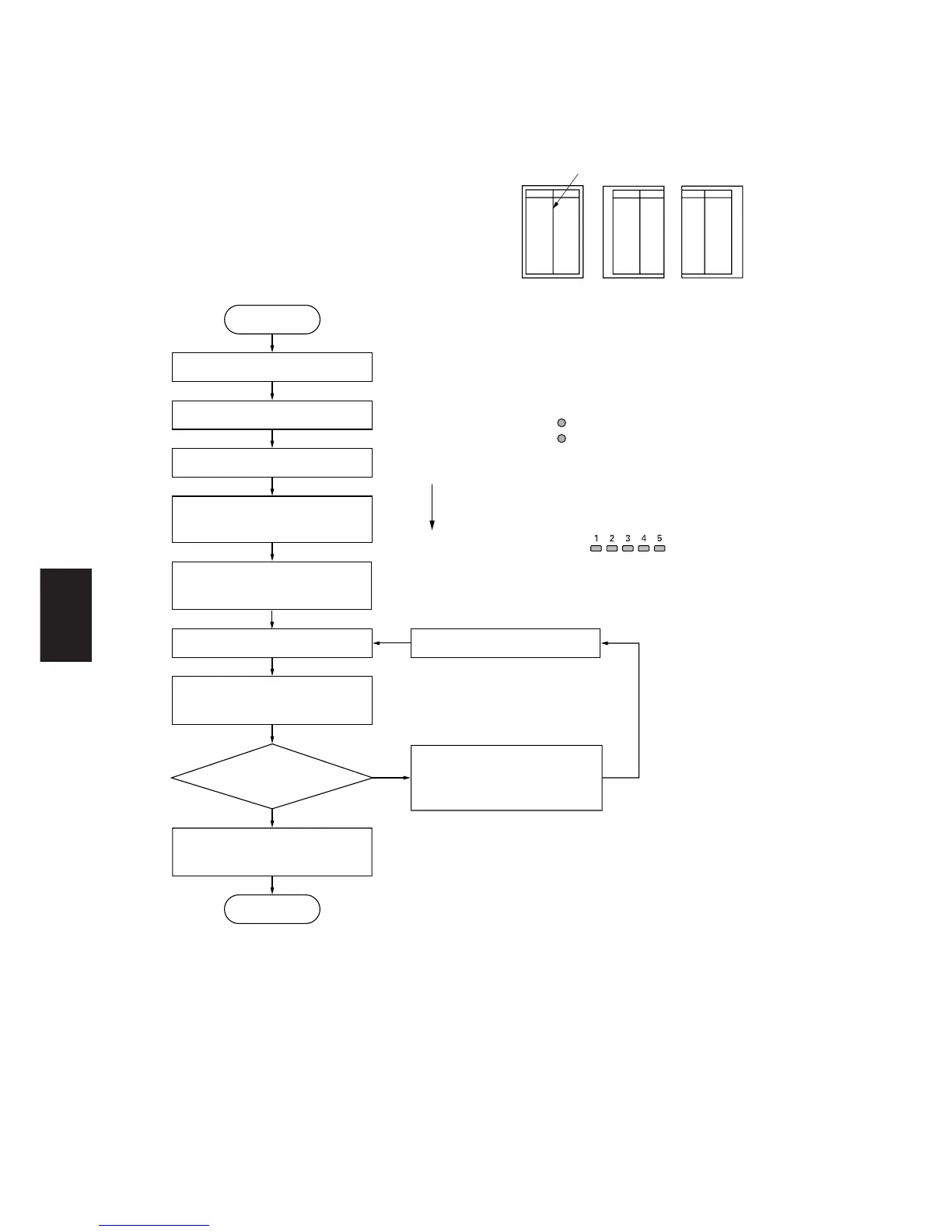

Start
Enter maintenance mode.
Enter “034” using the numeric keys.
Press the start key.
Press the interrupt key.
Press the start key to output a test
pattern.
Is the image correct?
Press the start key.
The new setting is stored.
Press the stop/clear key to exit
maintenance mode.
End
Press the image mode selection key
to light the photo and text indicators.
For output example 1, decrease
the value using the zoom (–) key.
For output example 2, increase
the value using the zoom (+) key.
Setting range: –5.0 – +5.0
Initial setting: 0
Changing the value by 1 moves the
center line by 1 mm.
Select the item to be adjusted
using the copy exposure
adjustment keys.
● Image mode selection key
Photo and text indicators
are on
● Copy exposure adjustment keys
Setting 1 : Upper drawer
2 : Bypass tray
3 : Lower drawer (option)
4 : Optional drawer 1
5 : Optional drawer 2
: Center line adjustment
Text
Center line of printing
Correct image Output
example 1
Output
example 2
Figure 1-6-21b
To Next Page
