2-1-2 Main charging section
The main charging section consists of the drum and main charger assembly. The drum is electrically charged by means
of a grid to form a latent image on the surface. The shield grid ensures that the charge is applied uniformly.
Tungsten wire
Drum
Main charger assembly
Shield grid

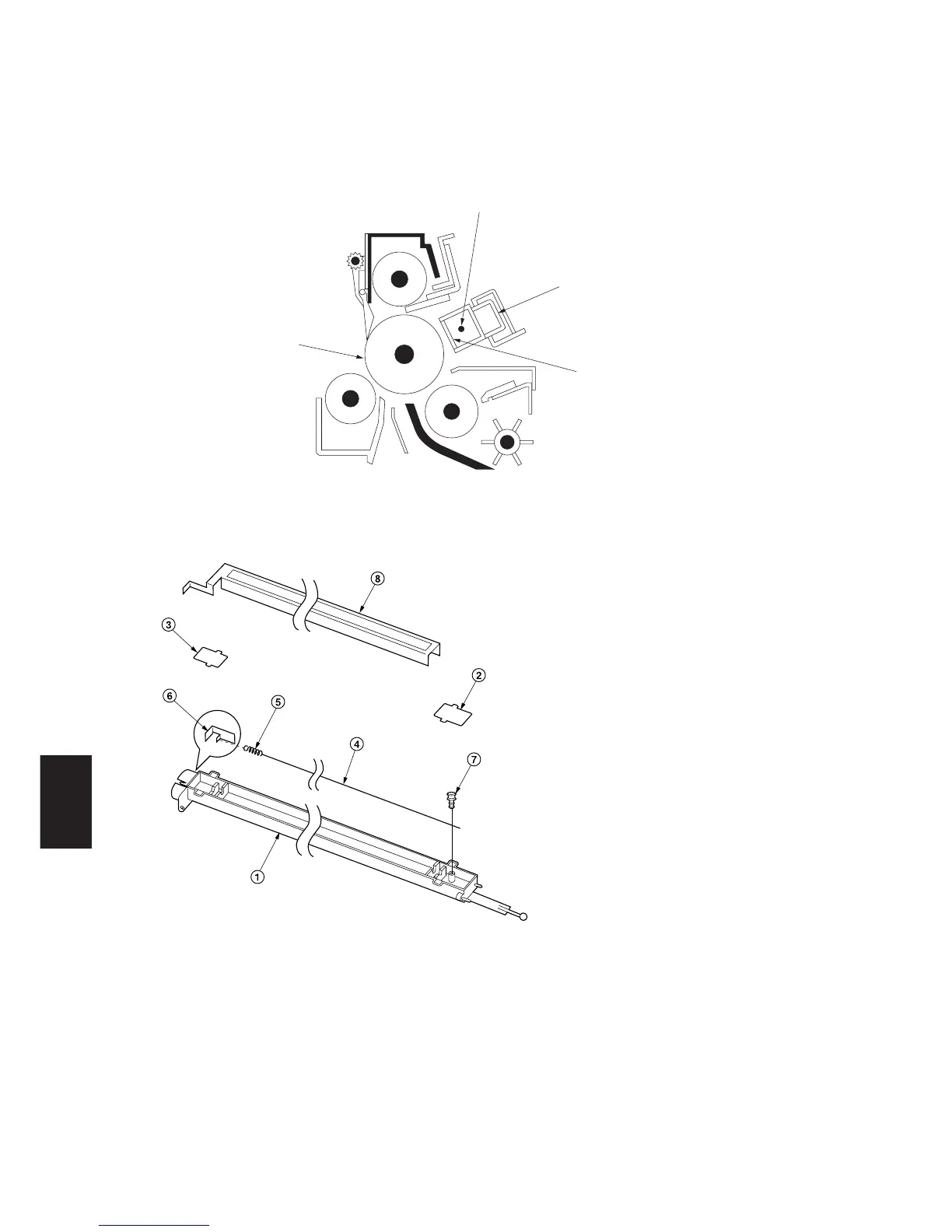

Figure 2-1-3 Main charging section
Figure 2-1-4 Main charger assembly
1 Main charger housing
2 Main charger front lid
3 Main charger rear lid
4 Tungsten wire
5 Charger spring
6 Charger terminal
7 Charger pin
8 Shield grid
