1-6-2 Paper feed section
(1) Detaching and refitting the upper and lower paper feed pulleys
Follow the procedure below to replace the paper feed pulleys.
Procedure
• Upper paper feed pulleys
1. Open the bypass tray and paper conveying
unit and then remove the rear and rear left
covers. Pull out the upper drawer.
2. Remove the screw and then the handle (rear
side of the machine).
3. Remove the two screws, release the wires
from the clamps and then detach the shaft
handle retainer at the machine rear.

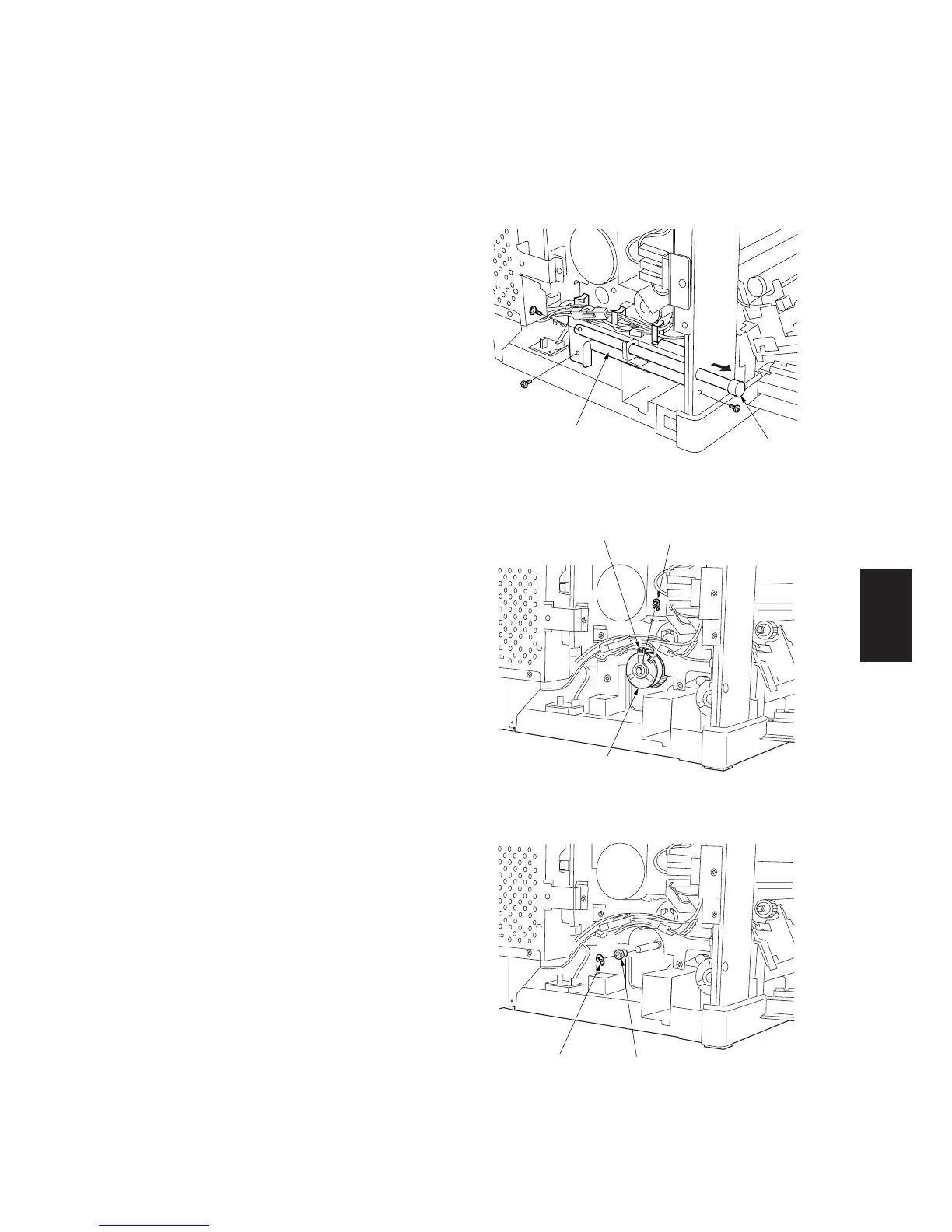

Figure 1-6-1
4. Remove the stop ring and then the paper
feed clutch.
• When refitting, insert the cutout in the paper
feed clutch over the stopper on the copier.
Figure 1-6-2
5. Remove the E ring and bushing from the
paper feed shaft unit (machine rear).
Figure 1-6-3
Shaft handle retainer
Handle
Paper feed cluth
Cutout Stop ring
E ring
Bushing
