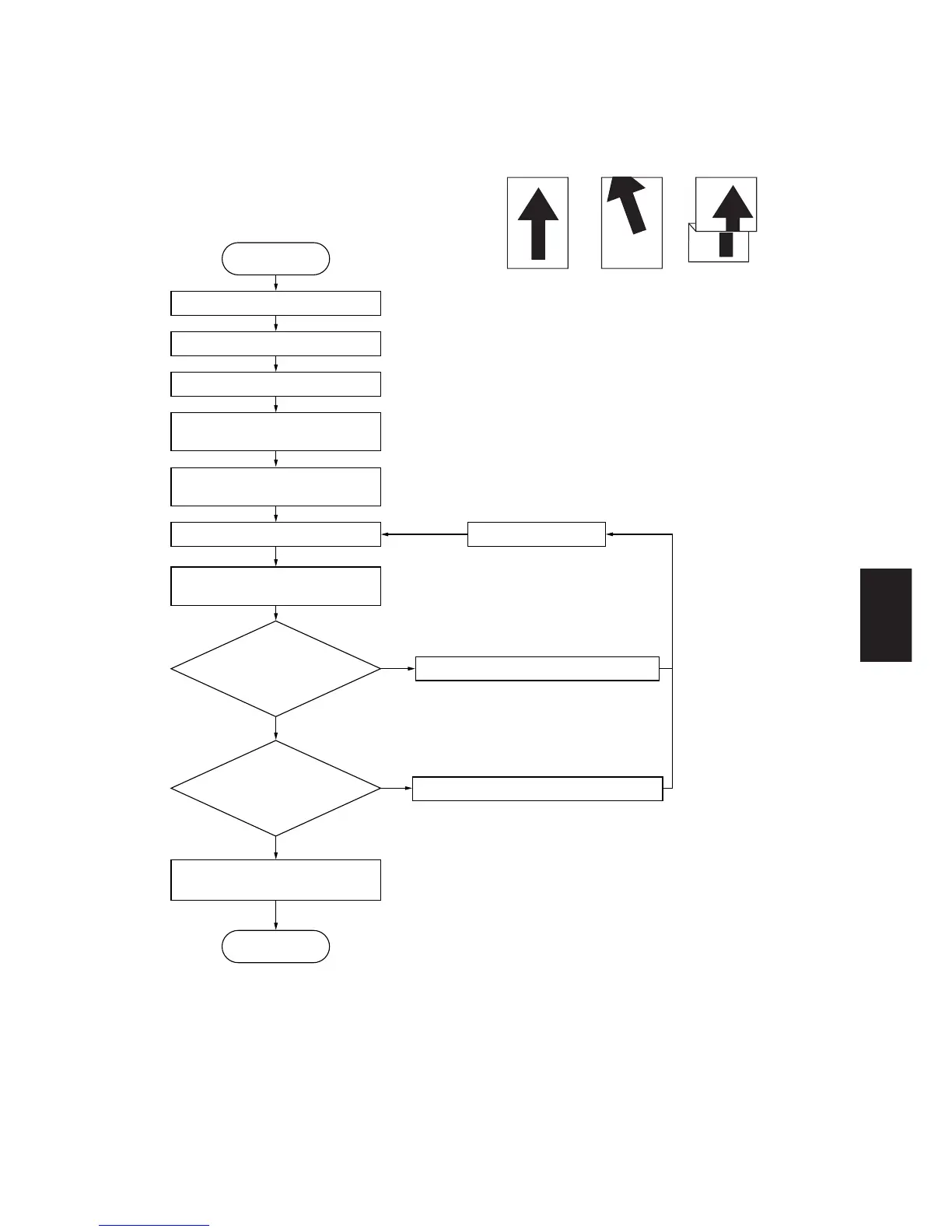

(6-5) Adjusting the amount of slack in the paper
Make the following adjustment if the leading edge of the copy image is missing or varies randomly, or if the copy paper is
Z-folded.
Procedure
• 20 cpm
End
Start
Enter maintenance mode.
Enter “051” using the numeric keys.
Yes
Yes
No
No
Press the start key.
Press the interrupt key.
Press the start key
to make a test copy.
Decrease the value using the cursor left key.
Setting range: –50 – +50
Initial setting: 0
Changing the value by 1 changes
the amount of slack by 0.32 mm.
The greater the value,
the larger the amount of slack;
the smaller the value, the smaller
the amount of slack.
The new setting is stored.
Select the item to be adjusted using
the cursor up/down keys.
Select "RESIST DATA" or "FEED
DATA" using the cursor up/down keys.
• Amount of slack in the paper at the registration roller
DECK : Upper drawer
BYPASS : Bypass tray
DECK2 : Lower drawer
DUPLEX : Duplex copying (second face)
• Amount of slack in the paper at the paper feed roller
3RD DECK : Optional drawer 1
4TH DECK : Optional drawer 2
Is the leading
edge of the image missing
or varying randomly (copy
example 1)?
Is the copy
paper Z-folded (copy
example 2)?
Increase the value using the cursor right key.
Press the start key.
Press the stop/clear key to
exit maintenance mode.
Original Copy
example 1
Copy
example 2
Figure 1-6-22a
