Utax CD 1020 - Motors

2AV/X
2-2-4
2-2
(3) Motors

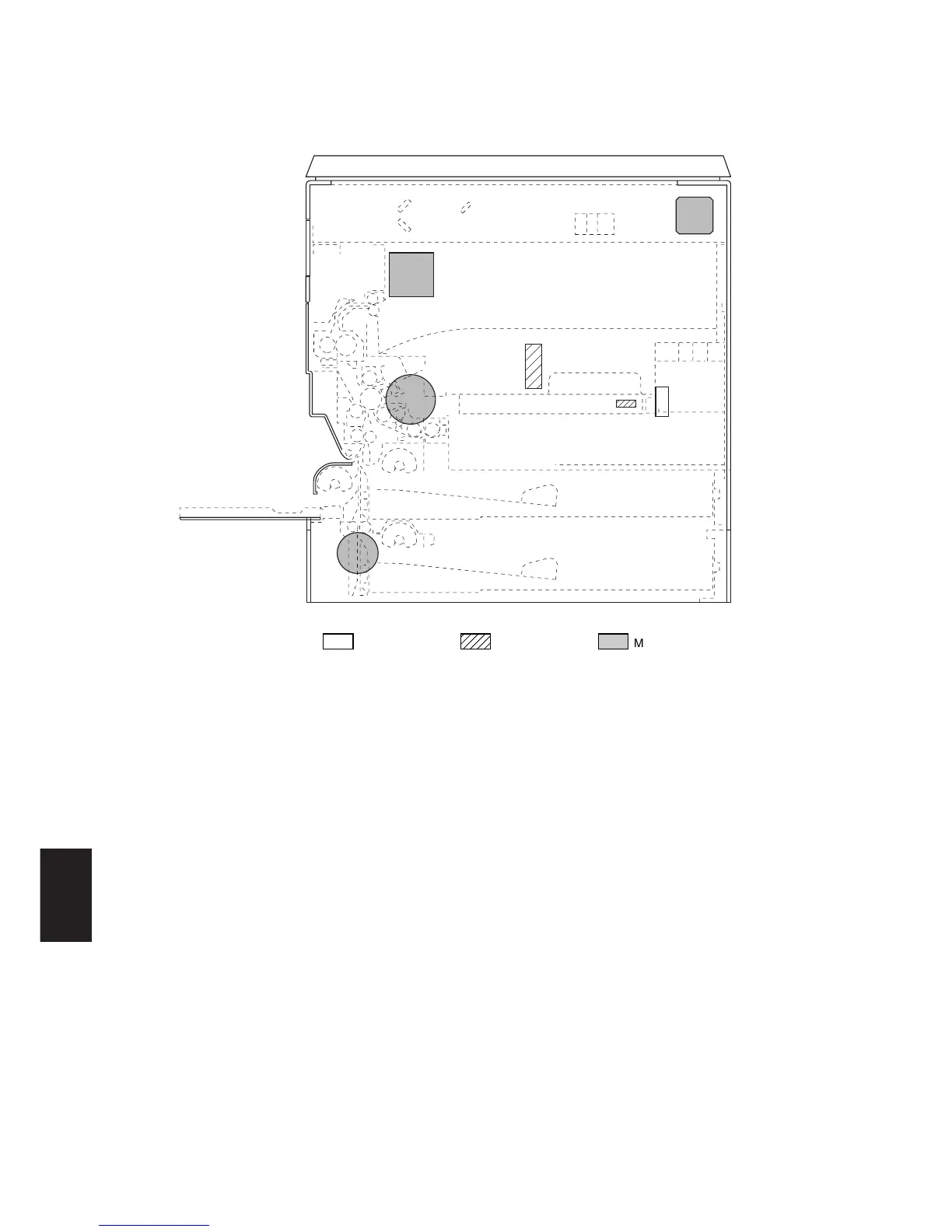

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Scanner motor (SM) .................................... Drives the optical system.
3. Toner feed motor (TFM) ............................... Replenishes toner.
4. Cooling fan motor 1 (CFM1) ........................ Cools the fixing section.
5. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
6. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior.
7. Polygon motor (PM) ..................................... Drives the polygon mirror.
8. Drawer drive motor* (DDM) ......................... Drives the paper feed system in the lower drawer.
*Optional for the 15 cpm copier/standard for the 20 cpm copier.
4
1
8
5,6
7
3
2
Machine front Machine inside
;
Machine rear
