1-1-4 Drive system
(1) Drive system 1 (optical section)

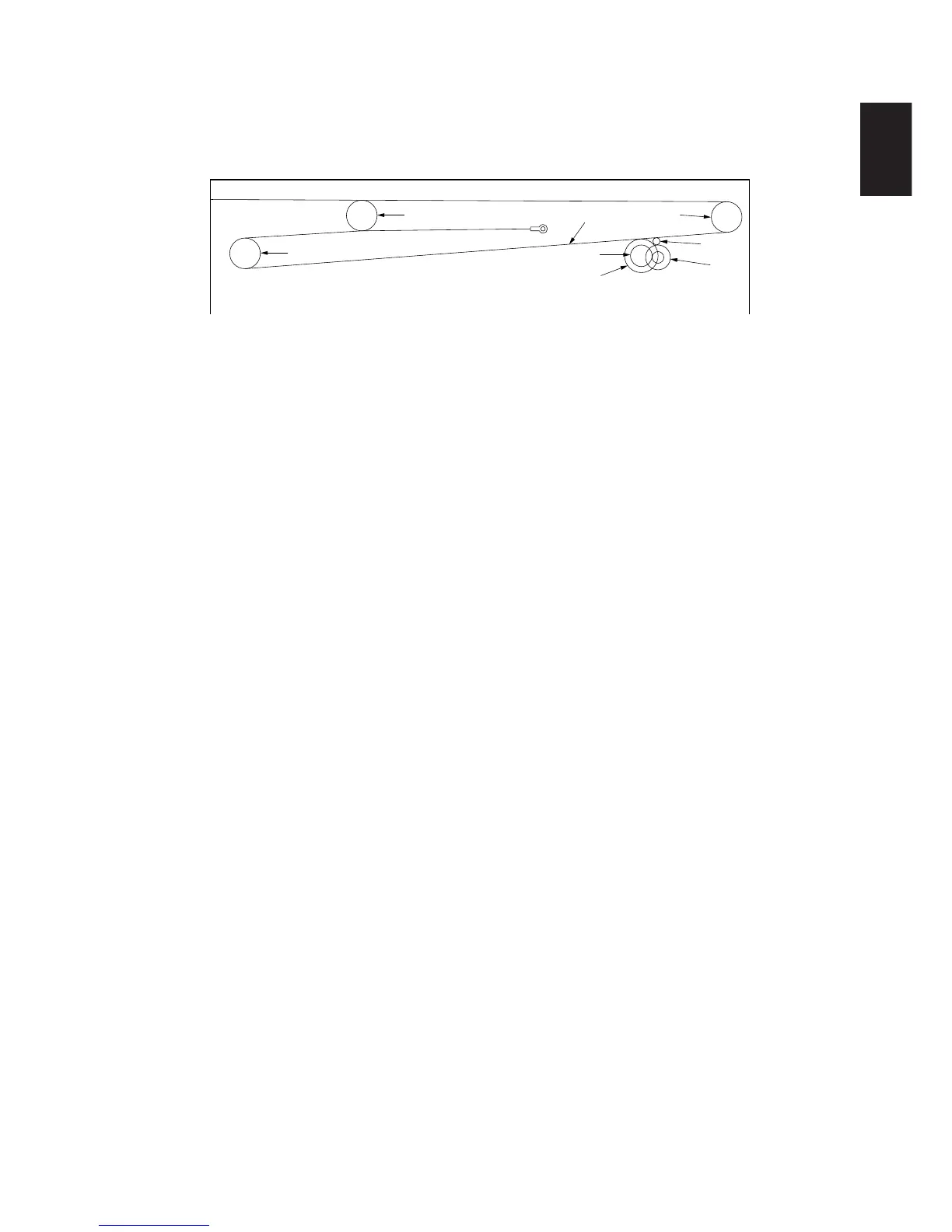

Figure 1-1-5
1 Scanner motor gear
2 Gear 44/16
3 Gear 26
4 Scanner wire drum
5 Scanner wire
6 Scanner wire pulley
7 Scanner wire pulley
8 Scanner wire pulley
