Utax CD 1020 - Detaching and Refitting the Press Roller

2AV/X
1-6-53
1-6
(6) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fixing unit (see page 1-6-48).
2. Remove the heat roller (see page 1-6-51).
3. Remove the screw holding the fixing guide
plate and then the plate.

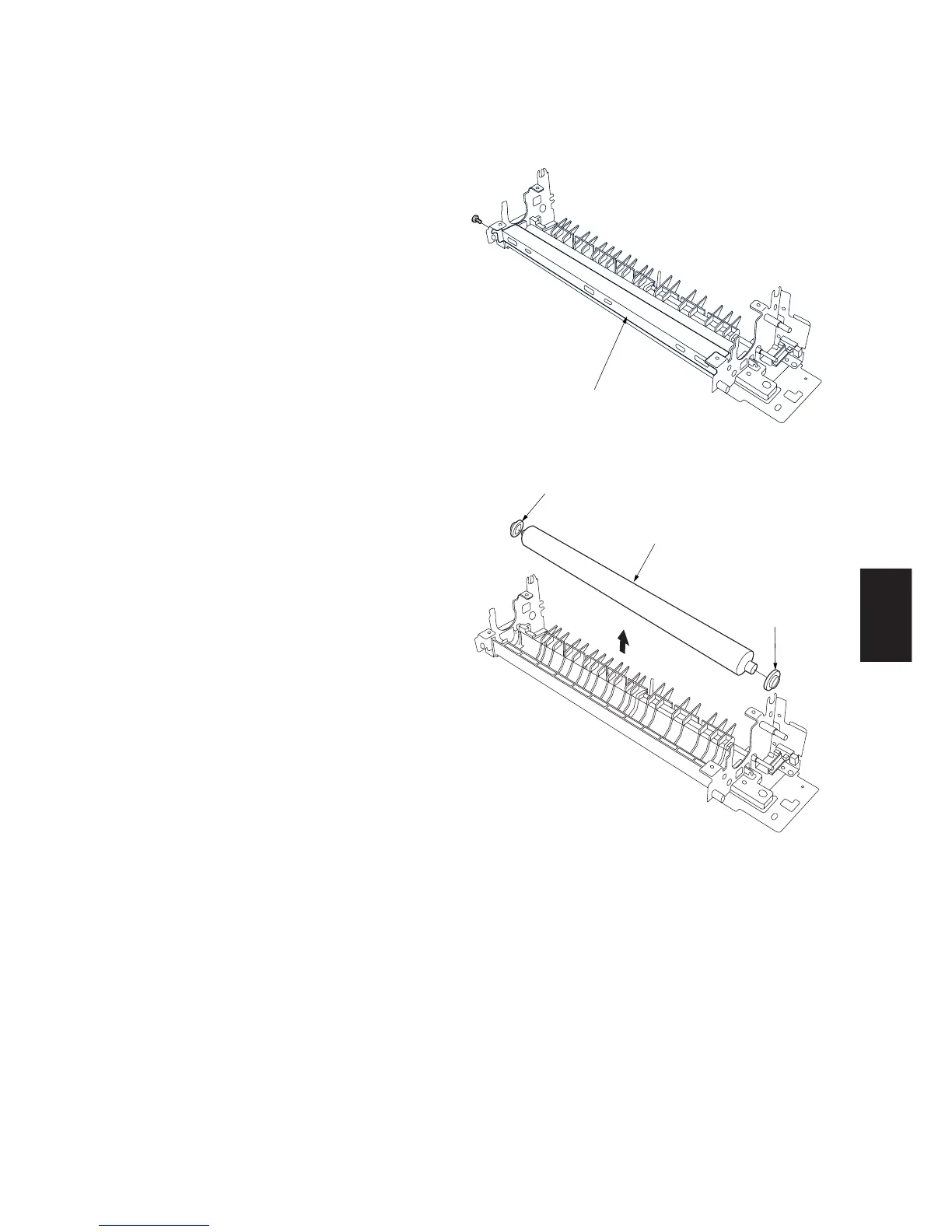

Figure 1-6-81
4. Remove the press roller and two bearings.
5. Replace the press roller and refit all the
removed parts.
Figure 1-6-82
Fixing guide plate
Press roller
Bearing
Bearing
