6. Remove the four screws holding the fixing
housing and then the housing.

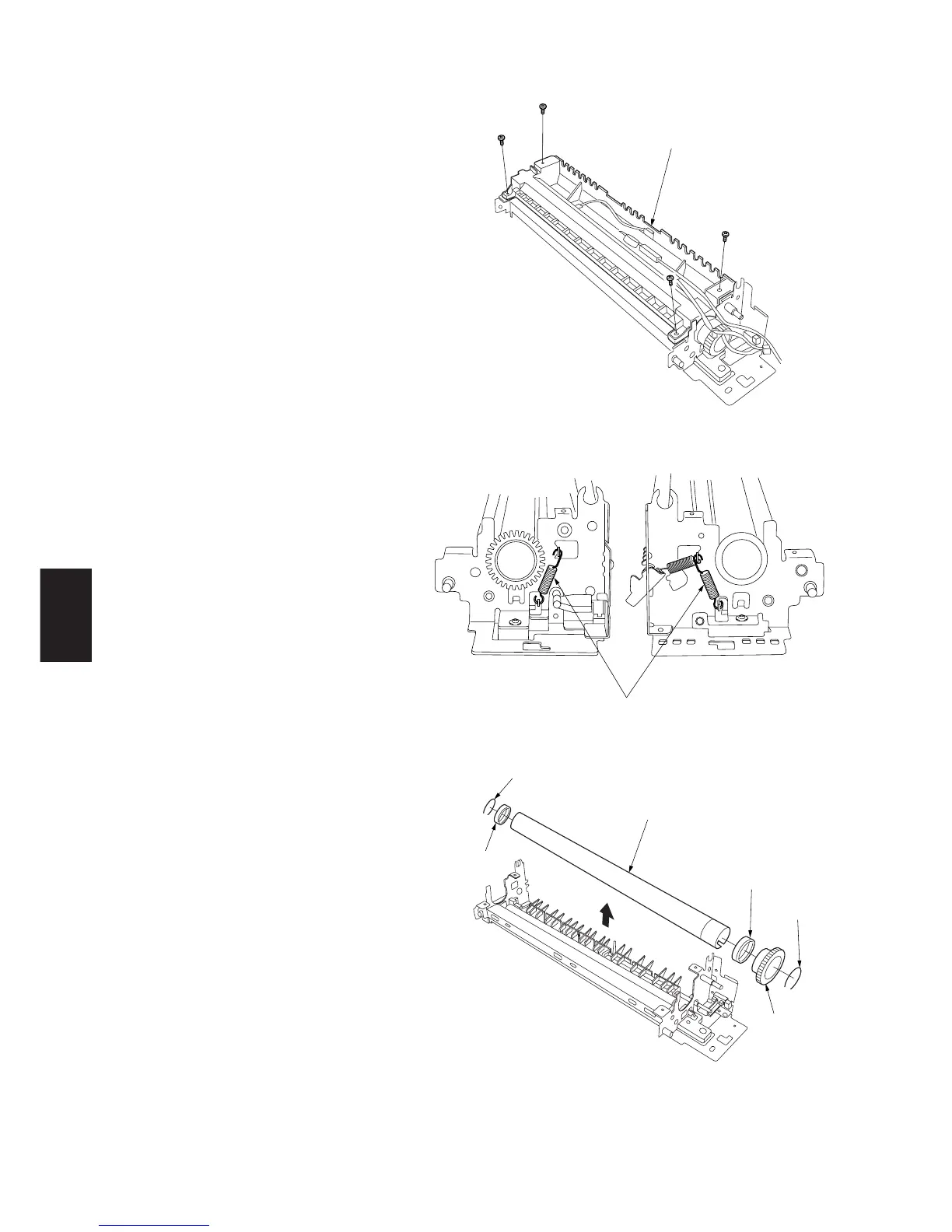

Figure 1-6-78
7. Remove the pressure spring from each of the
front and rear ends of the fixing unit.
Figure 1-6-79
8. Remove the C ring, gear and bushing on the
rear and the C ring and bushing on the front
of the heat roller, and then remove the heat
roller.
9. Replace the heat roller and refit all the
removed parts.
Figure 1-6-80
Fixing housing
Press springs
Heat roller
Bushing
Bushing
C ring
Gear
C ring
