Utax CD 1020 - Other Electrical Components

2AV/X
2-2-5
2-2
(4) Other electrical components

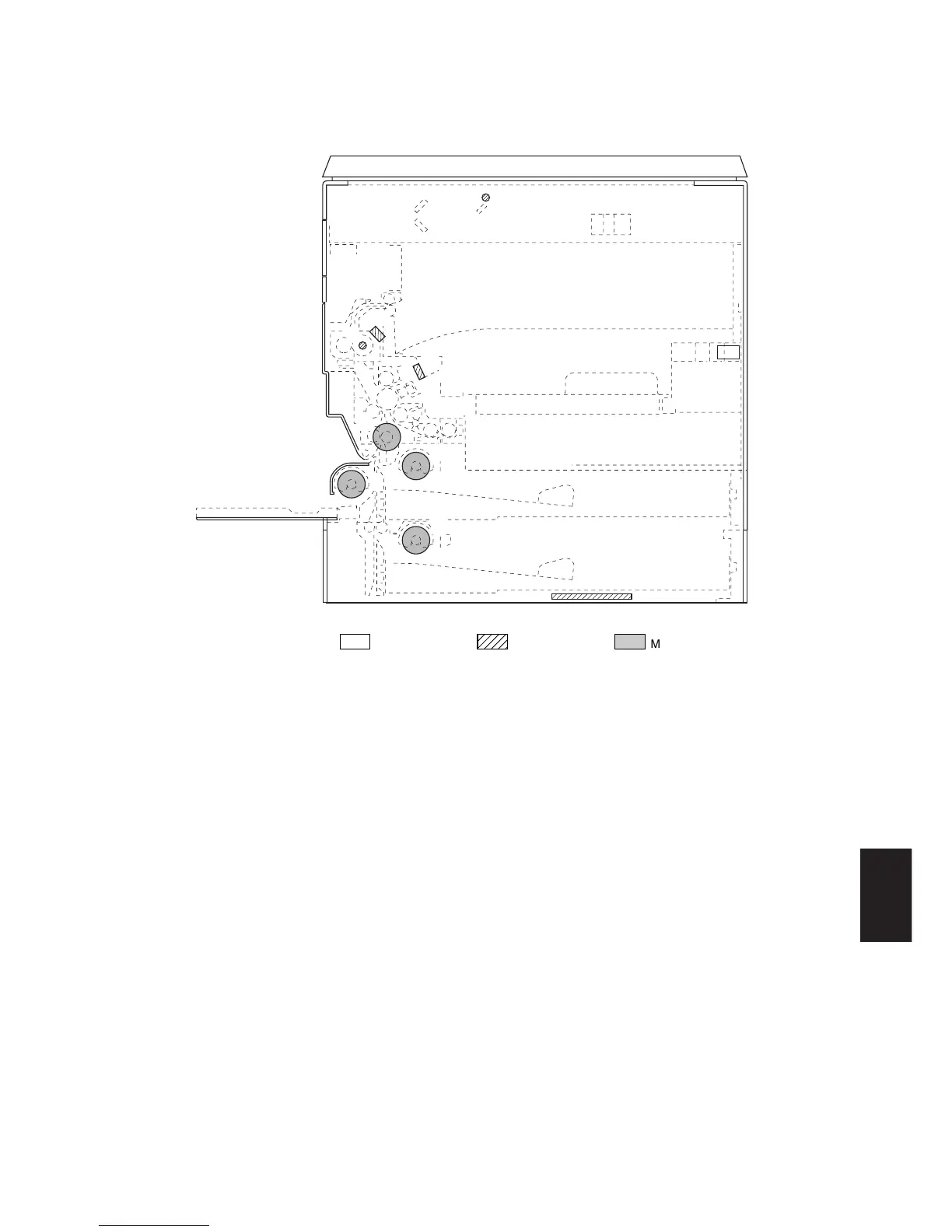

Figure 2-2-4 Other electrical components
1. Upper paper feed clutch (PFCL-U) .............. Primary paper feed from the upper drawer.
2. Lower paper feed clutch* (PFCL-L) ............. Primary paper feed from the lower drawer.
3. Bypass paper feed clutch (BYPPFCL) ......... Primary paper feed from the bypass tray.
4. Registration clutch (RCL) ............................. Secondary paper feed.
5. Exposure lamp (EL) ..................................... Exposes originals.
6. Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
7. Fixing heater (FH) ........................................ Heats the heat roller.
8. Fixing unit thermostat (FTS) ........................ Prevents overheating in the fixing section.
9. Total counter (TC) ........................................ Displays the total number of copies produced.
10. Drawer heater** (DH) ................................... Dehumidifies the drawer section.
*Optional for the 15 cpm copier/standard for the 20 cpm copier.
**Optional.
5
9
10
8
6
4
1
3
2
7
Machine front
Machine inside
;
Machine rear
