Utax CD 1020 User Manual

2AV/X
2-1-10
2-1
2-1-4 Developing section
The developing section consists of the developing unit and the toner cartridge.
The developing unit consists of the developing roller where a magnetic brush is formed, the doctor blade and the
developing spirals that agitate the developer.
Toner from the toner cartridge and residual toner collected in the cleaning section are conveyed to the waste toner tank.
Toner cartridge
Toner feed motor (TFM)
Developing unit

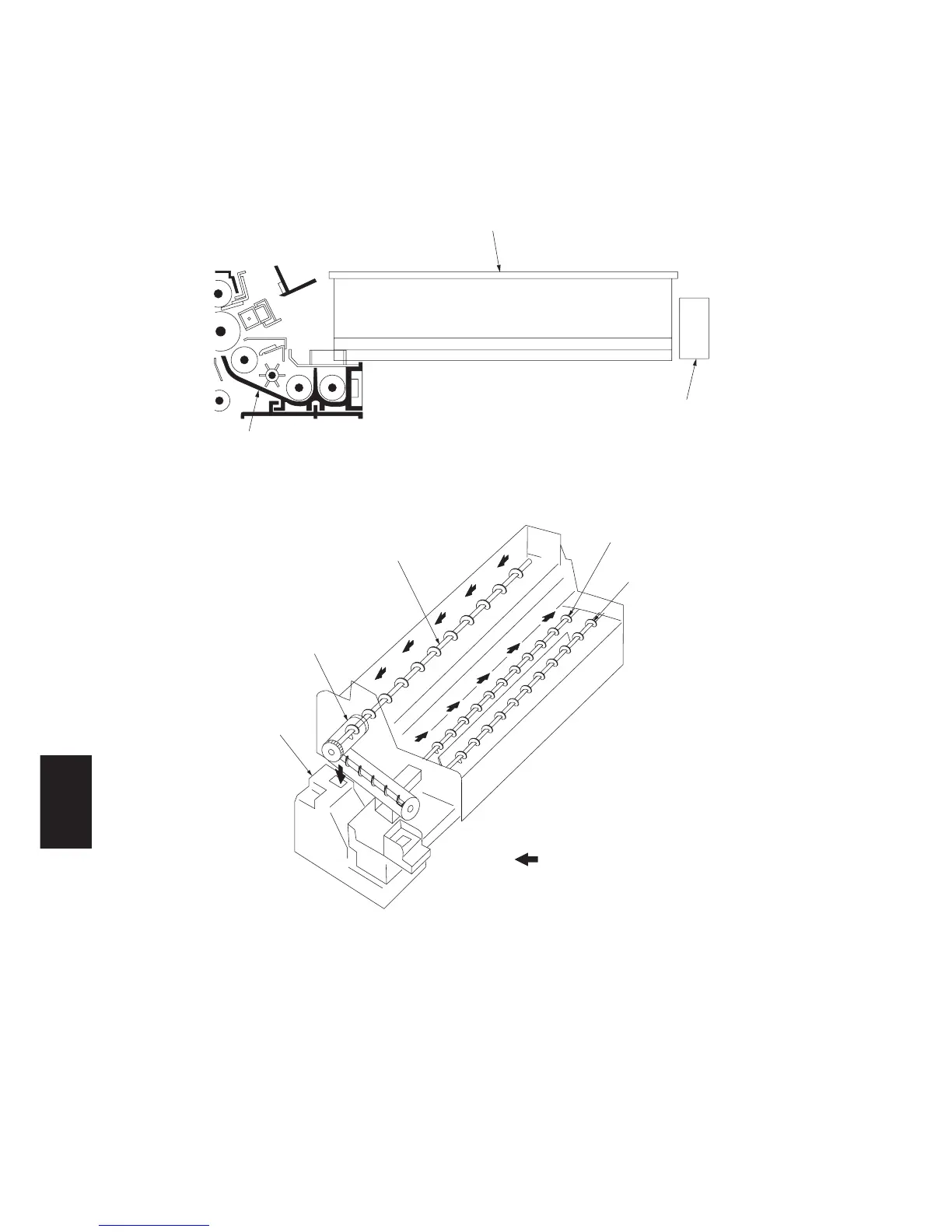

Figure 2-1-12 Developing section
Cleaning spiral
Toner recycling assembly
Waste toner tank
Flow of the recycled toner
Left developing spiral
Right developing spiral
Figure 2-1-13 Toner recycling

Utax CD 1020 Specifications

General

Brand	Utax
Model	CD 1020
Category	Copier
Language	English
