2AV/X
1-6-19
1-6
1-6-3 Optical section

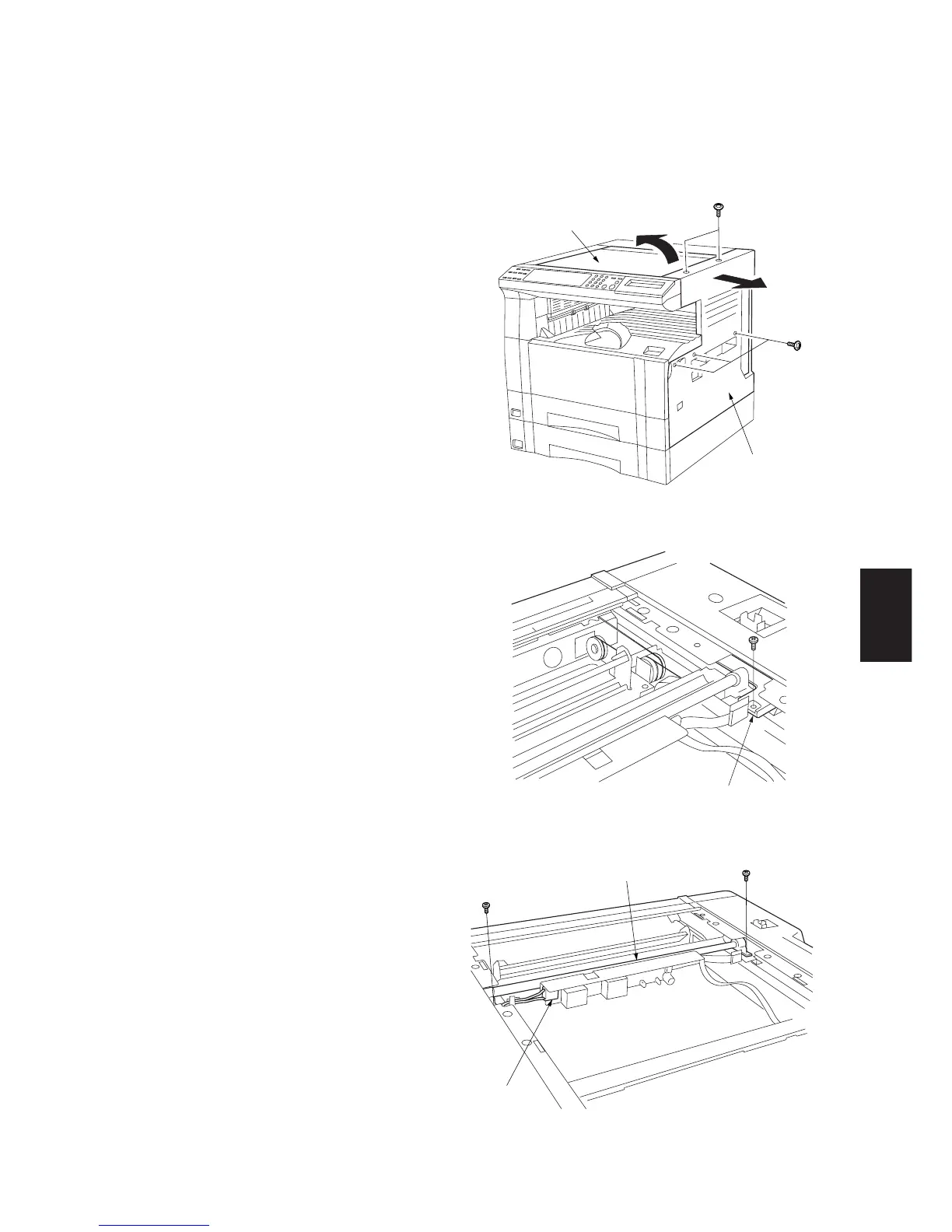

(1) Detaching and refitting the exposure lamp
Replace the exposure lamp as follows.
Procedure
1. Remove the original cover or the DF.
2. Remove the five screws holding the right
cover. While sliding the right cover in the
direction of the arrow in the diagram, remove
the contact glass.
Figure 1-6-23
3. Move the mirror 1 frame to the cutouts of the
machine.
Caution: When moving the mirror 1 frame, do
not touch the exposure lamp nor the inverter
PCB.
4. Remove the screw holding the metal plate at
the machine rear and then the plate.
Figure 1-6-24
5. Detach the exposure lamp connector from the
inverter PCB.
6. Remove the two screws holding the exposure
lamp and then the lamp.
7. Replace the exposure lamp and refit all the
removed parts.
Figure 1-6-25
Right cover
Contact glass
Metal plate
Connector
Exposure lamp
