2AV/X
2-1-1
2-1
2-1-1 Paper feed section
The paper feed section consists of the primary feed and secondary feed subsections. Primary feed conveys paper from
the upper drawer, lower drawer or bypass tray to the left and right registration rollers, at which point secondary feed
takes place and the paper travels to the transfer section in sync with the printing timing.
Each drawer can hold up to 250 sheets of paper. The bypass tray can hold up to 50 sheets of paper.
Paper is fed from the drawer by the rotation of the paper feed pulley. Paper is fed from the bypass tray by the rotation of
the bypass paper feed pulley.

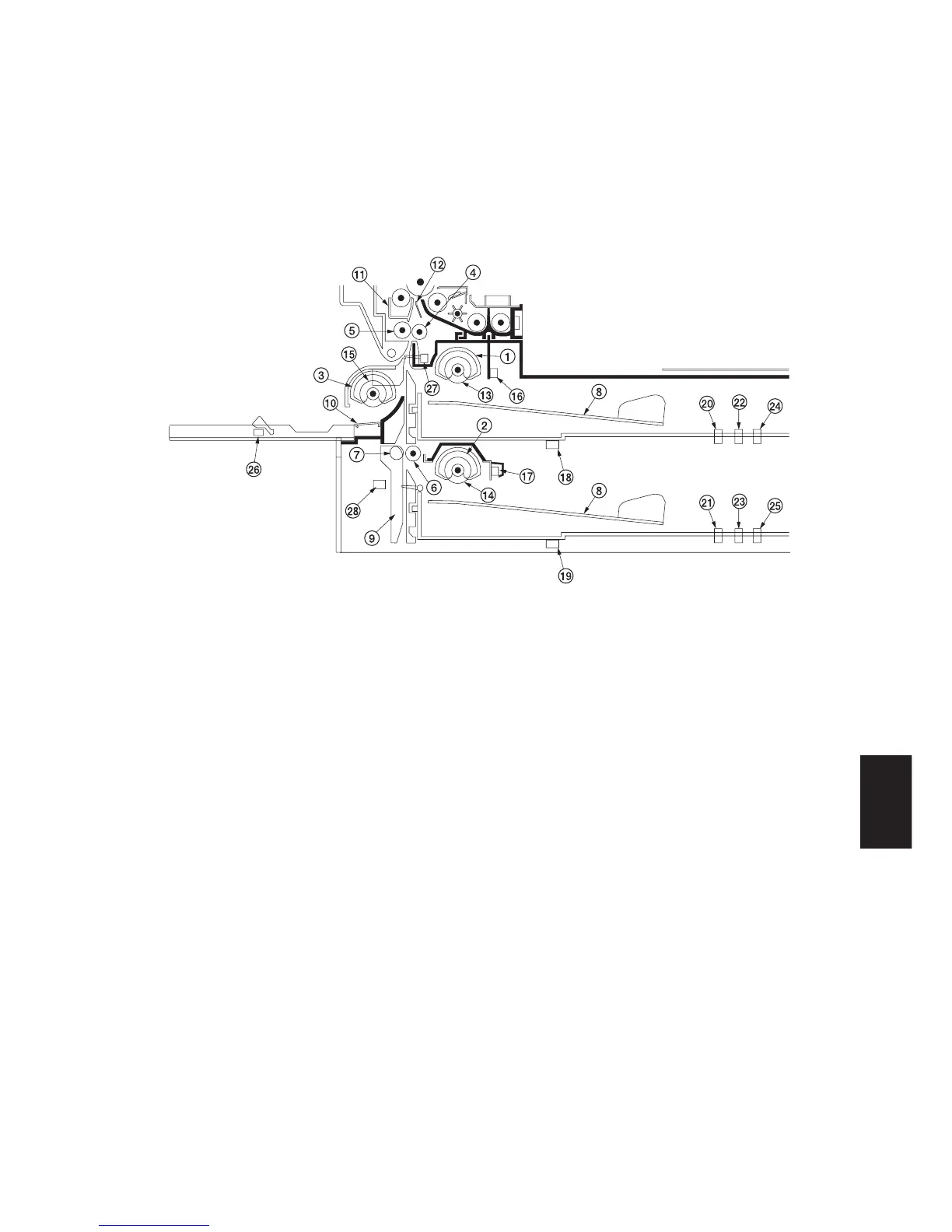

Figure 2-1-1 Paper feed section
1 Upper paper feed pulley
2 Lower paper feed pulley*
1
3 Bypass paper feed pulley
4 Right registration roller
5 Left registration roller
6 Paper conveying roller*
1
7 Paper conveying pulley*
1
8 Drawer lift
9 Paper conveying guide*
1
0 Bypass lift
! Transfer guide
@ Right transfer guide
# Upper paper feed clutch (PFCL-U)
$ Lower paper feed clutch*
1
(PFCL-L)
% Bypass paper feed clutch (BYPPFCL)
^ Upper paper switch (PSW-U)
& Lower paper switch*
1
(PSW-L)
* Upper paper size switch 1 (PSSW1-U)
( Lower paper size switch 1*
1
(PSSW1-L)
) Upper paper size switch 2 (PSSW2-U)
⁄ Lower paper size switch 2*
1
(PSSW2-L)
¤ Upper paper size switch 3 (PSSW3-U)
‹ Lower paper size switch 3*
1
(PSSW3-L)
› Upper paper size switch 4 (PSSW4-U)
fi Lower paper size switch 4*
1
(PSSW4-L)
fl Bypass paper switch*
2
(BYPPSW)
‡ Registration switch (RSW)
° Drawer feed switch*
1
(DFSW)
*1: Standard for the 20 cpm copier/optional
for the 15 cpm copier.
*2: For the 20 cpm copier only.
