2AV/X
2-1-15
2-1
2-1-5 Transfer and separation section
The transfer and separation section consists mainly of the transfer roller and drum separation claws.
A high voltage generated by the high-voltage transformer PCB (HVTPCB) is applied to the transfer roller for transfer
charging. Toner adhered to the transfer roller is removed by the transfer cleaner.
Separation claw pulleys
Drum separation claws
Transfer roller
Transfer cleaner

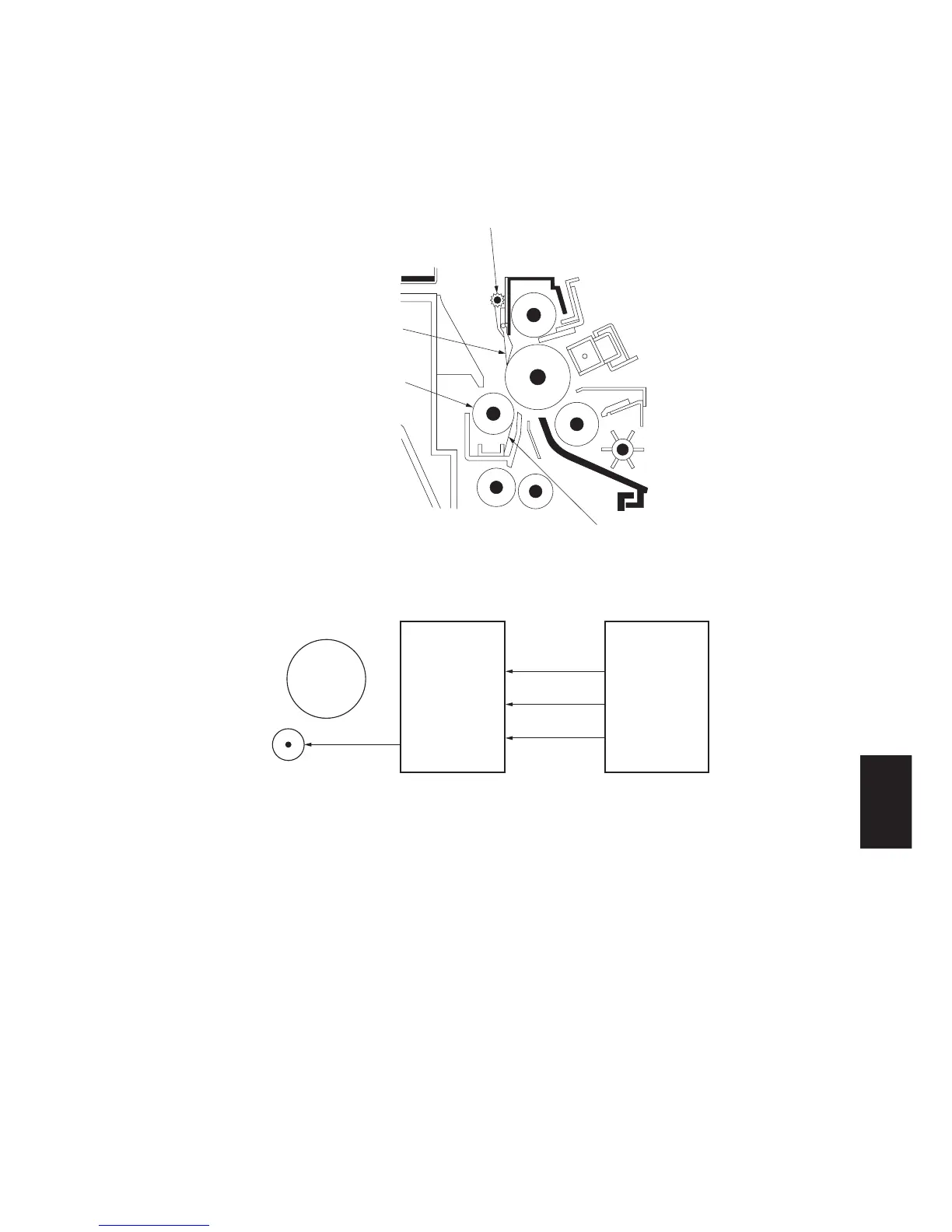

Figure 2-1-20 Transfer and separation section
CN4-1
24 V DC
MPCB
CN1-9
TC
Drum
Transfer roller
HVTPCB
CN4-5
TC REM
CN1-5
CN4-8
TC CONT
CN1-2
Figure 2-1-21 Transfer and separation section block diagram
