2AV/X
1-6-38
1-6

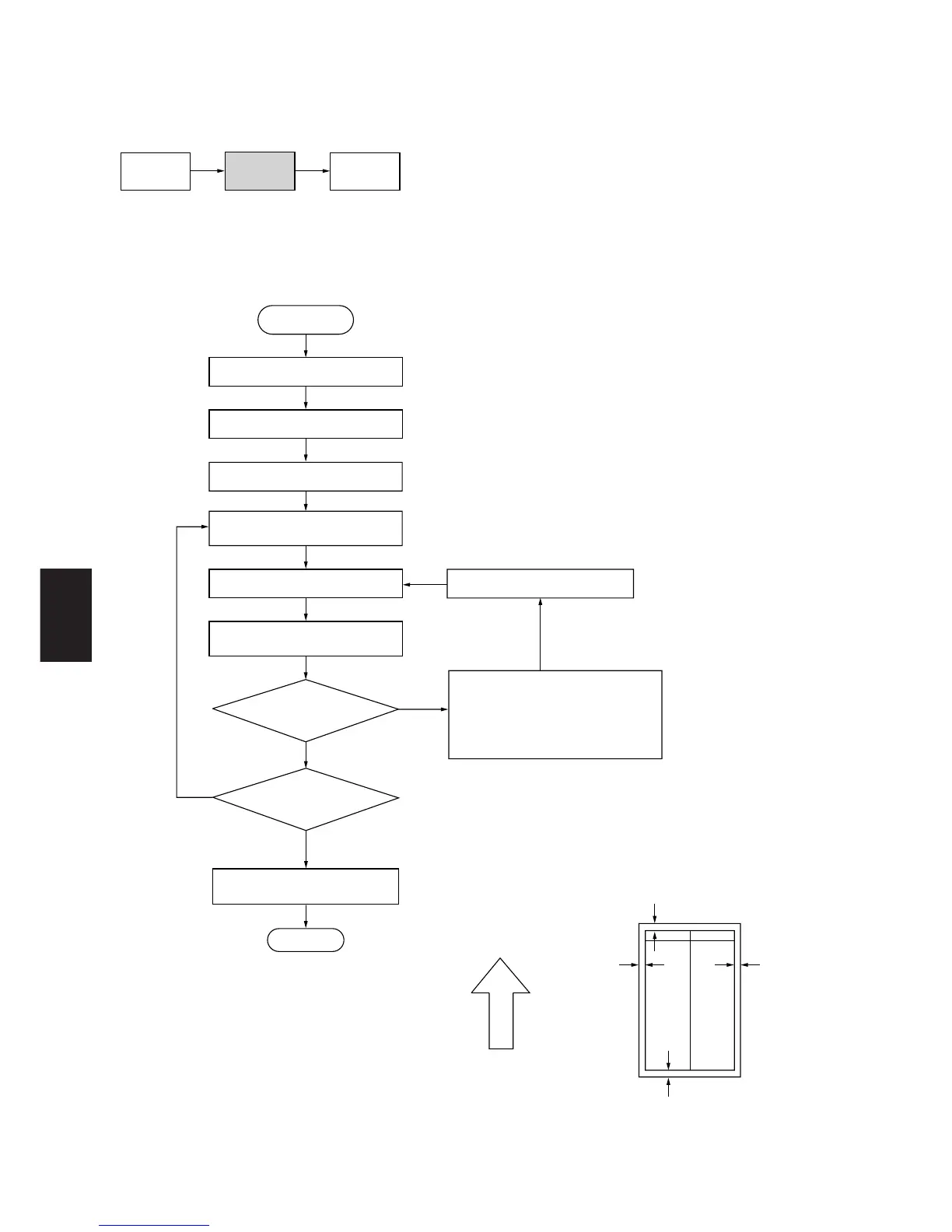

(12) Adjusting the margins for scanning an original on the contact glass
Perform the following adjustment if the margins are not correct.
U402
(P. 1-6-15)
U404
(P. 1-4-46)
U403
Caution:
Before making the following adjustment, ensure that the above adjustments have been made in maintenance mode.
Procedure
20 cpm
Change the setting.
Increasing the value using the cursor
right key makes the margin wider.
Decreasing the value using the
cursor left key makes the margin
narrower.
Yes
No
Start
Enter maintenance mode.
Enter 403 using the numeric keys.
Press the start key.
Press the start key
to make a test copy.
Press the start key.
The new setting
is stored.
Setting range (default)
Scanner left margin: 0 +10 (2)
Scanner leading edge margin: 0 +10 (3)
Scanner right margin: 0 +10 (2)
Scanner trailing edge margin: 0 +10 (2)
Changing the value by one moves
the margin by 0.5 mm for all.
Select the item to be adjusted using
the cursor up/down keys.
Are the margins correct?
Press the interrupt key.
A MGN: scanner left margin
B MGN: scanner leading edge margin
C MGN: scanner right margin
D MGN: scanner trailing edge margin
Yes
No
Proceed to another mode?
End
Press the stop/clear key to
exit maintenance mode.
Scanner leading edge margin (3 ± 2.5 mm)
Scanner
left margin
(2
+2.0
mm)
Scanner
right margin
(2
+2.0
mm)
Ejection direction
(reference)
Scanner trailing edge margin
(2
+2.0
mm)
1.5
1.5
1.5
