Utax CD 1020 - Page 220

2AV/X
1-6-39
1-6

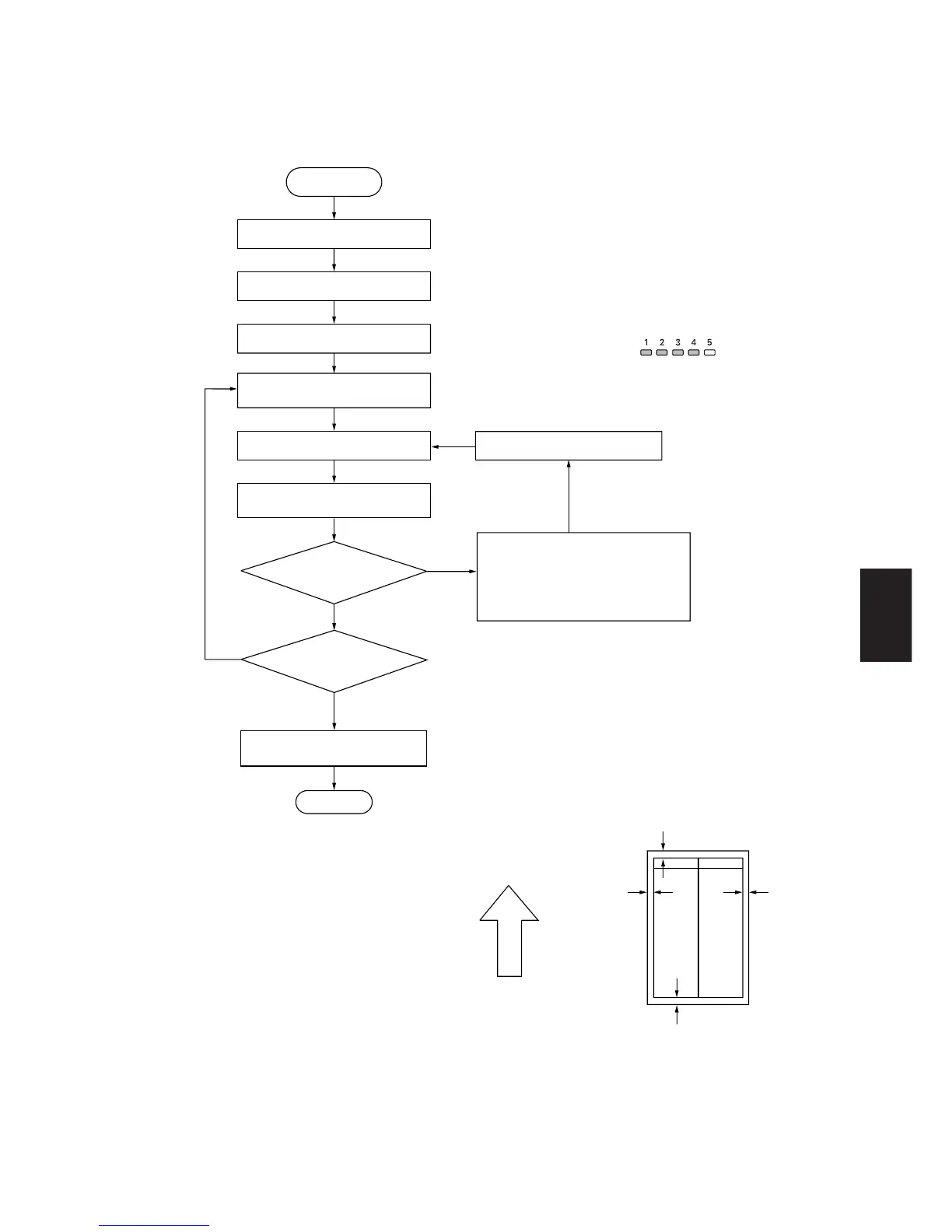

• 15 cpm
Change the setting.
Increasing the value using the zoom
(+) key makes the margin wider.
Decreasing the value using the
zoom (–) key makes the margin
narrower.
Yes
No
Start
Enter maintenance mode.
Enter “403” using the numeric keys.
Press the start key.
Press the start key
to make a test copy.
Press the start key.
The new setting
is stored.
Setting range (default)
Scanner left margin: 0 – +10 (2)
Scanner leading edge margin: 0 – +10 (3)
Scanner right margin: 0 – +10 (2)
Scanner trailing edge margin: 0 – +10 (2)
Changing the value by one moves
the margin by 0.5 mm for all.
Select the item to be adjusted using
the copy exposure adjustment keys.
Are the margins correct?
Press the interrupt key.
Yes
No
Proceed to another mode?
End
Press the stop/clear key to
exit maintenance mode.
● Copy exposure adjustment keys
Setting 1 : scanner left margin
2 : scanner leading edge margin
3 : scanner right margin
4 : scanner trailing edge margin
Scanner leading edge margin (3 ± 2.5 mm)
Scanner
left margin
(2
+2.0
mm)
Scanner
right margin
(2
+2.0
mm)
Ejection direction
(reference)
Scanner trailing edge margin
(2
+2.0
mm)
–1.5
–1.5
–1.5
