2AV/X
1-6-10
1-6
(6) Adjustment after roller and clutch replacement
Perform the following adjustment after refitting rollers and clutches.
(6-1) Adjusting the leading edge registration of image printing
Make the following adjustment if there is a regular error between the leading edges of the copy image and original.
U034
U066
(P. 1-6-36)
U071
(P. 1-4-14)
Caution:
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.

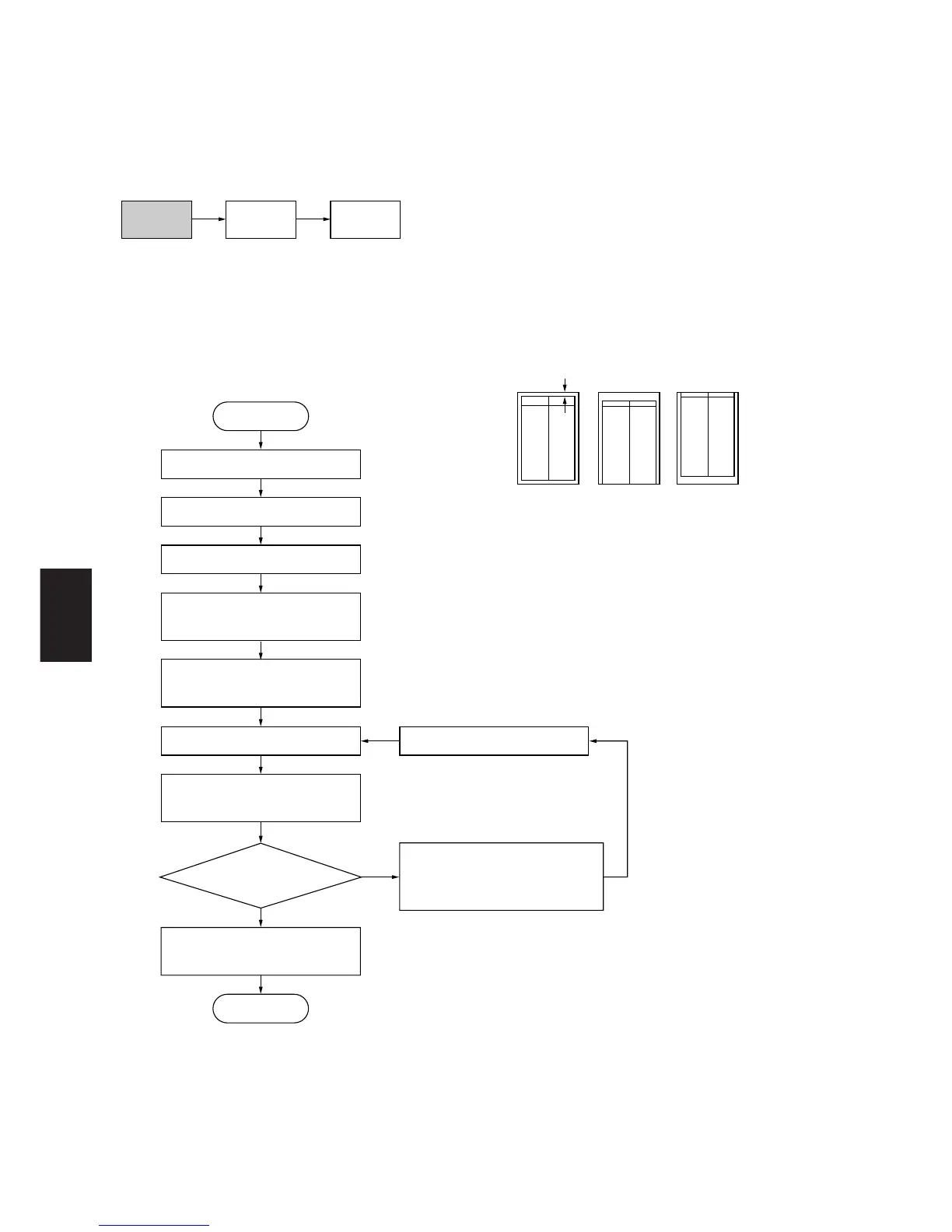

Procedure
• 20 cpm
Yes
No
Start
Enter maintenance mode.
Enter “034” using the numeric keys.
Press the start key.
Press the interrupt key.
Is the leading edge
registration correct?
Press the start key
The new setting is stored
Press the stop/clear key to exit
maintenance mode.
End
Select the items to be adjusted using
the cursor up/down keys.
For output example 1, decrease
the value using the cursor left key.
For output example 2, increase
the value using the cursor right key.
Message display
RCL ON : Leading edge registration
RCL ON 2 :
Leading edge registration for when
the paper pauses at the registration
roller
RCL DUP : Leading edge registration for duplex
copying (second face)
• After adjusting the leading edge registration for
regular operation (RCL ON), be sure to adjust
the leading edge registration for when paper
pauses at the registration roller (RCL ON2).
Setting range: –5.0 – +5.0
Initial setting: 0
Changing the value by 1 moves the
leading edge by 1.0 mm.
Select “Leading edge registration”
and press the start key.
Press the start key
to output a test pattern.
Correct image Output
example 1
Output
example 2
Leading edge registration
Figure 1-6-19a
To Next Page
