2AV/X
1-1-6
1-1

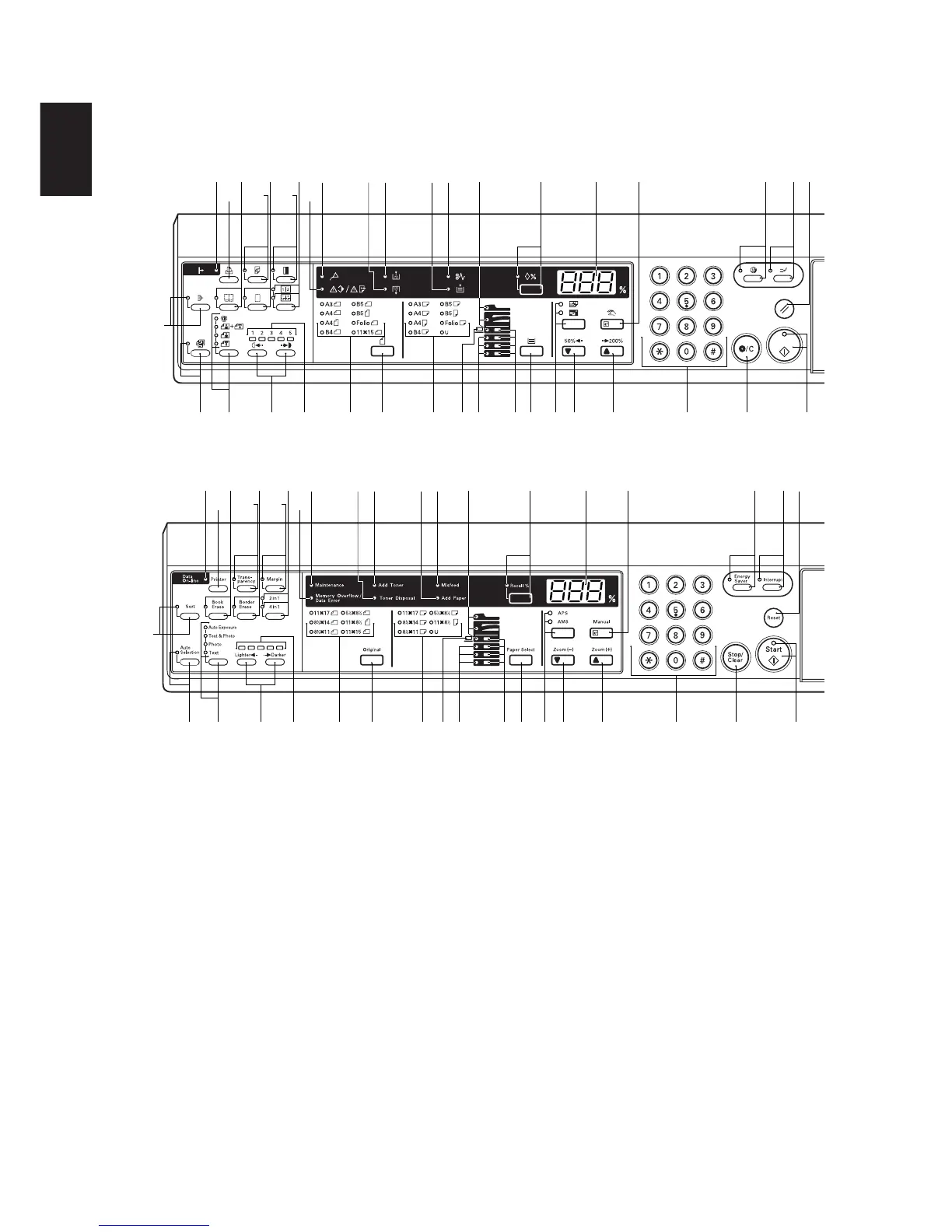

(2) Operation panel
15 cpm copier
Metric
Inch
Figure 1-1-2
Á
‰
°‡ fi fl * & ^$% $#!0 9 3 2 1
´
ˇ„‚›
Œ·‹ ¤ )( % @ 8 7 654⁄
Á
‰
°‡fifl*&^%$#!09321$
´
ˇ„‚›
Œ·‹
¤⁄ )( % @ 8 7 6
54
1 Start key (Indicator)
2 Stop/Clear key
3 Numeric keys
4 Reset key
5 Interrupt key (Indicator)
6 Energy Saver (preheat) key (Indicator)
7 Manual/Enter key
8 Copy quantity/magnification display
9 Zoom (+) key
0 Zoom (-) key
! Auto mode selection key/APS/AMS indicators
@ Recall key
# Paper Select key
$ Drawer select indicators
% Misfeed location indicators
^ Paper size indicators
& Original key
* Original size indicators
( Misfeed indicator
) Add Paper indicator
⁄ Add Toner indicator
¤ Toner Disposal indicator
‹ Maintenance indicator
› Memory Overflow/Data Error indicator
fi Copy exposure adjustment keys
fl Copy exposure indicators
‡ Image mode selection key/Auto Exposure/Text
& Photo/Photo/Text indicators
° Auto Selection key (Indicator)
· Layout key/2 in 1 indicator/4 in 1 indicator
‚ Margin key (Indicator)
ΠBorder Erase key (Indicator)
„ Transparency key (Indicator)
´ Book Erase key (Indicator)
‰ Sort key (Indicator)
ˇ Printer key
Á Data On-line indicator
