1-3-25
2AV/X
1-31-3

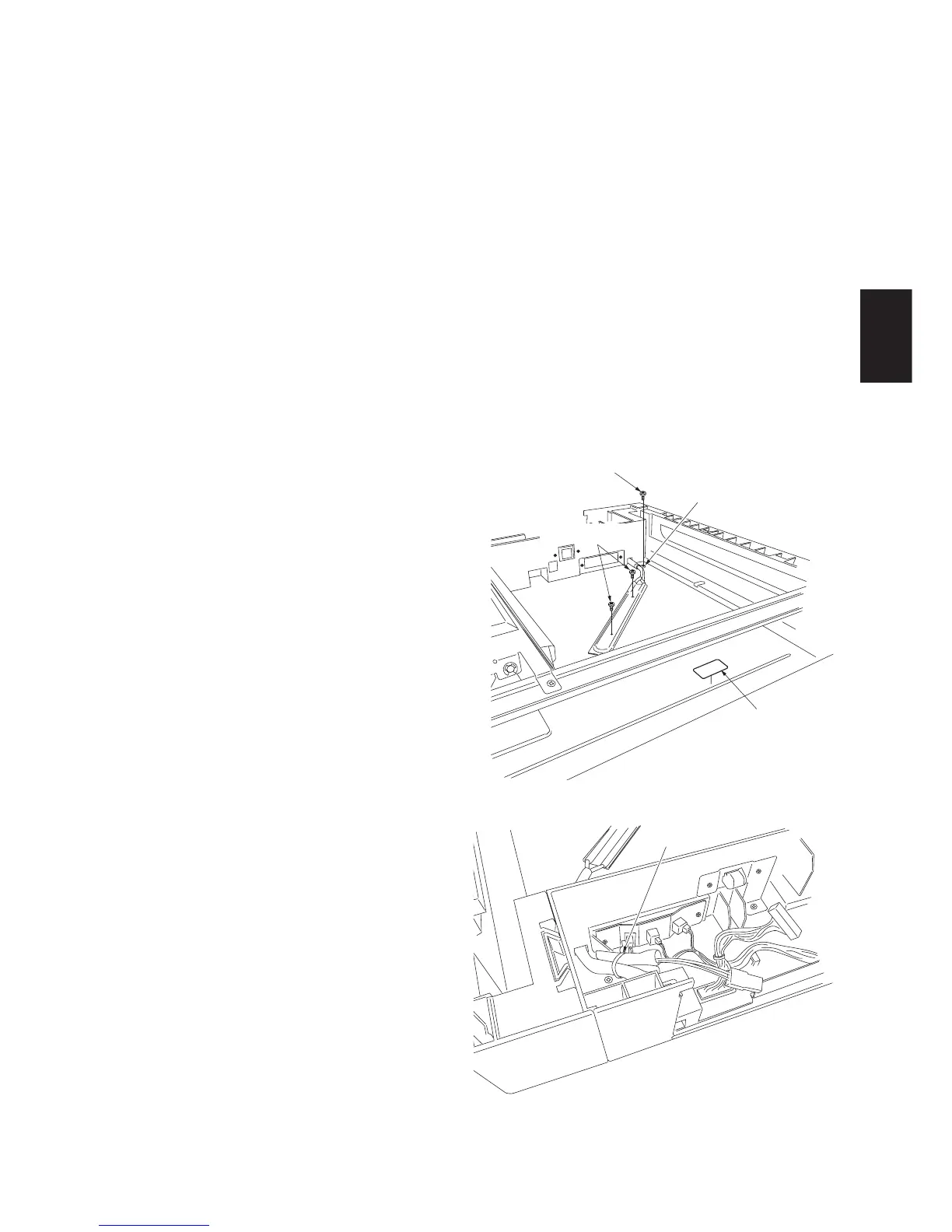

Figure 1-3-25
Figure 1-3-26
1-3-6 Installing the drawer heater (option)
Drawer heater installation requires the following parts:
For 120 V specifications
Drawer heater set (P/N 3A569710)
Contents of the set
• One (1) BVM4 × 4 bronze binding screw (P/N B1304040)
• Two (2) BVM4 × 6 bronze binding screws (P/N B1304060)
• Clamp (P/N M2105030)
• Band (P/N M2607010)
• High temperature caution sticker (P/N 20305130)
• Drawer heater wire (P/N 3A568010)
• Drawer heater (P/N 34860030)
For 220-240 V specifications
Drawer heater set (P/N 3A569720)
Contents of the set
• One (1) BVM4 × 4 bronze binding screw (P/N B1304040)
• Two (2) BVM4 × 6 bronze binding screws (P/N B1304060)
• Clamp (P/N M2105030)
• Band (P/N M2607010)
• High temperature caution sticker (P/N 20305130)
• Drawer heater wire (P/N 3A568010)
• Drawer heater (P/N 34860020)
Procedure
1. Remove the two screws holding the rear cover of the
optional drawer and then the cover.
2. Pull the drawer out.
3. Pass the connector of the drawer heater through the
cable hole in the rear base and fit the drawer heater
using the two BVM4 × 06 bronze binding screws.
4. Fasten the drawer heater cable with the clamp using
the BVM4 × 04 bronze binding screw.
5. Affix the high temperature caution sticker.
6. Fold the cable that was passed through the cable
hole in three and tidy it up using the band.
BVM4 × 6 screws
BVM4 × 4 screw
Clamp
High temperature
caution sticker
Band
