1-3-26
2AV/X
1-3

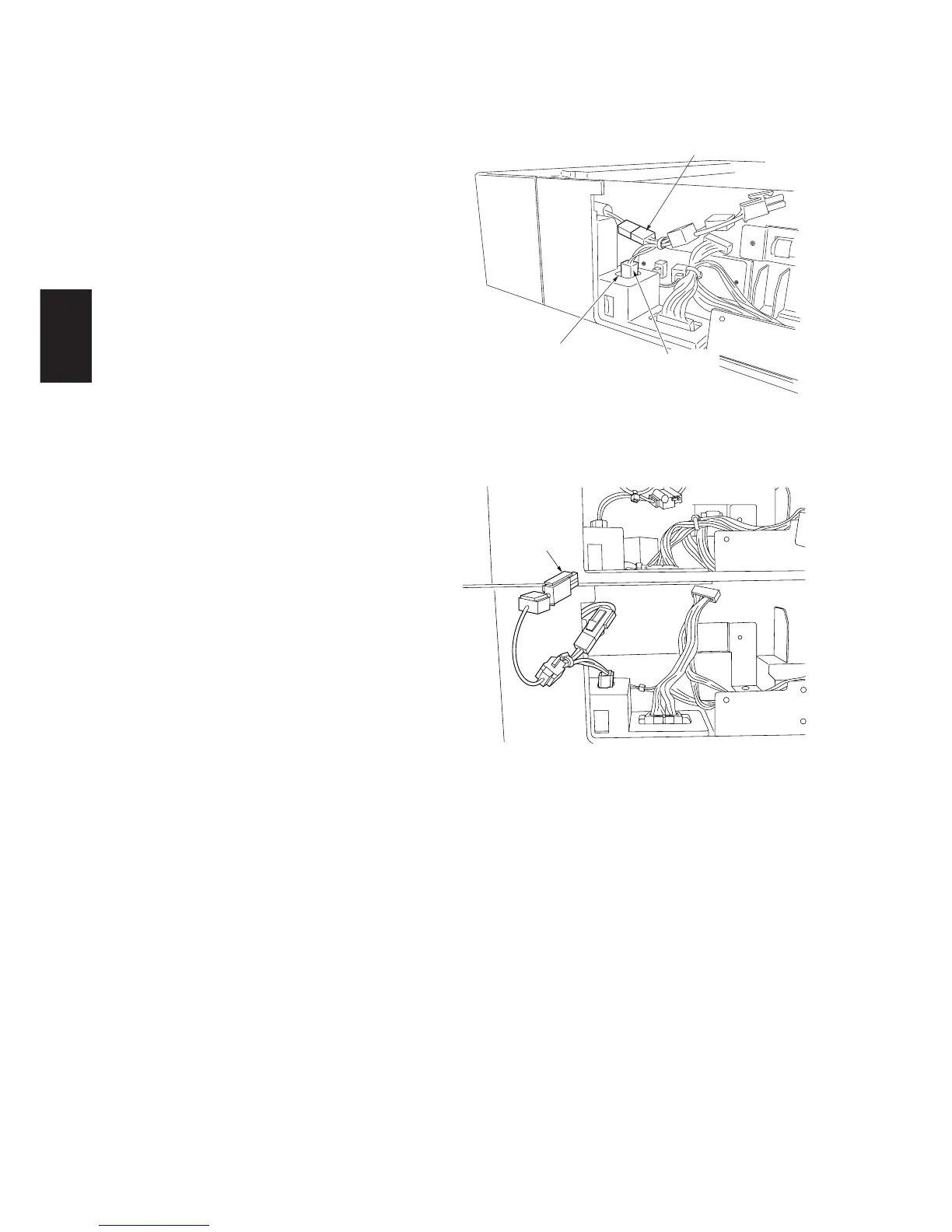

Figure 1-3-27
Figure 1-3-28
7. Insert one of the 2-pin receptacles on the heater wire
into the opening in the frame and connect the other
2-pin receptacle to the drawer heater cable.
8. Refit the drawer.
9. Install the optional drawer to the copier.
10. Remove the jumper connector from the heater wire
on the copier or the above optional drawer and
connect the 2-pin connector on the heater wire in its
place.
11. Refit the rear cover of the optional drawer.
2-pin receptacle
2-pin receptacle
Opening
2-pin
connector
