Utax CD 1020 User Manual

2AV/X
1-6-18
1-6
• 15 cpm
Start
Enter maintenance mode.
Enter “051” using the numeric keys.
Yes
Yes
No
No
Press the start key.
Press the interrupt key.
Press the start key
to make a test copy.
Decrease the value using the zoom (–) key.
Setting range: –50 – +50
Initial setting: 0
Changing the value by 1 changes
the amount of slack by 0.32 mm.
The greater the value,
the larger the amount of slack;
the smaller the value, the smaller
the amount of slack.
The new setting is stored.
Select the item to be adjusted using
copy exposure adjustment keys.
Press the image mode selection key to
light the text indicator or the photo and
text indicators.
Is the leading
edge of the image missing
or varying randomly (copy
example 1)?
Is the copy
paper Z-folded (copy
example 2)?
Increase the value using the zoom (+) key.
Press the start key.
End
Press the stop/clear key to
exit maintenance mode.
● Image mode
selection key
Text indicator
is on
● Copy exposure
adjustment keys
Setting 1 : Upper drawer
2 : Bypass tray
3 : Lower drawer (option)
: Amount of slack at the
paper registration roller
Text
● Image mode
selection key
Photo and Text
indicators are on
● Copy exposure
adjustment keys
Setting 1 : Optional drawer 1
2 : Optional drawer 2
: Amount of slack at
the feed roller
Text
Original Copy
example 1
Copy
example 2

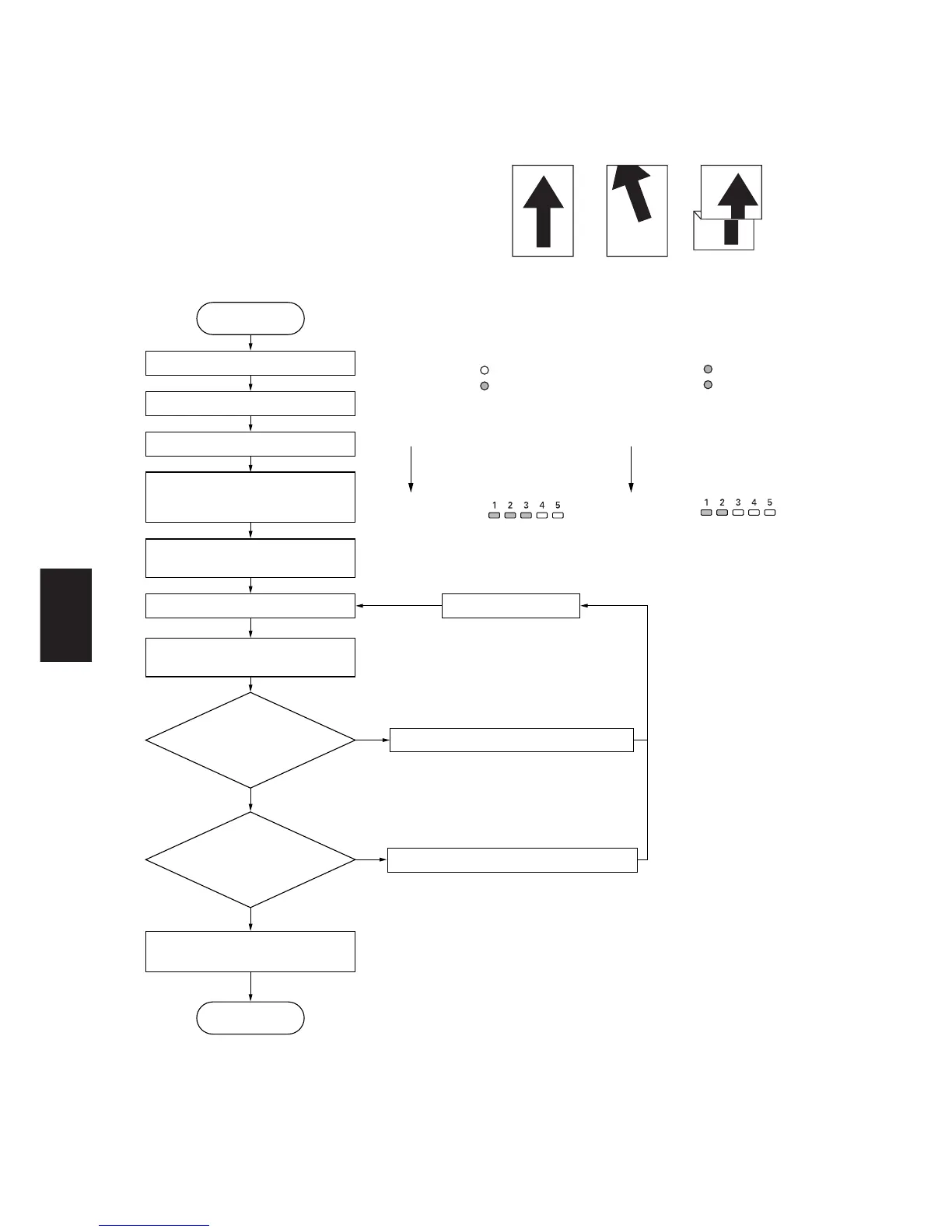

Figure 1-6-22b
